Compatibility and Application

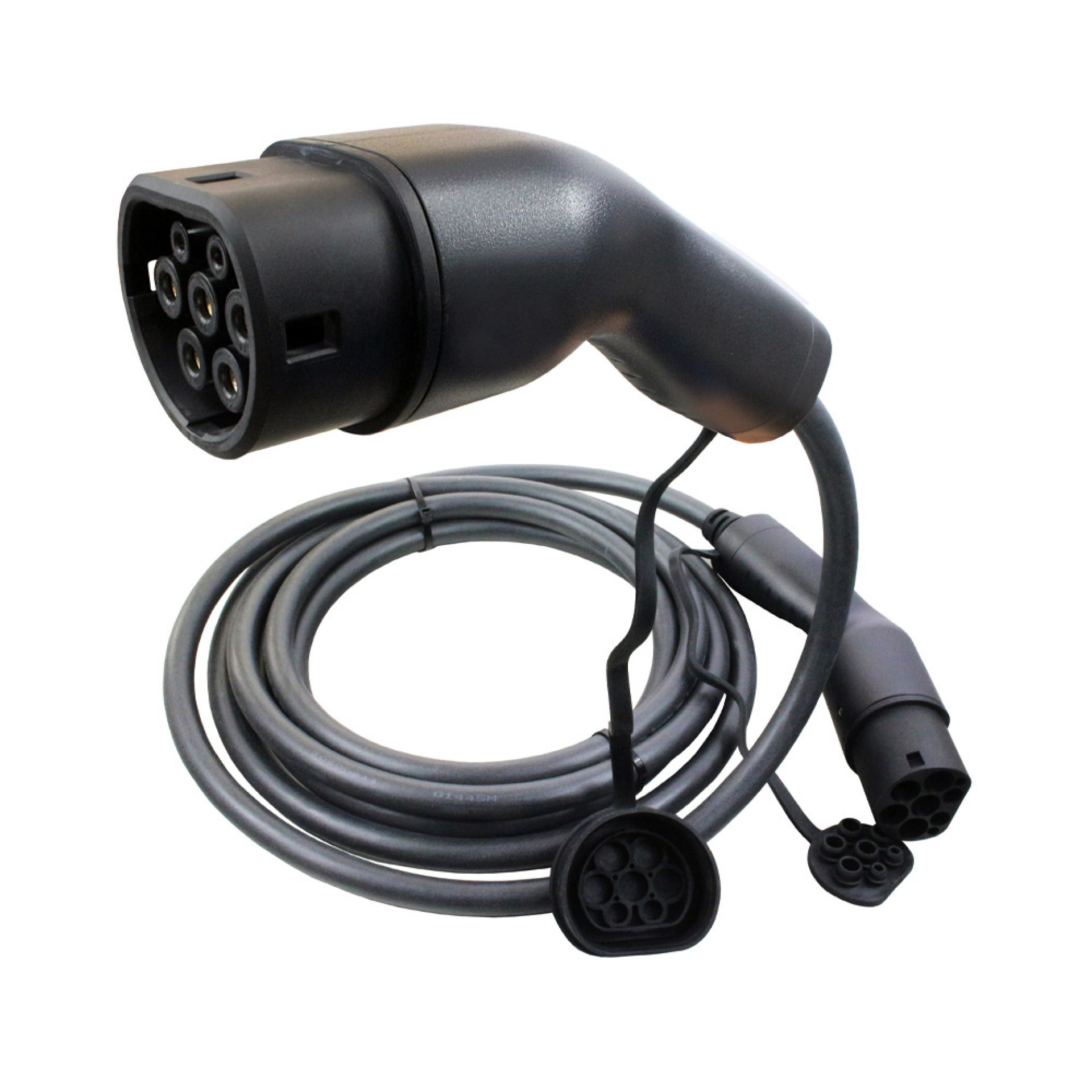

This EV charging cable from HIGH TECH PARTS is designed for a wide range of electric cars and plug-in hybrids with a Type 2 connection. Thanks to the universal 7-pin connector, this cable is suitable for almost any vehicle with a Type 2 port.

Technical Specifications

• Connector type: Type 2 to Type 2 (charging station)
• Phase: 1-phase
• Current: 32A
• Maximum charging capacity: 7.3 kW
• Voltage: 230V
• Cable length: 6 meters
• Cable cross-section: 3x6.0mm² + 1x0.75mm²
• Standard: IEC 62196
• Charging mode: AC mode

Durability and Safety

The robust construction of this charging cable guarantees a long lifespan and reliable performance. The cable is water and dust resistant, with an IP54 protection rating for the plugs and IP67 for the housing. This makes the cable suitable for use in various weather conditions.

Ease of Use

With a length of 6 meters, this cable offers enough flexibility to comfortably connect your car to charging stations, both at home and on the road. The ergonomically designed plugs ensure a simple and safe connection.

Material and Dimensions

• Plug dimensions: 221x63mm
• Color: Black
• Material: PBT, Polycarbonate, PA66, brass

Temperature Range

The cable operates optimally within a temperature range of -30°C to +50°C, making it suitable for use in various climates.

Fire Safety

The charging cable meets the UL 94V-0 fire safety class, providing extra assurance while charging your vehicle.
