Advanced welding technology for professional results

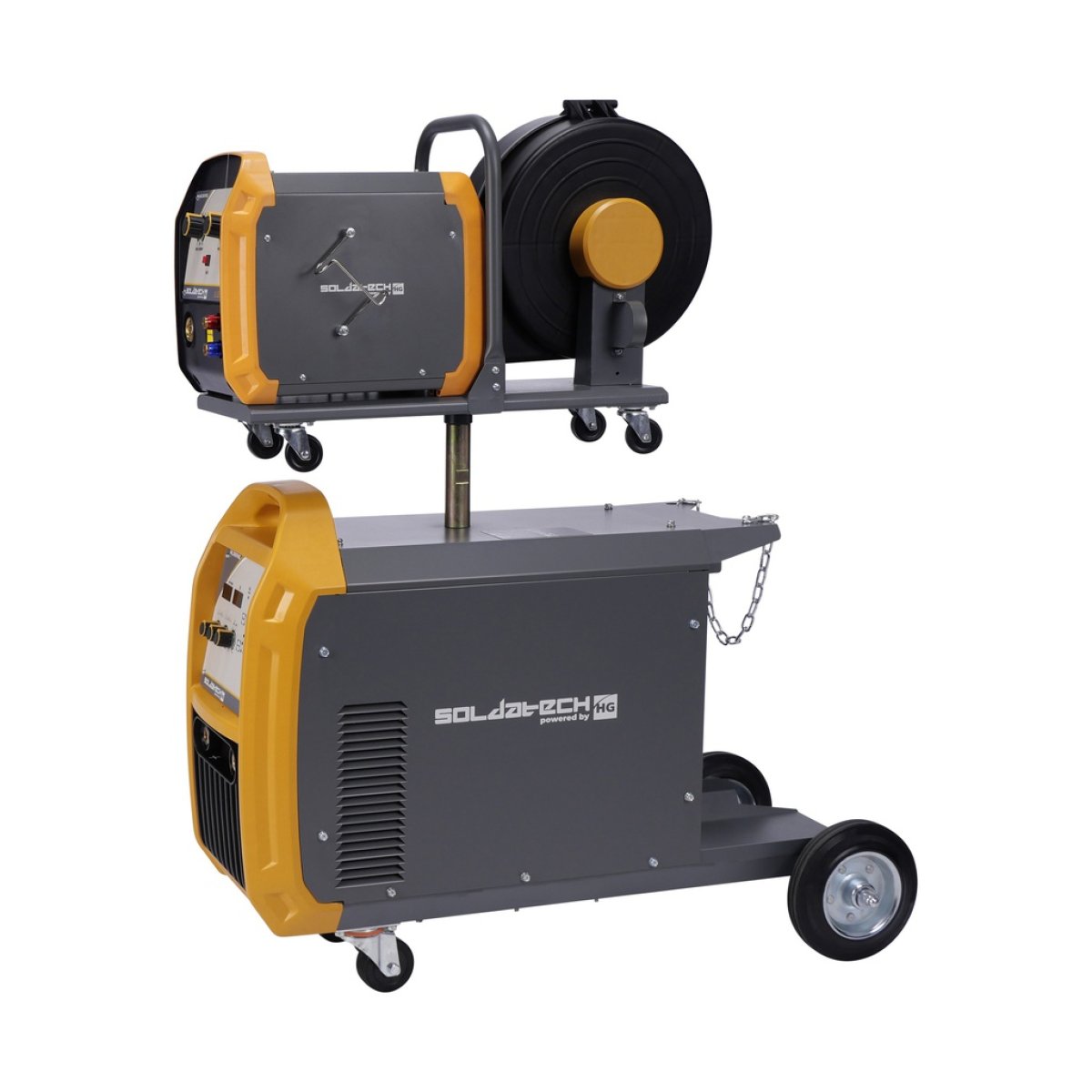

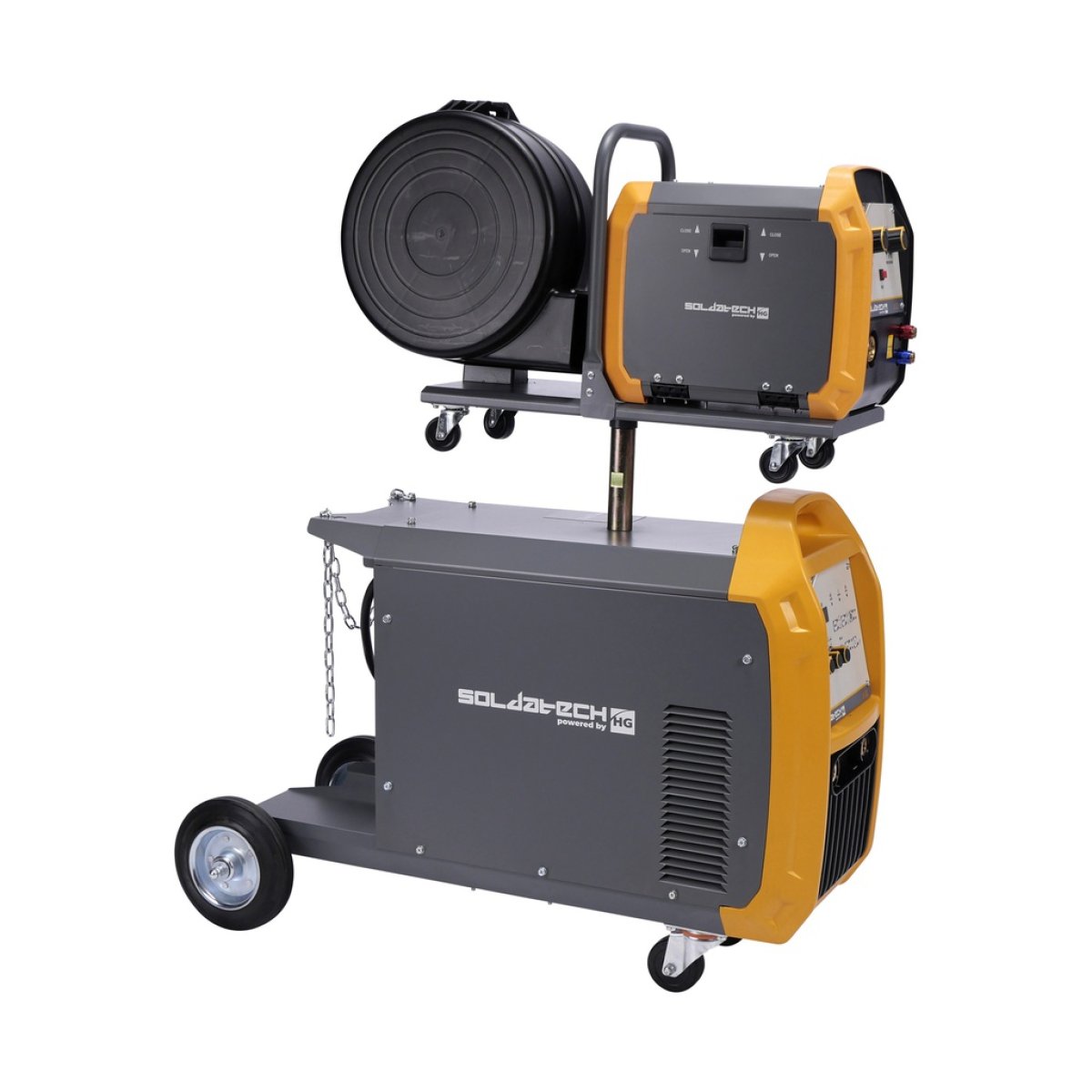

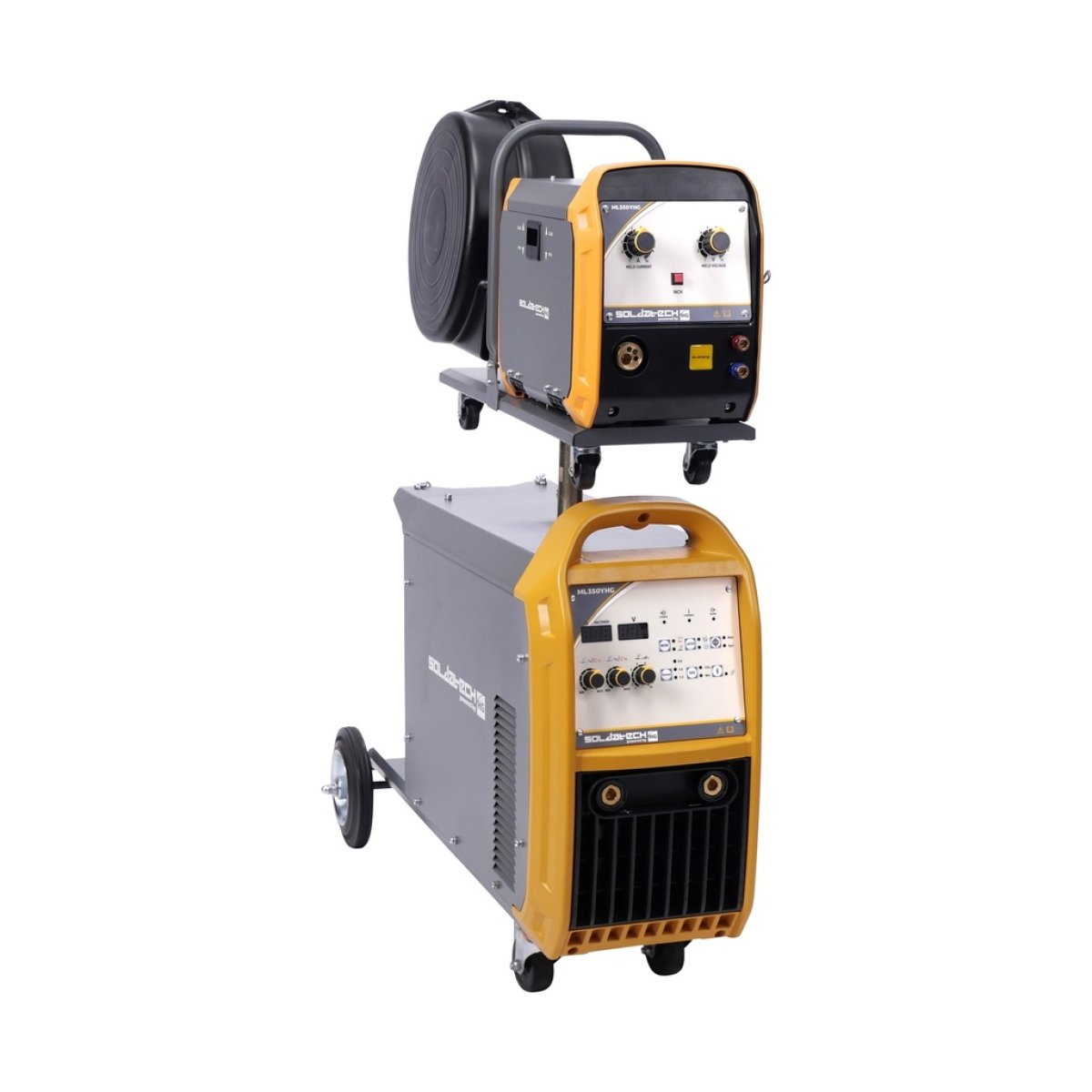

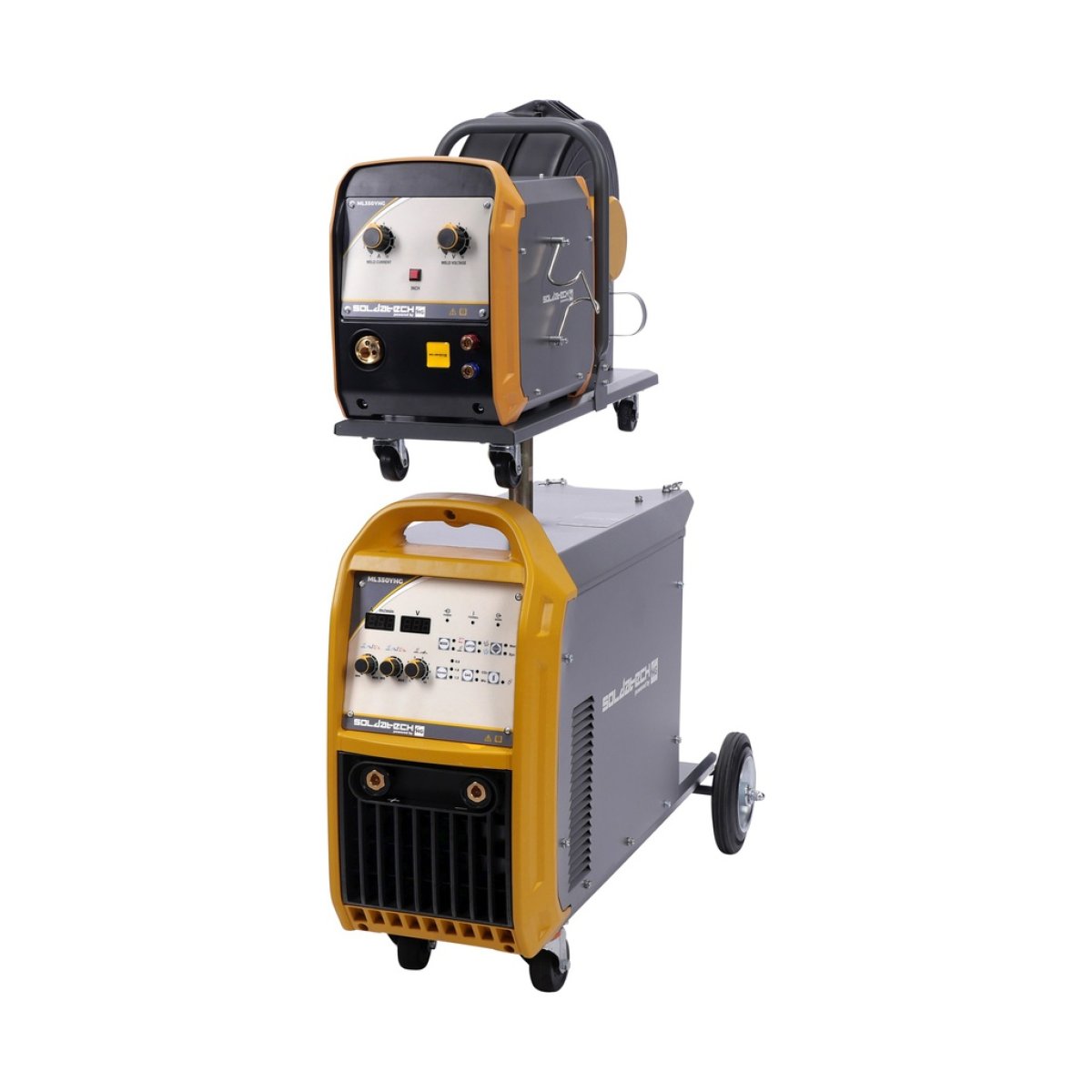

The SOLDATECH Mig Mag welding machine 350A is equipped with modern IGBT inverter technology, ensuring a stable and powerful welding current. This allows you to perform various welding processes, such as MIG welding and electrode welding, with precision.

Synergic programs for various materials

Thanks to the pre-programmed synergic settings, you can easily select the right parameters for different materials. This increases efficiency and ensures consistent welding results, regardless of the type of material you are working on.

User-friendly control panel

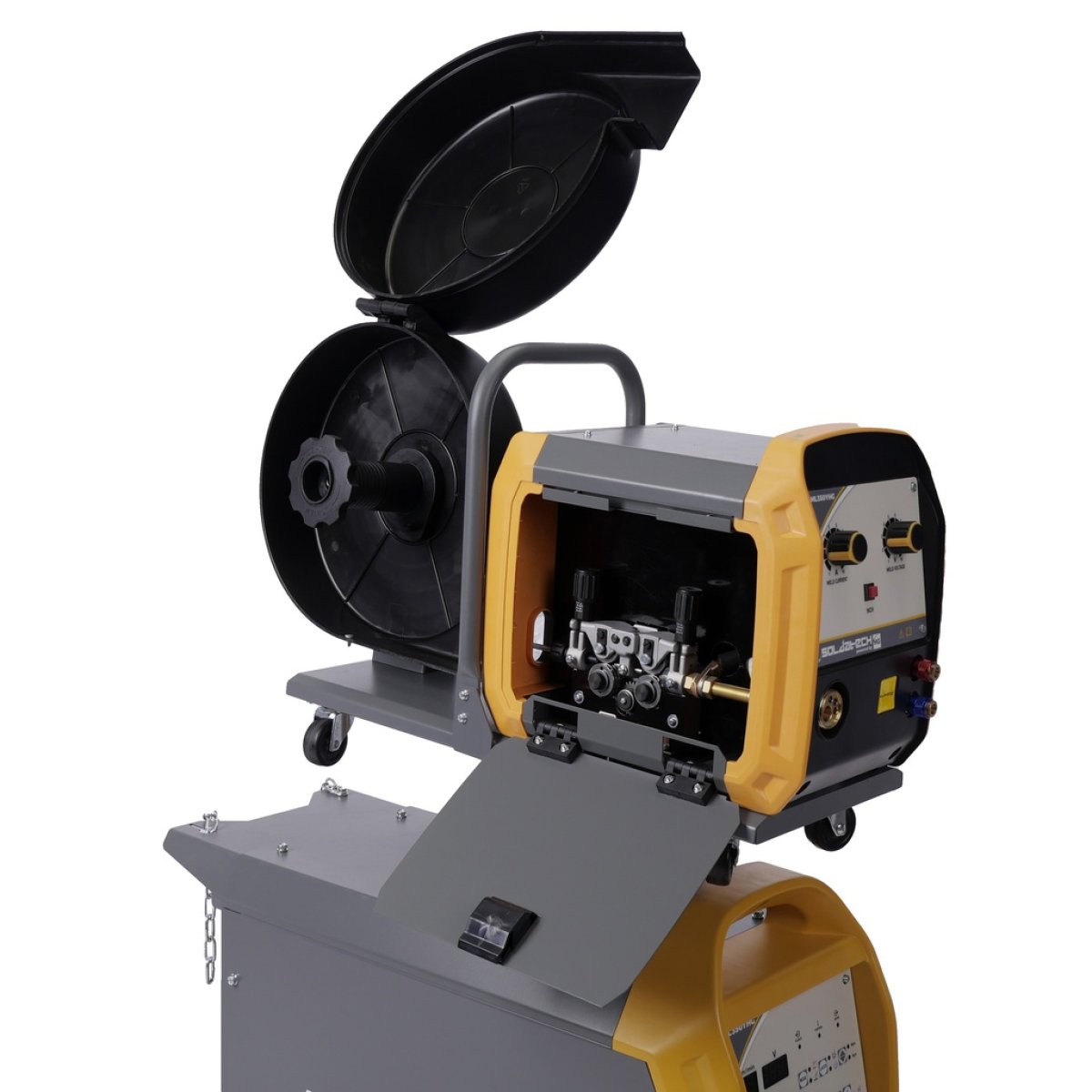

The mobile wire feed unit features an intuitive control panel where you can easily set the welding voltage and current. This gives you full control over the welding process and allows for quick and easy adjustments during work.

Hot-start and anti-stick functions

The hot-start function increases the welding current at the start, preventing the electrode from sticking to the workpiece. The anti-stick function prevents the electrode from sticking during welding, ensuring a smoother welding experience and fewer interruptions.

Complete delivery with high-quality accessories

With the ML350YHG you receive as standard:

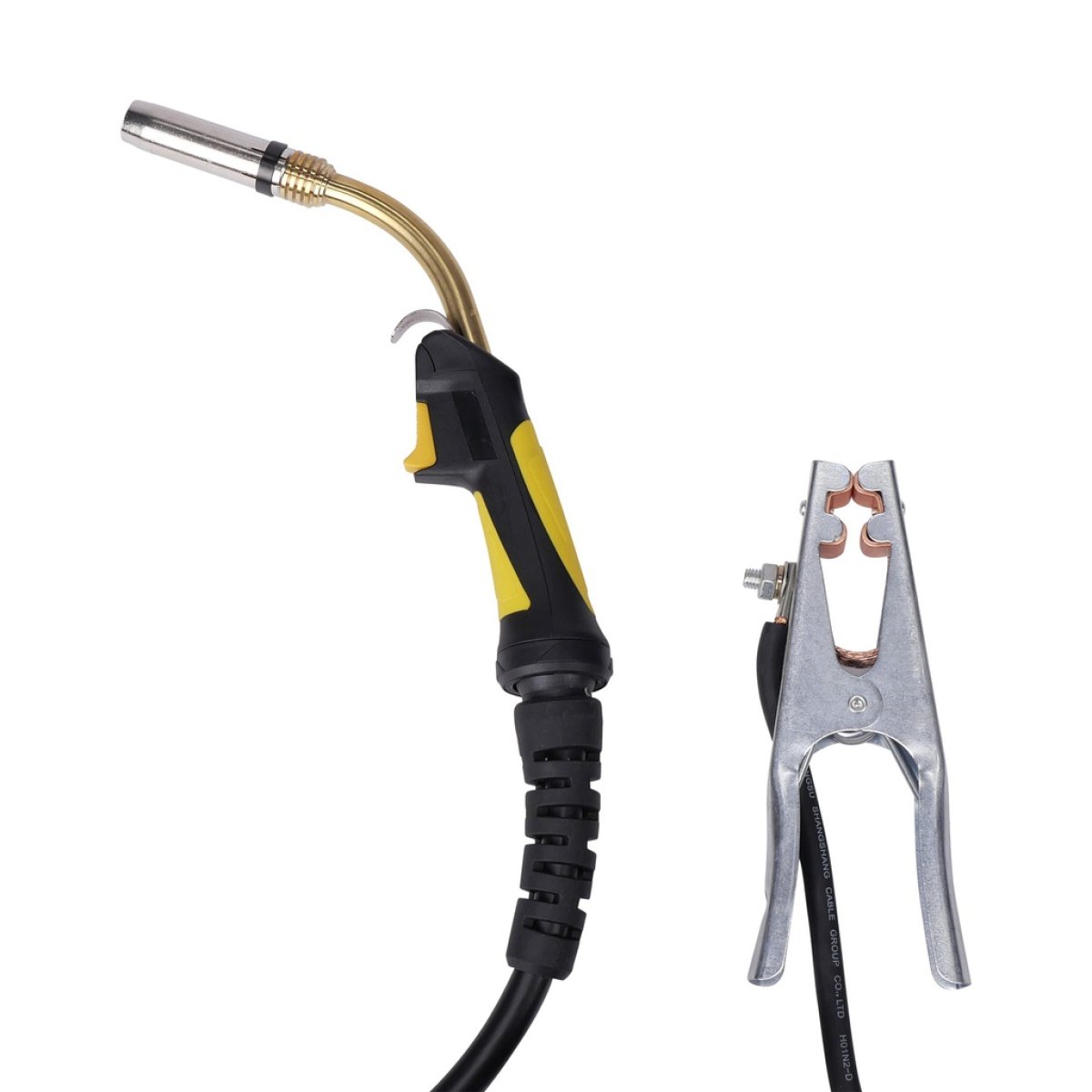

• Soldatech MLT36M4 MIG torch with euro connector and 4m cable
• Workpiece clamp with 3m 35mm² cable
• European Dinse connectors of 13mm
• Gas hose of 7m with quick coupling

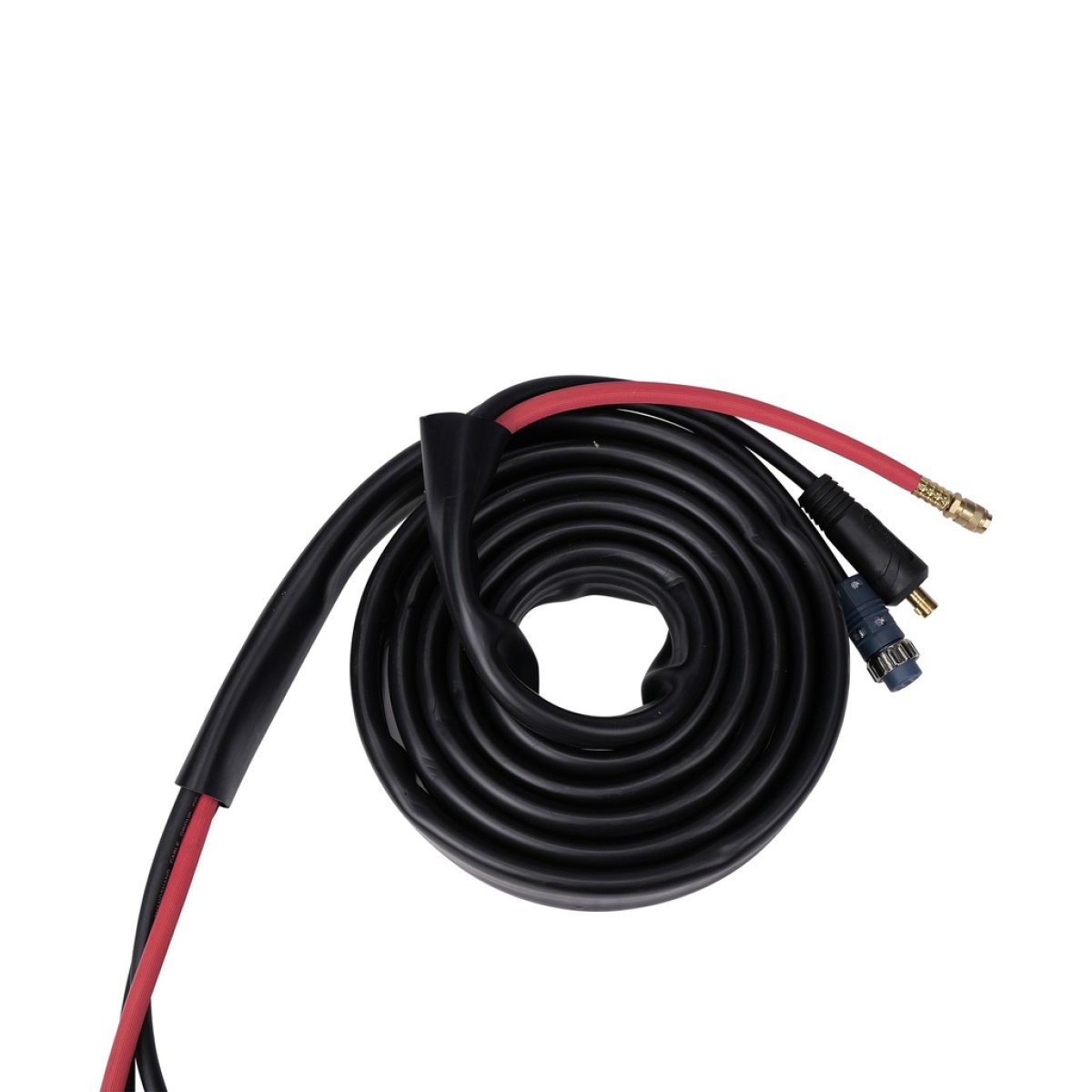

• Intermediate cable set for wire feed of 5m
• 5-pin 32A plug with 3.5m 4x4mm² cable
• 4 wire drive rollers: 2x 0.8 + 1.0 and 2x 1.2 + 1.6

Technical specifications

• Voltage: 400V - 3 phase
• Frequency: 50/60Hz
• Fuse: 32A B-type
• Input power: 16.8kVA
• Open circuit voltage: 73V
• Duty cycle at 20°C: 100% - 350A
• Duty cycle at 40°C: 60% - 350A
• Welding current range MIG/MAG: 40 - 350A
• Welding current range MMA: 40 - 350A
• Weldable wire: 0.8 / 1.0 / 1.2 / 1.6 mm
• Protection class: IP21S
• Dimensions: 1000 x 420 x 1200 mm
• Weight: 69 kg

Ideal for various applications

This welding machine is suitable for welding stainless steel, carbon steel, low-alloy steel, and aluminum (without pulse). Its versatility and power make it an excellent choice for both professional welders and demanding DIY enthusiasts.
