Versatile welding options

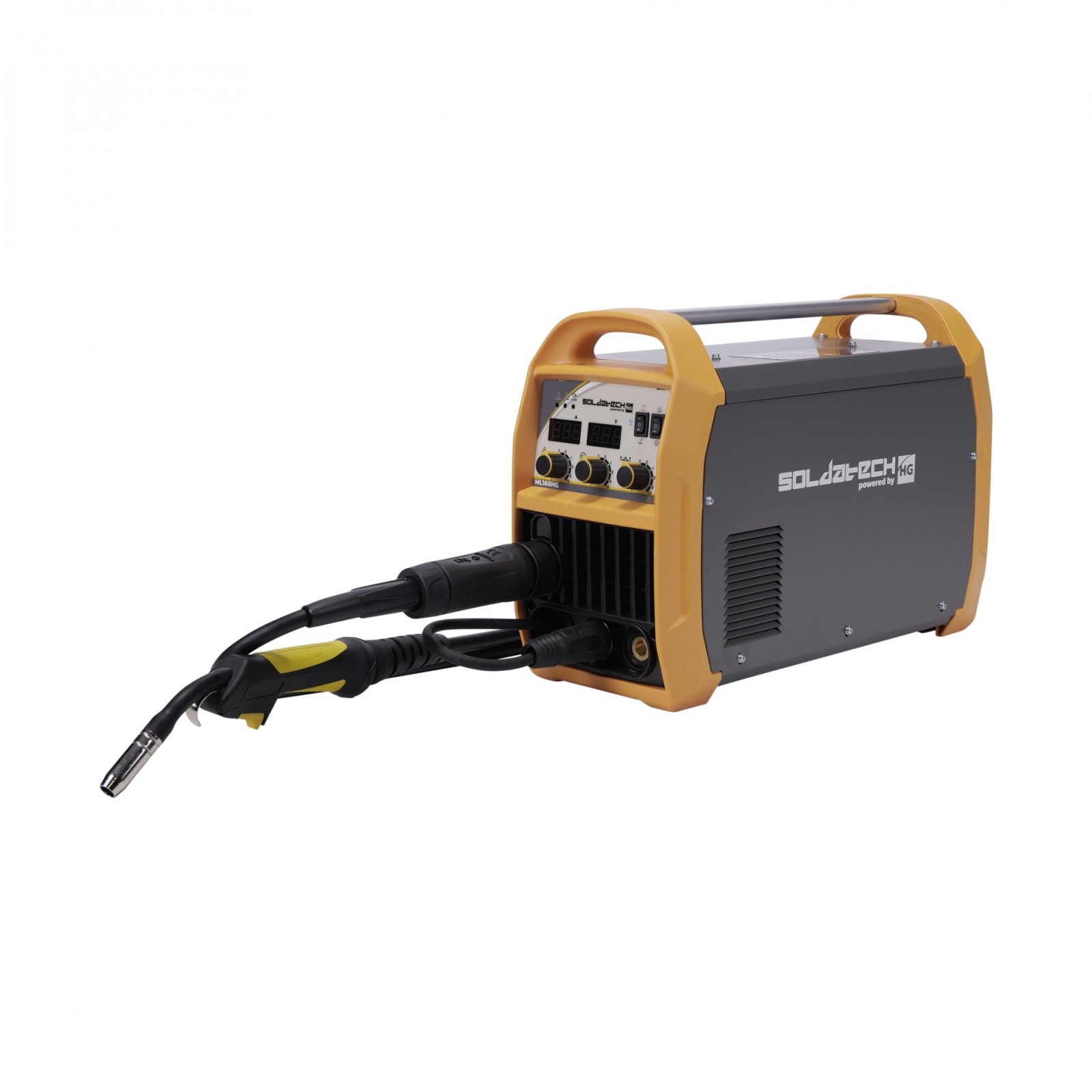

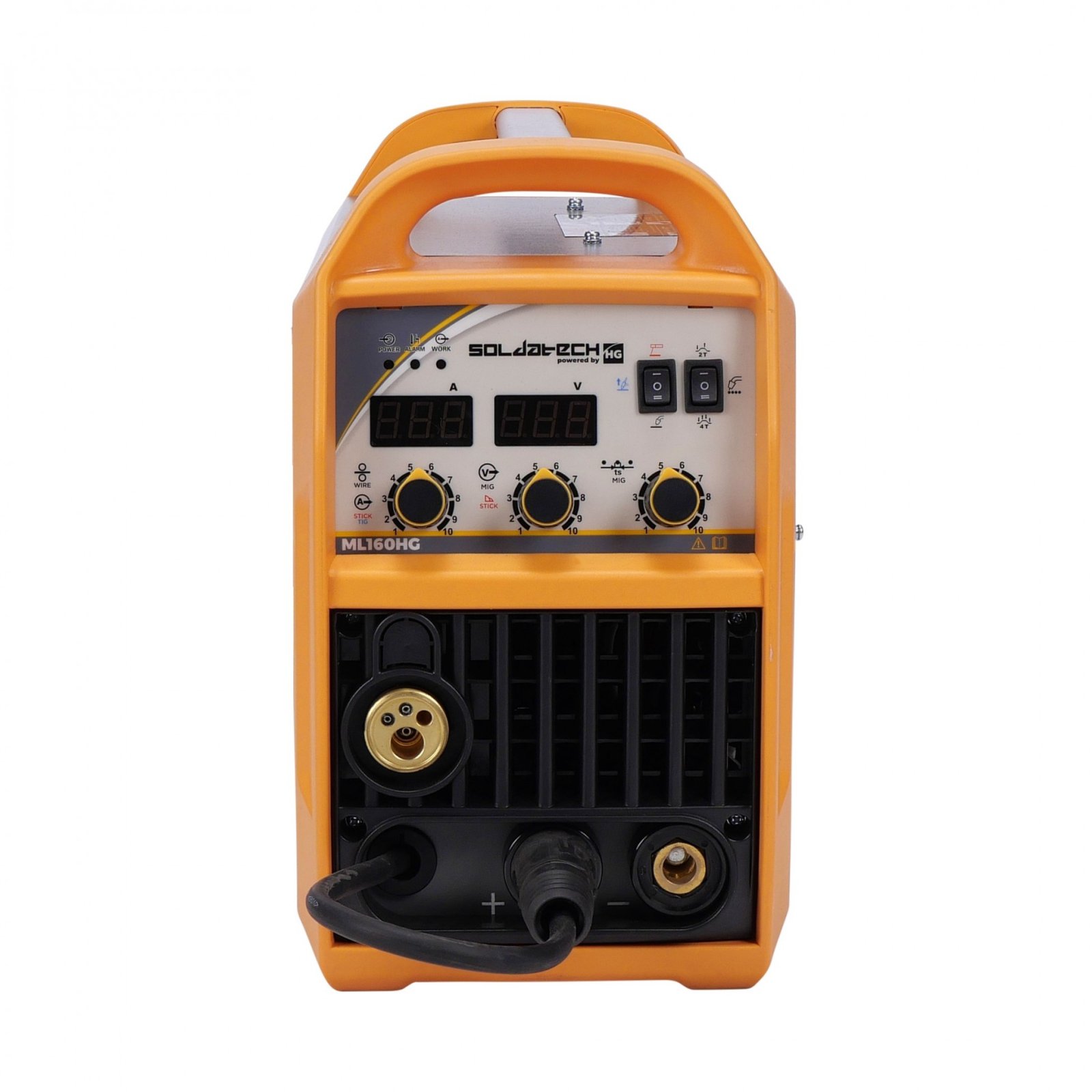

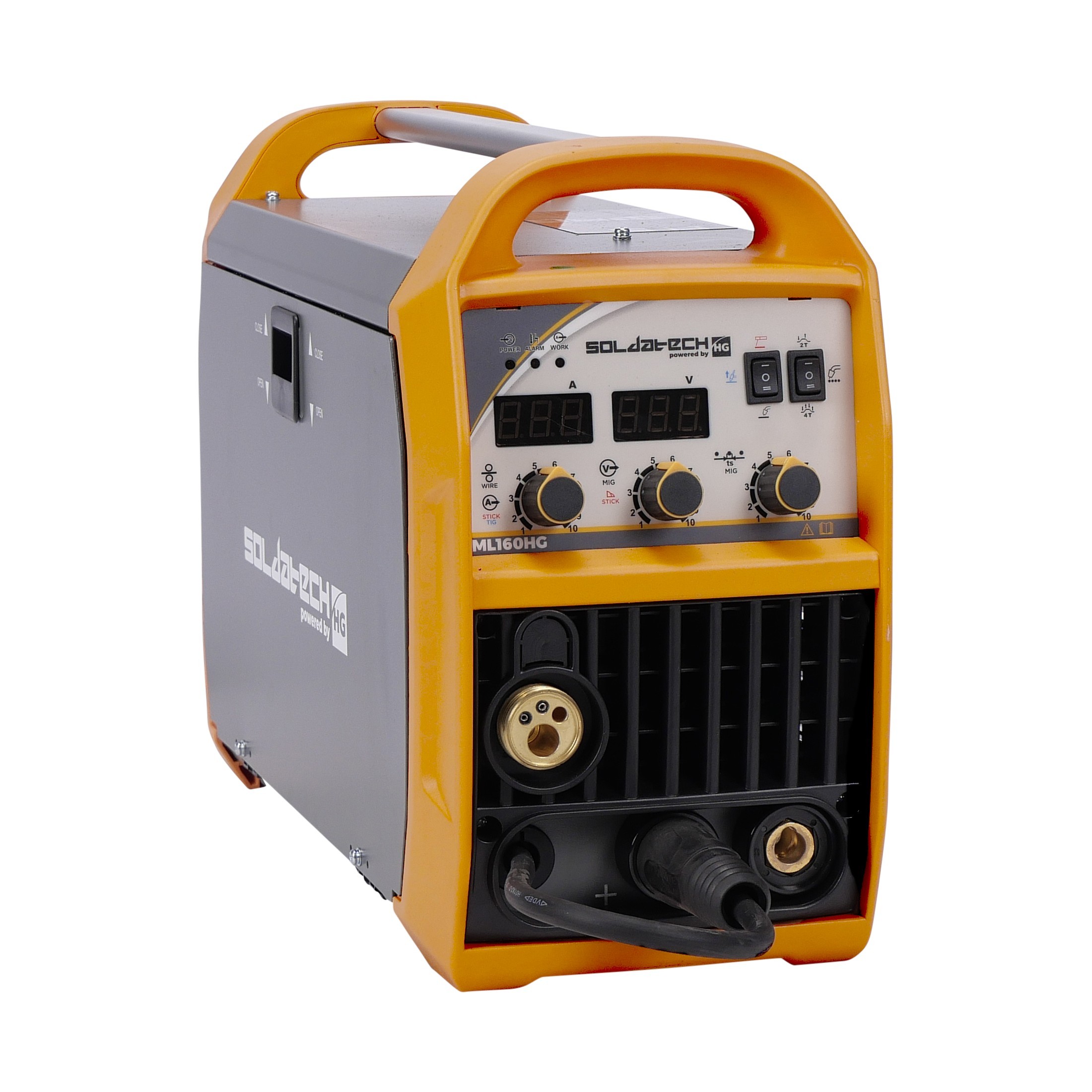

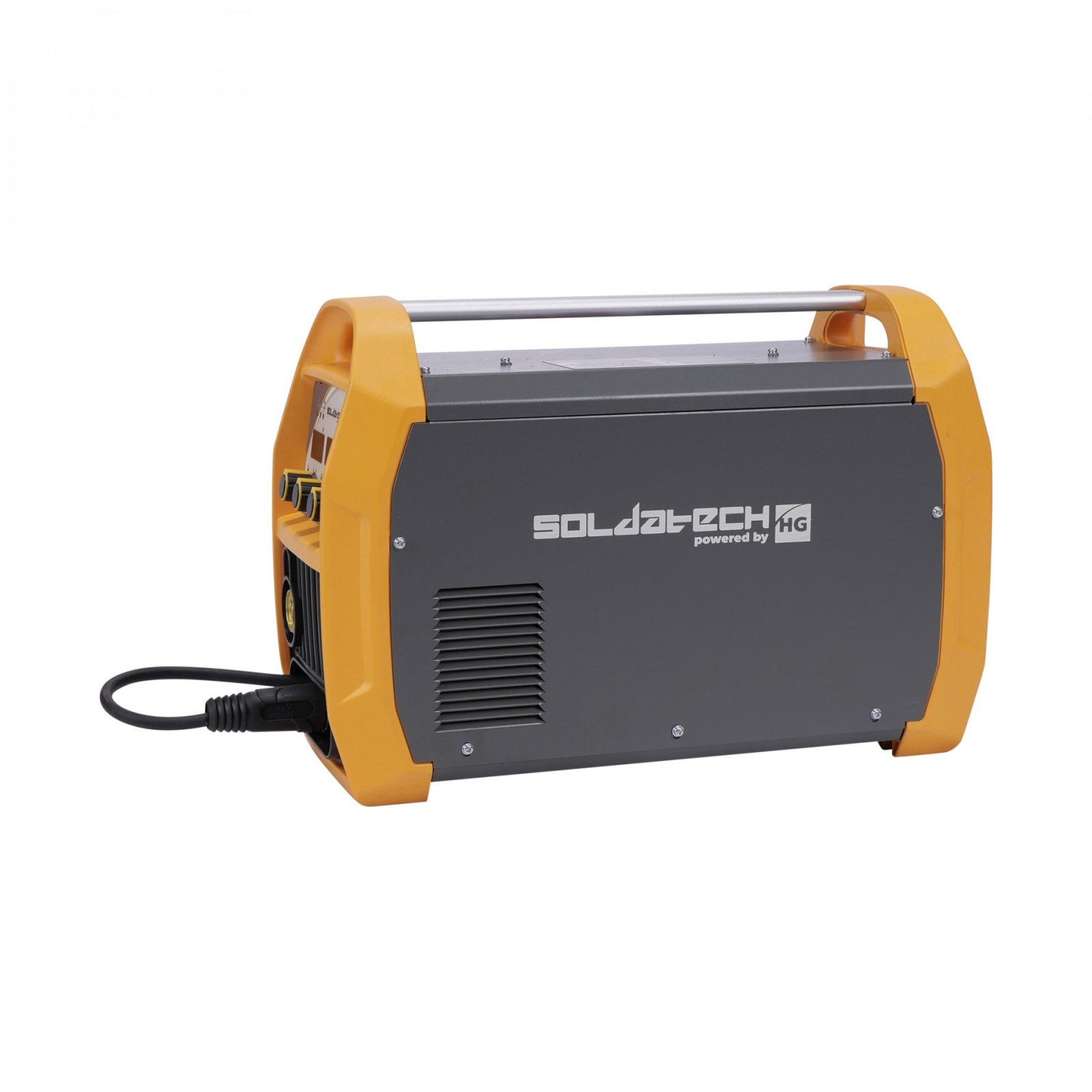

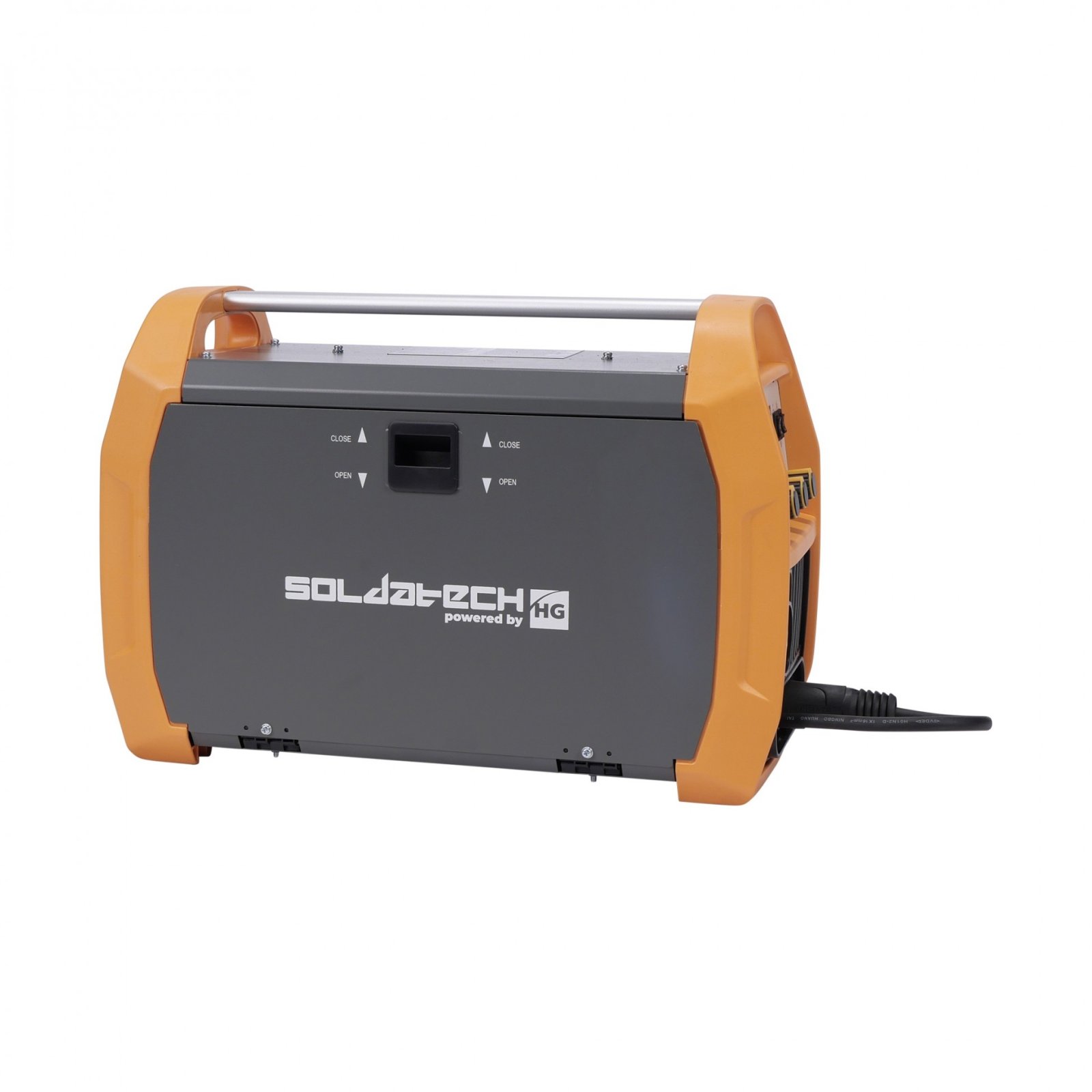

With the Soldatech Mig Mag welding machine 160A 230V, you have a portable and versatile device suitable for various welding processes, including MIG welding, Lift-TIG, and electrode welding. Thanks to the automatic adjustment of the wire speed to the set current, you always achieve professional welding results.

Advanced IGBT inverter technology

This welding machine uses modern IGBT inverter technology, resulting in durable performance with more power and a high duty cycle. The thermal protection combined with a built-in fan prevents overheating and guarantees long-lasting, high-quality welding performance.

User-friendly features

• Hot-start/anti-stick function : Quickly increases the welding current to prevent the electrode from sticking to the workpiece during ARC welding.
• Stepless current control : Allows precise adjustments for optimal welding results.

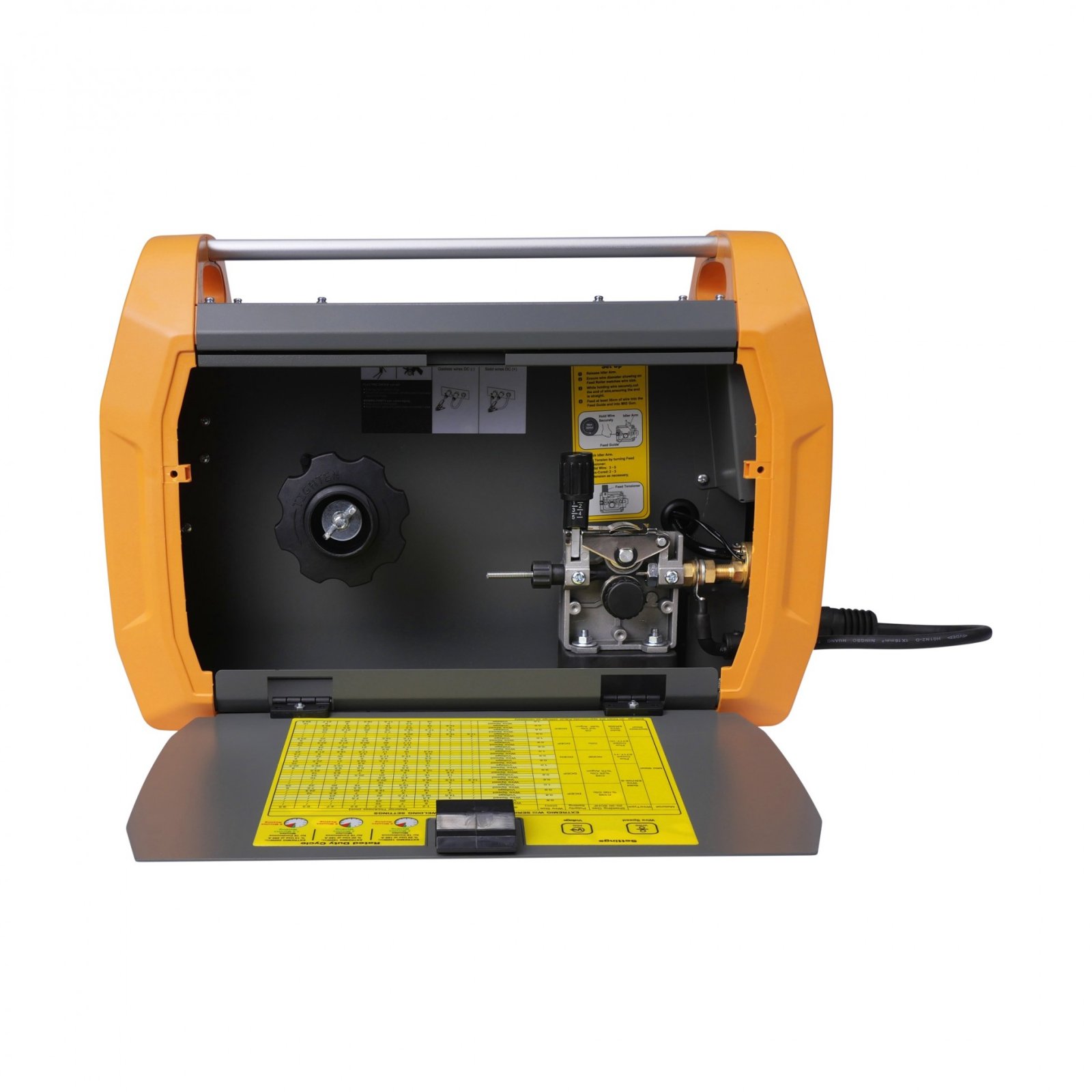

• High-quality aluminum wire feed : Ensures stable and consistent wire feeding.

Suitable for various materials

This welding machine is ideal for welding:

• Stainless steel
• Carbon steel
• Low-alloy steel
• Aluminum (without pulse)

Standard included

When purchasing the Soldatech Mig Mag welding machine 160A, you receive:

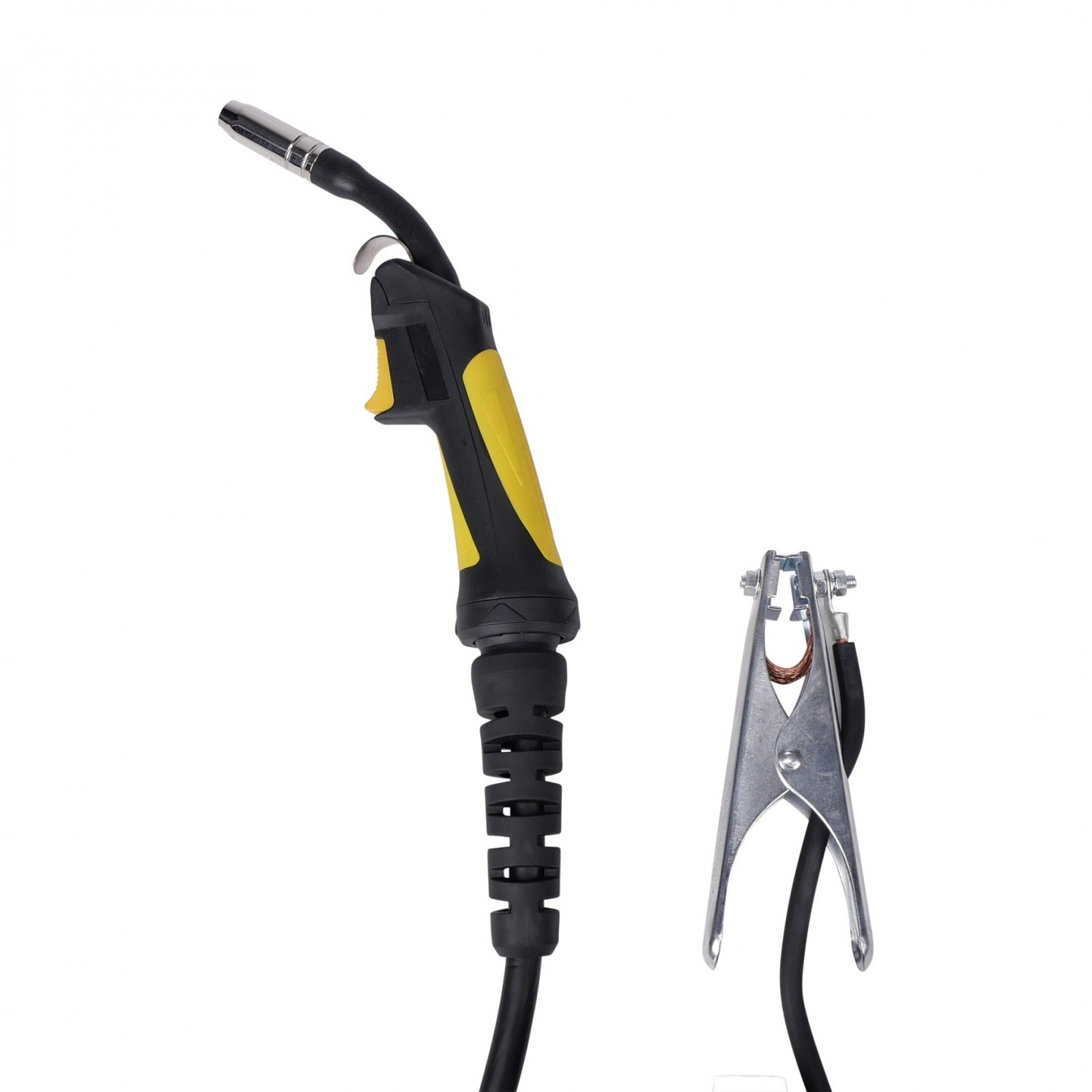

• Soldatech MLT15M3 MIG torch with euro connector and 3m cable
• Twistlock electrode holder with 3m 16mm² cable
• Workpiece clamp with 2m 16mm² cable
• Standard 9mm Dinse cable connector
• 3m gas hose with hose clamps
• Heat-resistant cover
• Molded plug with 2m 3x2.5mm² cable
• Wire drive roller: 0.8 + 1.0 mm

Technical specifications

• Voltage : 230V
• Frequency : 50/60Hz
• Input current : 28.5A
• Input power : 6.84kVA
• Starting voltage : 71V
• Duty cycle : 40% - 160A (at 20°C ambient temperature)
• Welding current range :
• MIG: 30 - 160A
• MMA: 30 - 130A
• TIG: 20 - 160A
• Weldable wire : 0.6 / 0.8 / 1.0 mm
• Protection class : IP21S
• Dimensions : 490 x 190 x 335 mm
• Weight : 10.5 kg
