Robust construction for optimal performance

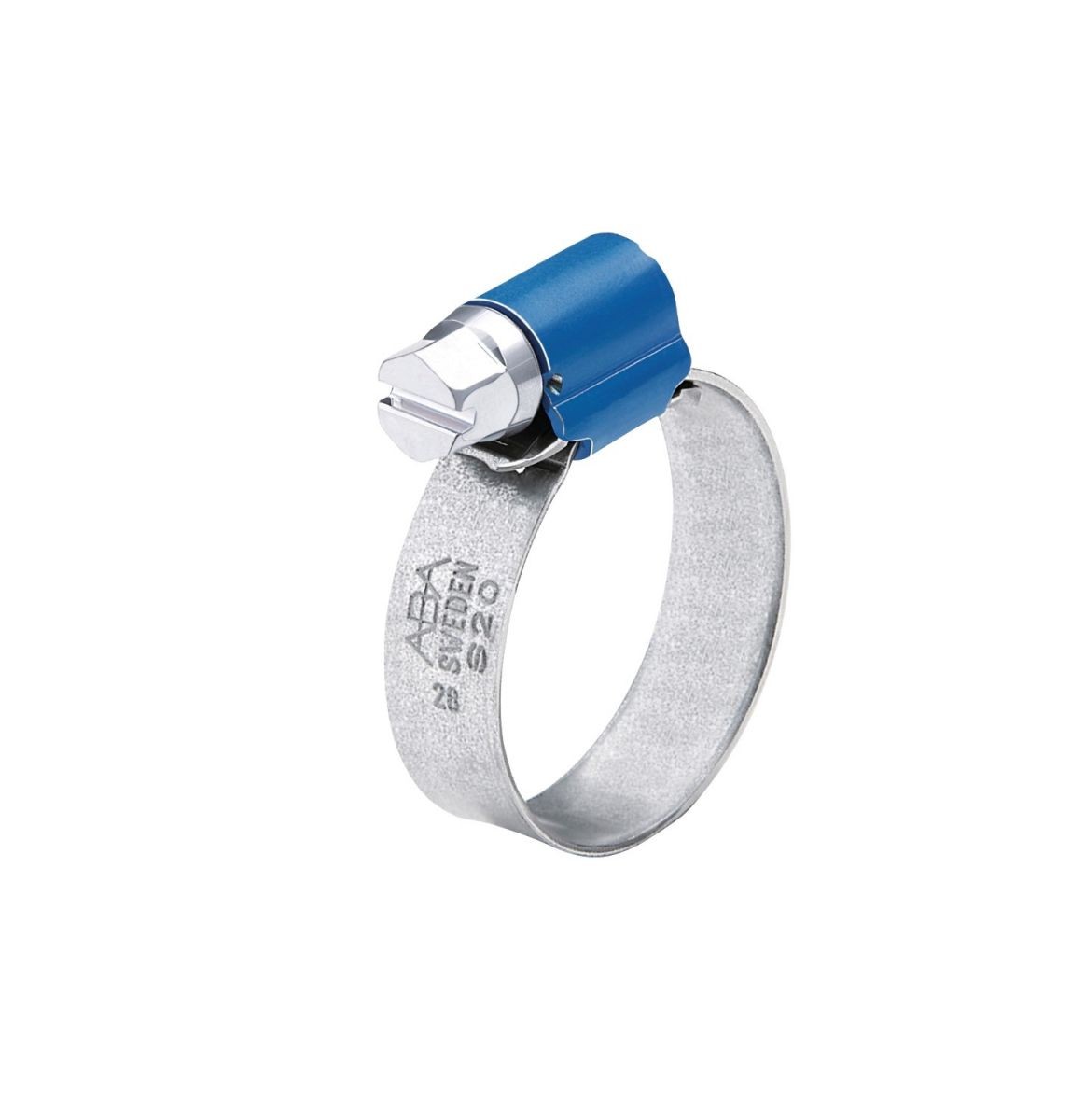

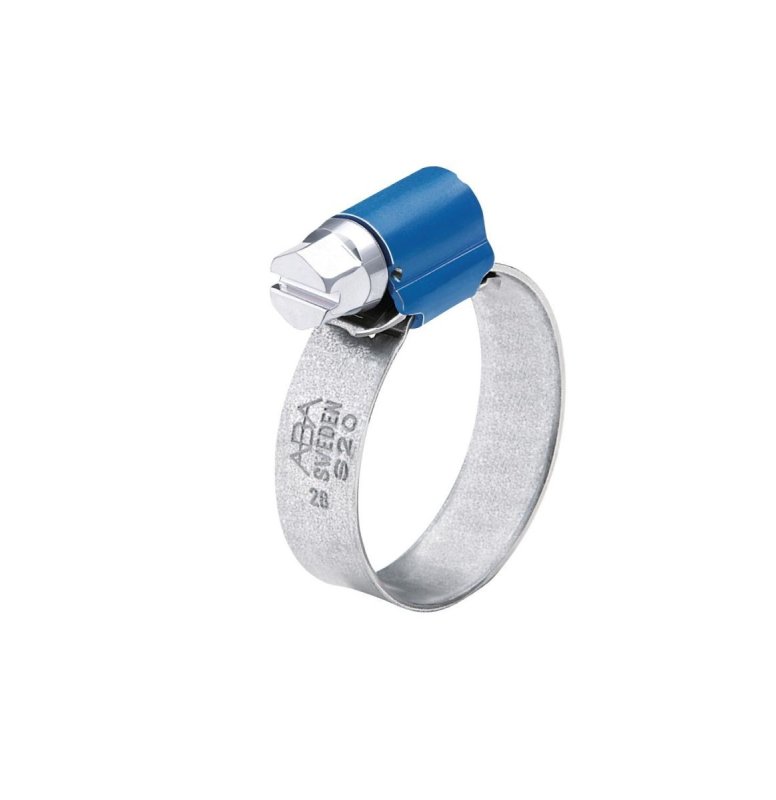

The ABA hose clamp with a band width of 12 mm and a clamping range of 32 to 44 mm is designed for a firm and reliable attachment of hoses. The one-piece pressed worm housing ensures high clamping force and high breaking torque, which is essential for demanding applications.

Protection of the hose

Thanks to the rolled band edges and the smooth underside of the clamp, damage to the hose is prevented. This design minimizes the risk of cuts and wear, extending the lifespan of both the hose and the clamp.

Material and corrosion resistance

The clamp is made from aluzinc, a material that is three times more resistant to corrosion than traditional galvanized steel. This makes the clamp suitable for use in environments where exposure to moisture and other corrosive elements occurs.

Areas of application

This hose clamp is ideal for various applications, including:

• Machine construction
• Chemical industry
• Irrigation systems
• Railway sector
• Agricultural machinery
• Maritime sector

Technical specifications

• Clamping range: 32-44 mm
• Band width: 12 mm
• Material: Aluzinc
• Recommended tightening torque: 5-6 Nm

Easy installation

The clamp is equipped with a hex screw with a slot, ensuring easy and quick installation. The design guarantees even pressure distribution over the hose, contributing to a secure and leak-free connection.
