Advanced diagnostics for electric vehicles

The AUTEL MaxiSys MS909EV is specially designed for the complex needs of electric and hybrid cars. With the dedicated EVDiag Box, you can perform precise analyses of high-voltage systems, including reading and clearing fault codes and viewing live data. (autel.us)

Extensive vehicle coverage

This device supports a wide range of American, European, and Asian vehicles, whether electric, hybrid, or with combustion engines. This makes it a versatile tool for any modern workshop. (autel.us)

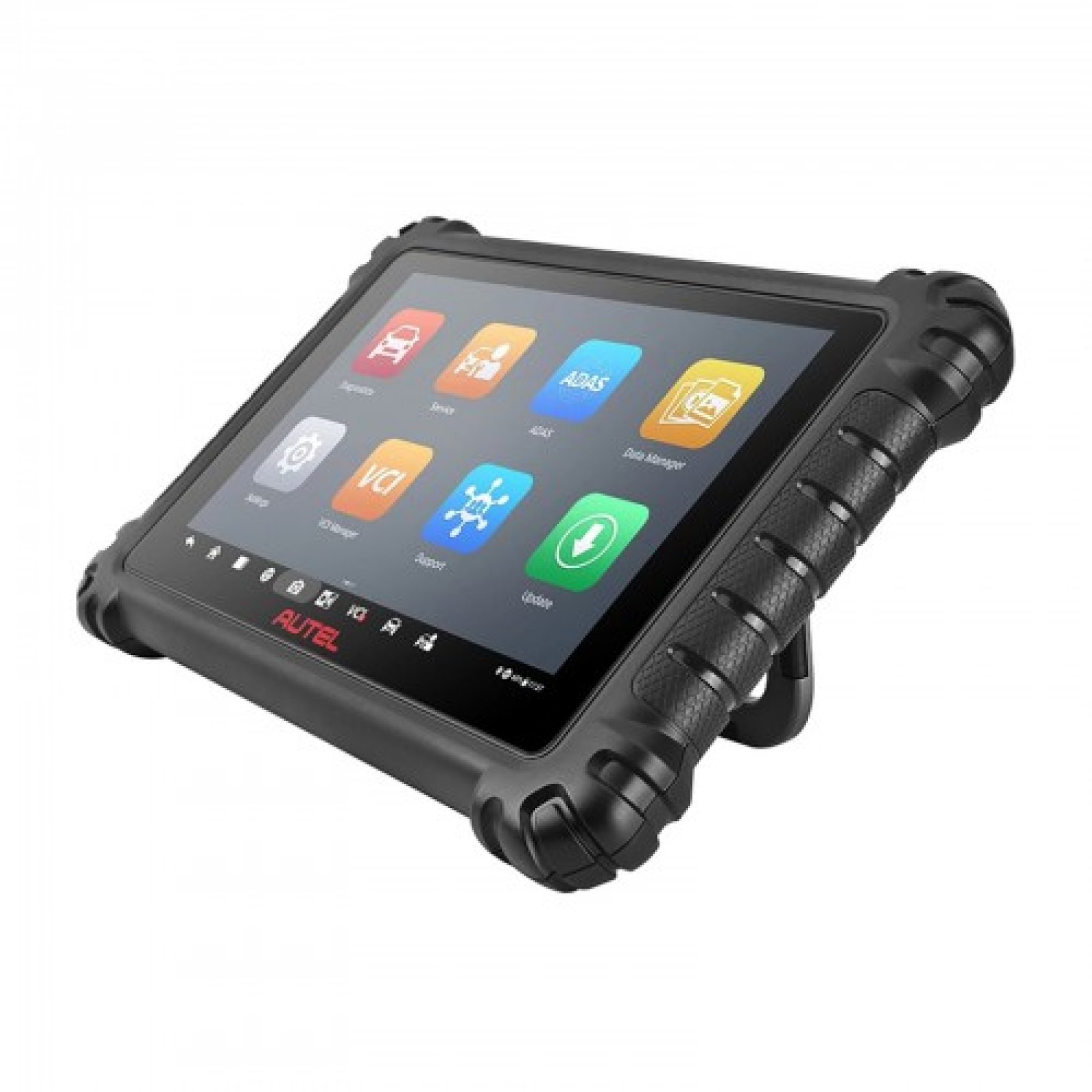

User-friendly interface

Thanks to the 9.7-inch touchscreen with a resolution of 1536 x 2048 pixels, you can easily navigate through the diagnostic menus. The bright and responsive screen ensures an intuitive user experience. (autel.us)

Powerful performance

Powered by a Qualcomm 660 octa-core processor and equipped with 4GB RAM and 128GB internal memory, the MS909EV offers fast and efficient operation, essential for quick diagnostics. (autel.us)

Innovative communication

The MaxiFlash VCI supports the J2534 standard and provides fast dual Wi-Fi connections with the vehicle and the network. This guarantees smooth communication and reliable connections with both conventional and the latest vehicles. (autel.us)

Comprehensive battery diagnostics

With the MS909EV, you can perform detailed analyses of the State of Charge and State of Health of battery packs. This provides an accurate assessment of battery condition, essential for the maintenance of electric vehicles. (autel.us)

Efficient data management

The device offers automatic system and software updates via the internet, interactive data logging for direct support, and a cloud-based data manager to store customer and vehicle data, scanner data, and technician notes. (autel.us)

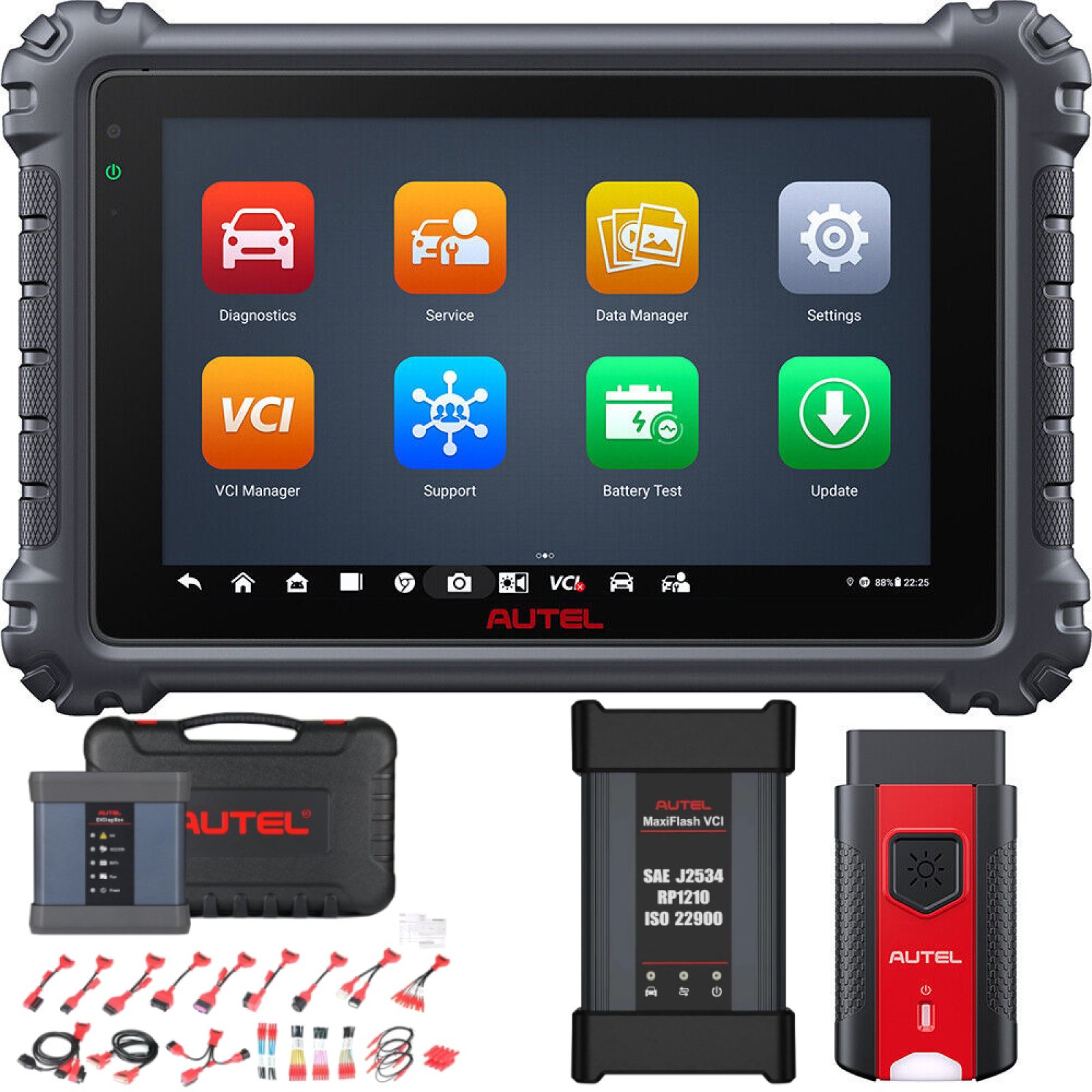

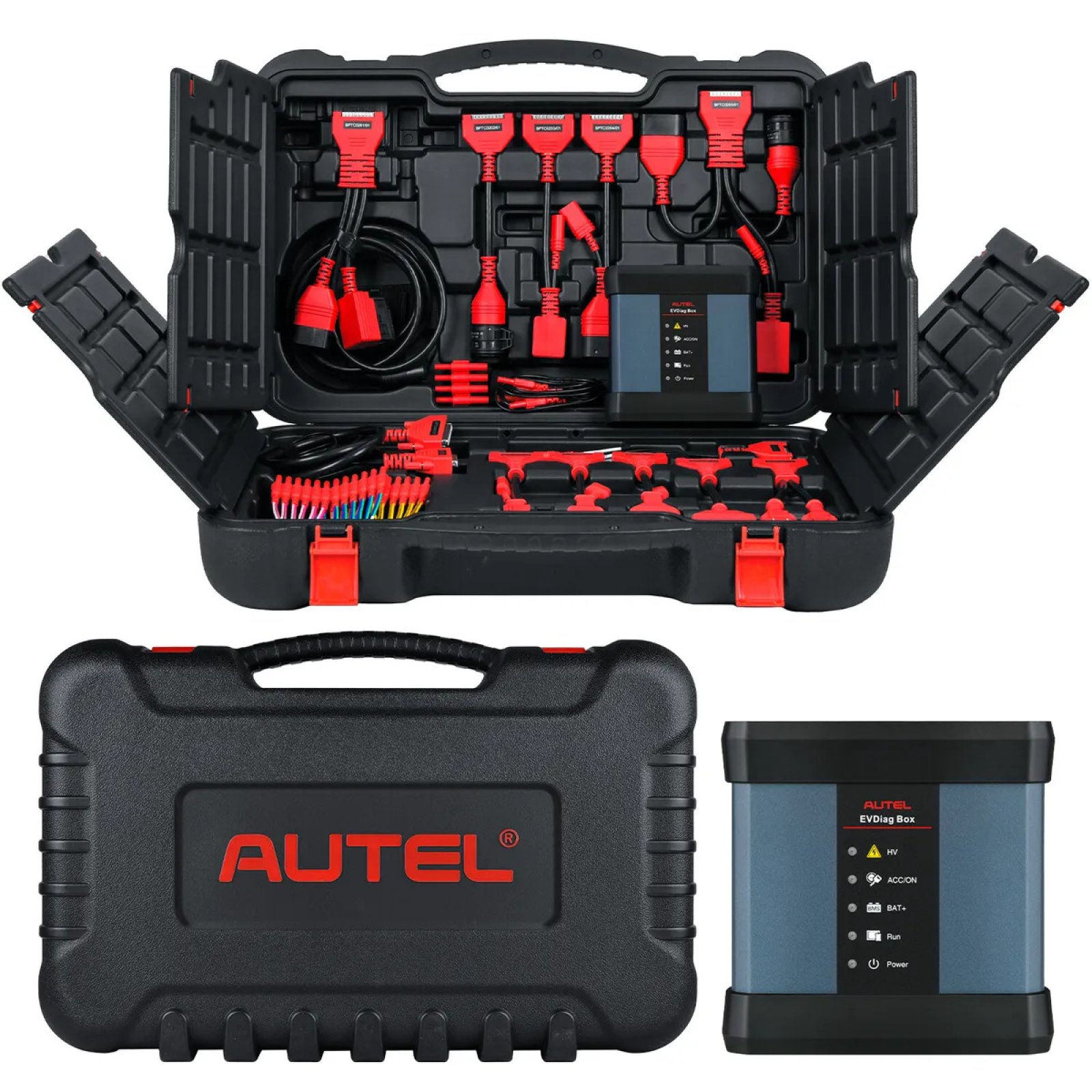

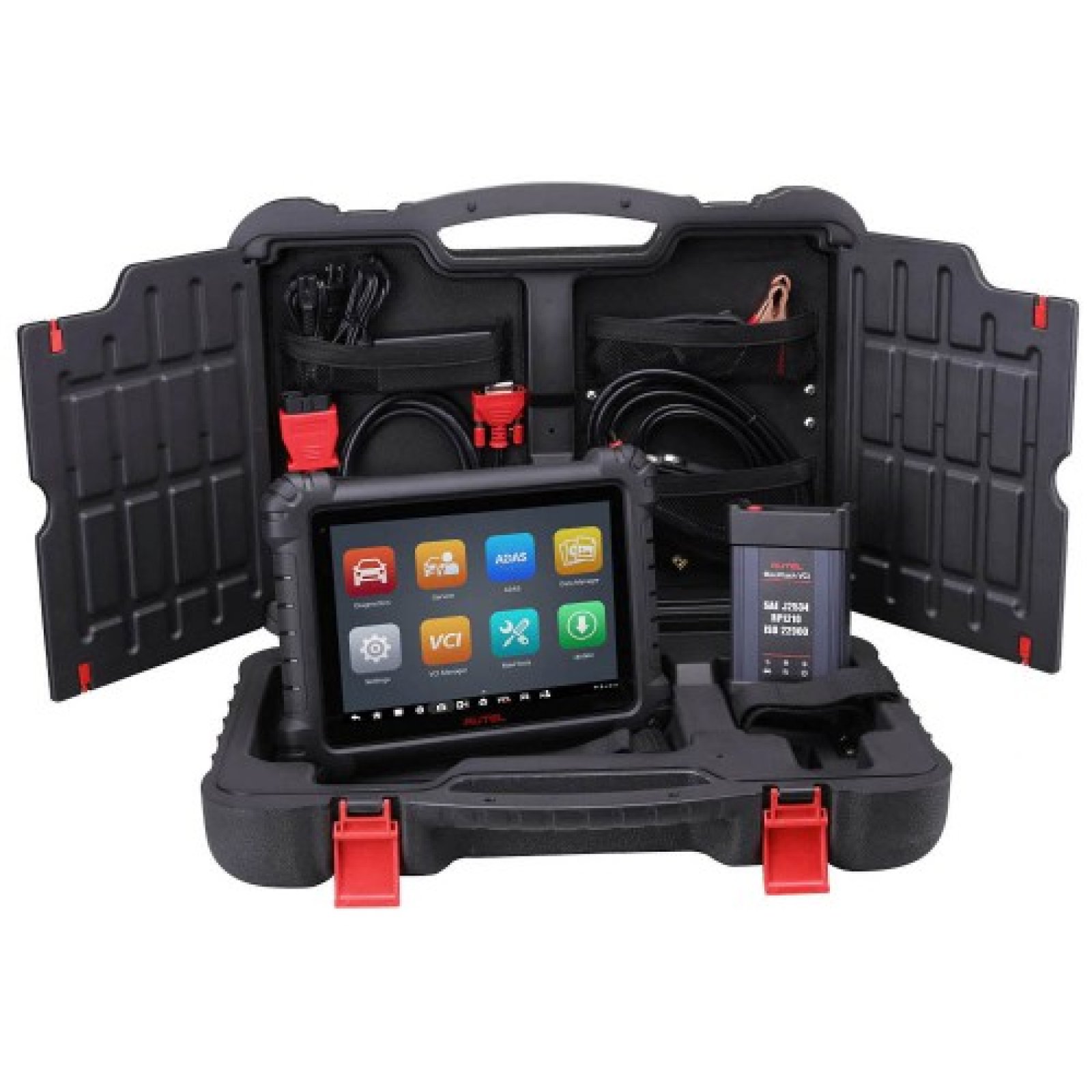

Included accessories

The MS909EV comes with a range of adapters for specific electric vehicles, including BMW, Tesla, and VW. These adapters enable technicians to analyze battery packs directly and accurately. (autel.us)

Technical specifications

• Operating system: Android 7.0
• Processor: Qualcomm 660 octa-core (2.2 GHz Quad-core A73 + 1.8 GHz Quad-core A53)
• Memory: 4GB RAM & 128GB internal memory
• Screen: 9.7-inch TFT-LCD with 1536 x 2048 resolution
• Connectivity: Dual Wi-Fi, Bluetooth V5.0, GPS, USB 2.0, HDMI 2.0, SD card (up to 256GB)
• Cameras: 16 Megapixel front and rear
• Battery: 15,000mAh lithium-polymer, up to 8 hours continuous use
• Dimensions: 304.4 mm x 227.8 mm x 42.5 mm
• Weight: 1.66 kg

(autel.us)
