CASCOS TWO COLUMN LIFT BRIDGE, FLOORLESS 3200KG 400V COMFORT CASCOS
Ref: VAL 51A13120SC - 8720028088379
5450,-
vat incl.
Less than 2 in stock
Delivery period: 1 day
In stock
Reflection period 14 days

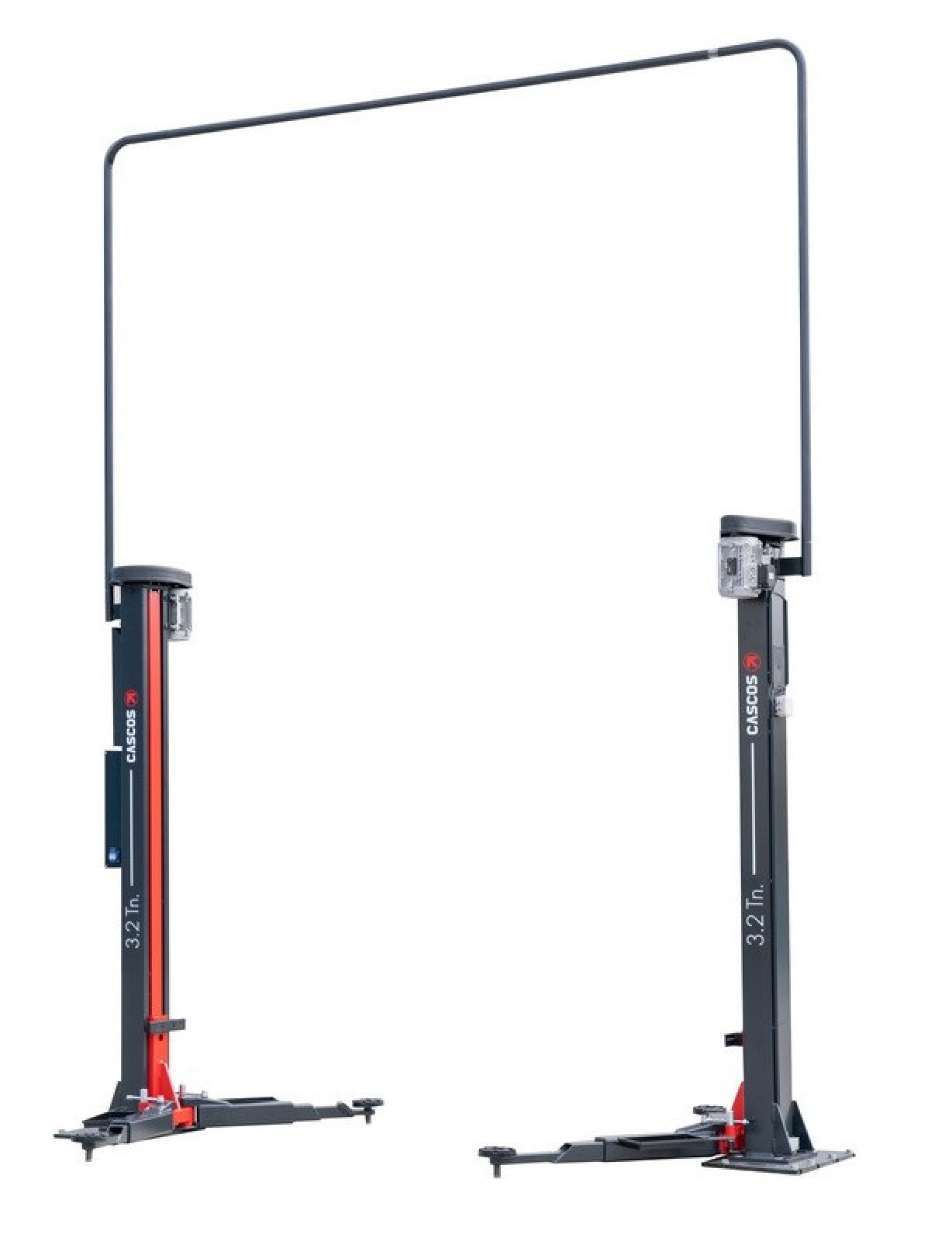

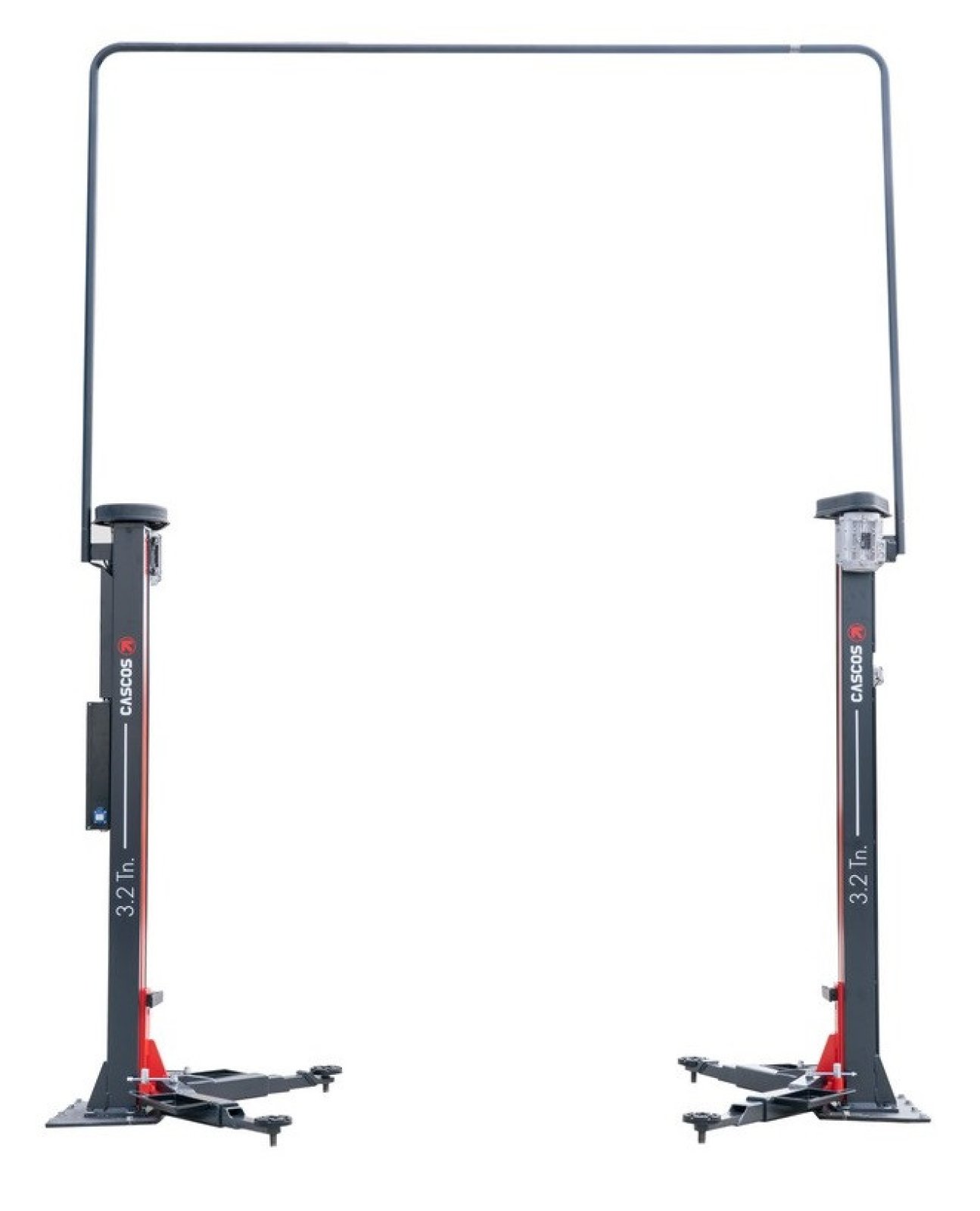

13120SC is a two pole lift bridge where the cables hang above the bridge or can be buried. This makes this bridge ideal for lifting low vehicles. This 400 Volt lift bridge has a lifting capacity of 3200kg and is equipped with extendable arms. The brand Cascos is 100% European and has over 50 years of experience in the field of lift bridges, which results in a very reliable and extremely strong end product.

Three key words are central to Cascos lifters, namely: Reliability, functionality and safety.



The robust construction of the bridges and the high quality of the components ensure high reliability and low maintenance costs. The double and triple long arms allow for both symmetrical and asymmetrical work and provides a very comfortable and fast positioning of the arms at the recording points without taking a long time to perfectly center a vehicle. The robust columns, the steel bearings, but especially the safety nuts ensure very high safety.



The hebrug is equipped with an electrical synchronization with electronic card and detectors: the electronic card is programmable and protected against voltage changes and short circuits. In addition, this system allows quick and easy identification of the operating status of the elevator and the ILC system can work.



Furthermore, the Cascos pile lifts have a number of very thoughtful features:

- SlenderTec solid columns:Very robust, 10 to 23mm thick.

- Extendable symmetrical arms: Bridges are designed to withstand the maximum load at any angle and all lengths.

- Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear on the working nut. Also requires less lubrication.

- Steel bearings: Less wear and compared to nylon systems because they last longer. Furthermore, they provide support to the columns.

- Safety nuts: Extra strong for bridges with a capacity of up to 5500kg.



Features:

-Floorless Comfort model lift bridge

- Lifting capacity of 3.2 tons

- Equipped with ILC system (Intelligent Lift Control): An innovative control system that regulates the operation of the elevator

- Display LCD screen: safety warnings, useful information about the operation of the elevator, operational notifications, maintenance notifications and troubleshooting.

- Independent motors in each column.

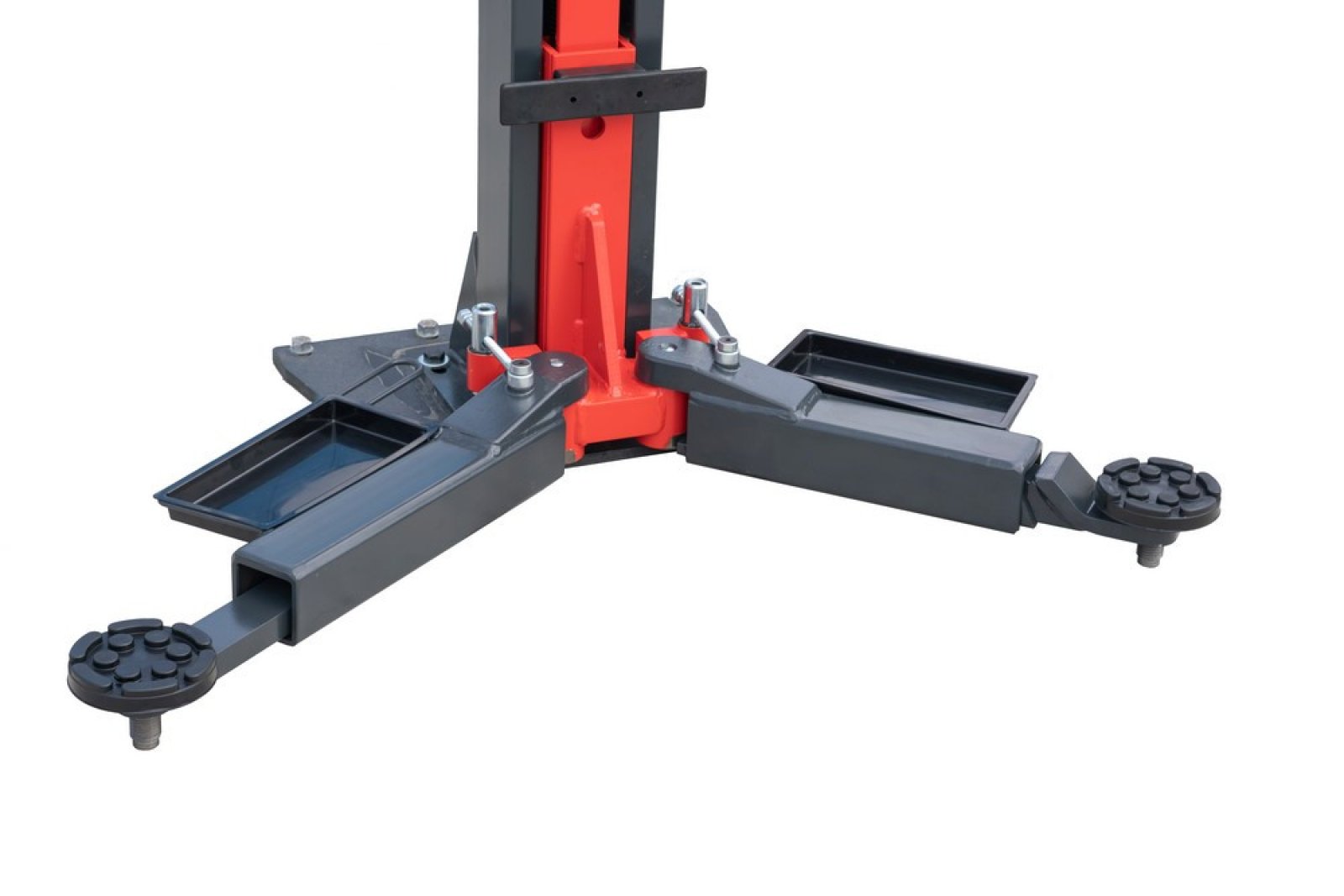

- Arms to work both symmetrically and asymmetrically: 2 arms that extend 2 times and 2 arms that extend 3 times.

- Convenient 230V power outlet.

- Double screw spindles for extra high uptake.

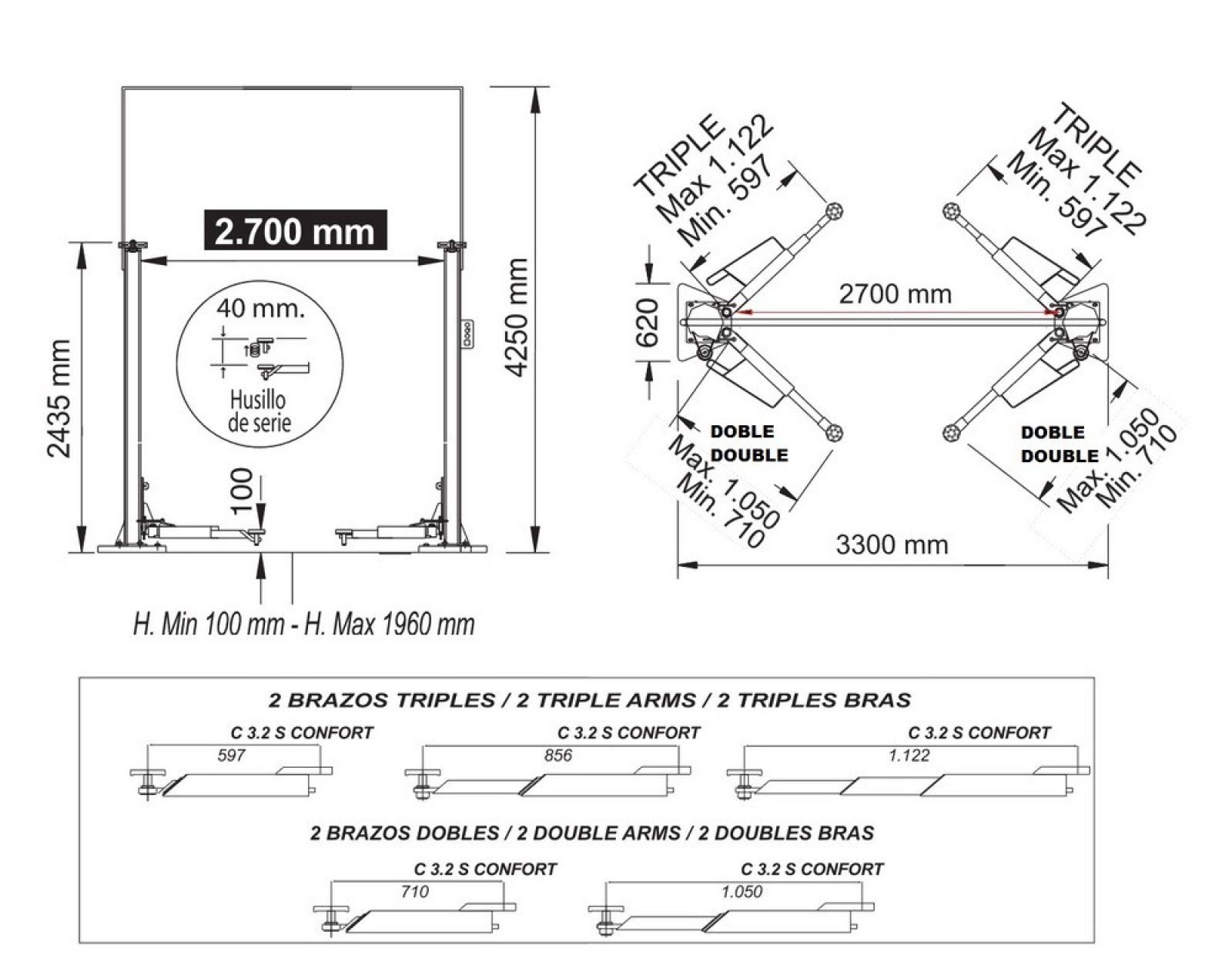

Specifications:

- Capacity = 3200kg

- Voltage = 400V / 3 phase

- Motor power = 2.2kW

- Minimum height = 100mm

- Maximum height = 1960mm

- Lifetime = 45 seconds

- Distance between the columns = 2700mm

- Height of the columns = 2435mm

- Total height = 4250mm

- Range of double arms = 710 - 1050mm

- Range of triple arms = 597 - 1122mm

- Total weight = 600kg



The level is controlled via 4 inductive sensors that ensure absolute synchronization of the elevator, so it is less sensitive to floor leveling and cable balancing, making it easy to work with very long vehicles.

It is possible to connect both the motor via buried installation and work without an arch for the same price. Ask one of our staff about the possibilities.



Please note: The price for this lift bridge does not include the delivery and installation of the bridge. For more information regarding installation and service contracts, please contact one of our staff members.
