Efficient and safe compressed air connections

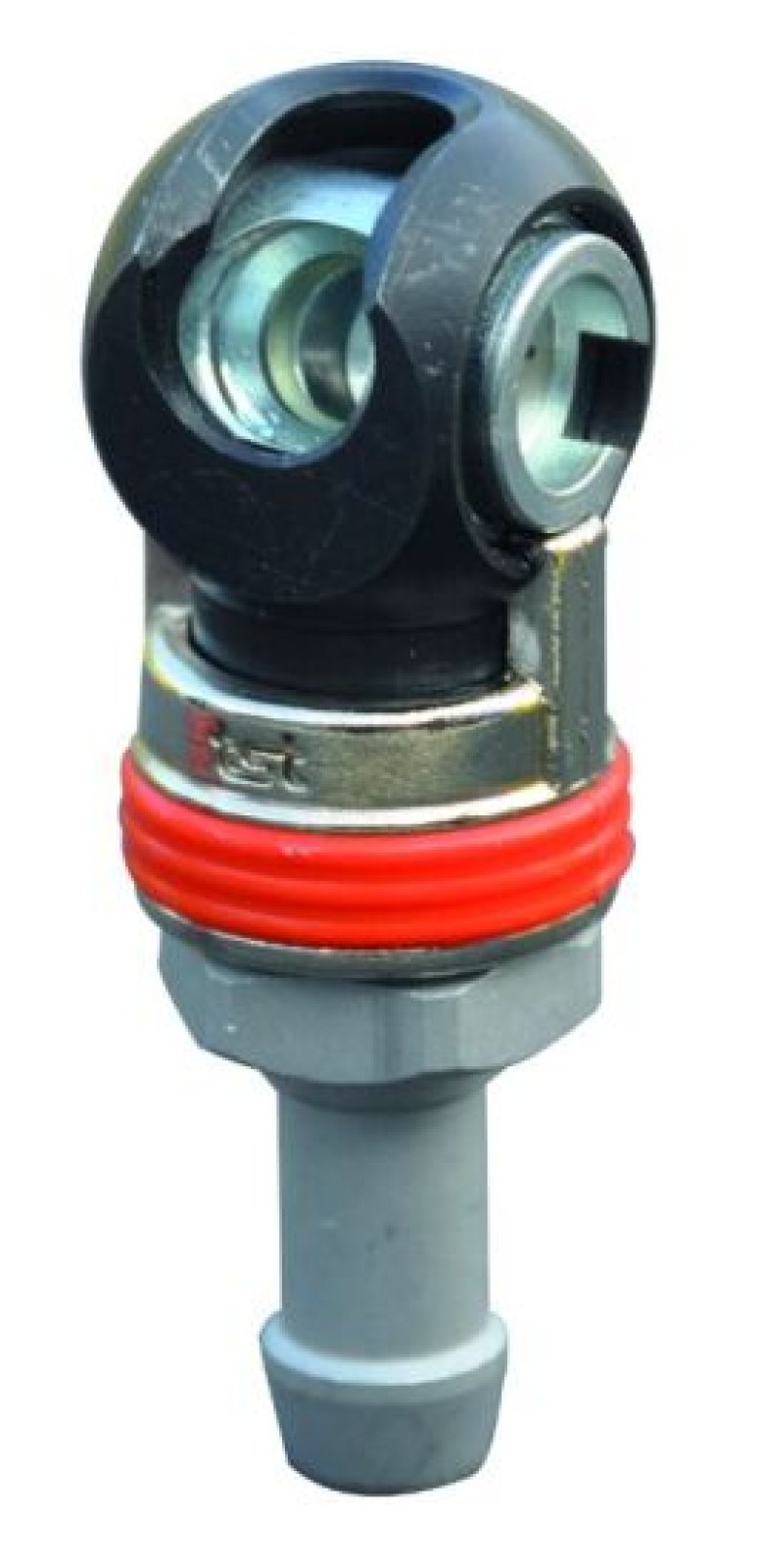

The DELTACH compressed air elbow coupling with 13 mm hose connection offers a reliable solution for quickly and safely connecting and disconnecting compressed air lines. Thanks to the elbow mechanism, you can easily shut off the air supply by sliding the ring with the orange stripe backwards, causing the coupling to bend and the airflow to stop.

Durable material for intensive use

This elbow coupling is made from a combination of plastic and steel, ensuring a robust construction that can withstand intensive use in various industrial environments. The design complies with ARBO legislation and the safety requirements of ISO 4414, contributing to a safe working environment.

Technical specifications

• Hose connection: 13 mm
• Material: Plastic and steel
• Airflow capacity: 1750 l/min
• Working pressure: 0 to 16 bar (maximum 25 bar)
• Temperature range: -20°C to +100°C

Compatibility and applications

The DELTACH elbow coupling is designed for use with the Orion profile, ensuring broad compatibility with other components within this system. This makes the coupling suitable for various applications in the automotive sector, workshops, and industrial environments where reliable compressed air connections are essential.

Easy installation and use

The 13 mm hose connection allows for quick and easy hose attachment, saving time during installation and maintenance. The elbow mechanism ensures intuitive operation, allowing you to work efficiently without compromising on safety.

Maintenance and durability

Thanks to the high-quality materials and thoughtful design, the elbow coupling requires minimal maintenance. Regular inspection and cleaning are sufficient to extend its lifespan and guarantee optimal performance.

Advantages at a glance

• Quick and safe disconnection: Elbow mechanism with orange ring for easy operation.
• Robust construction: Made of plastic and steel for long-term use.
• High airflow capacity: Suitable for demanding applications with an airflow up to 1750 l/min.
• Wide compatibility: Designed for the Orion profile, fitting within various systems.
• User-friendly: Easy installation and intuitive operation for efficient work.
