Innovative swivel coupling for optimal safety

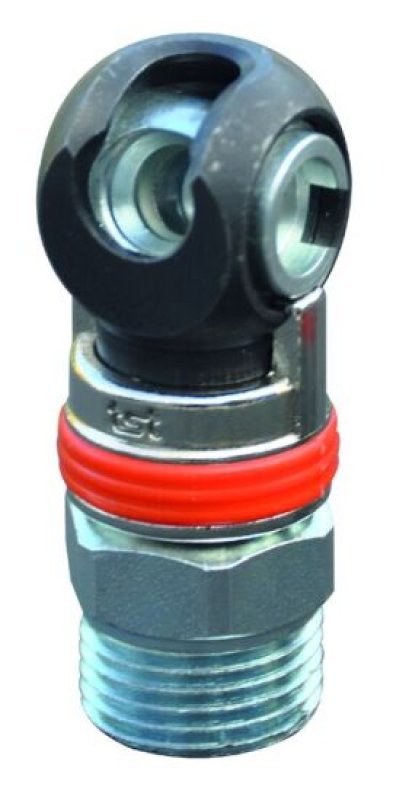

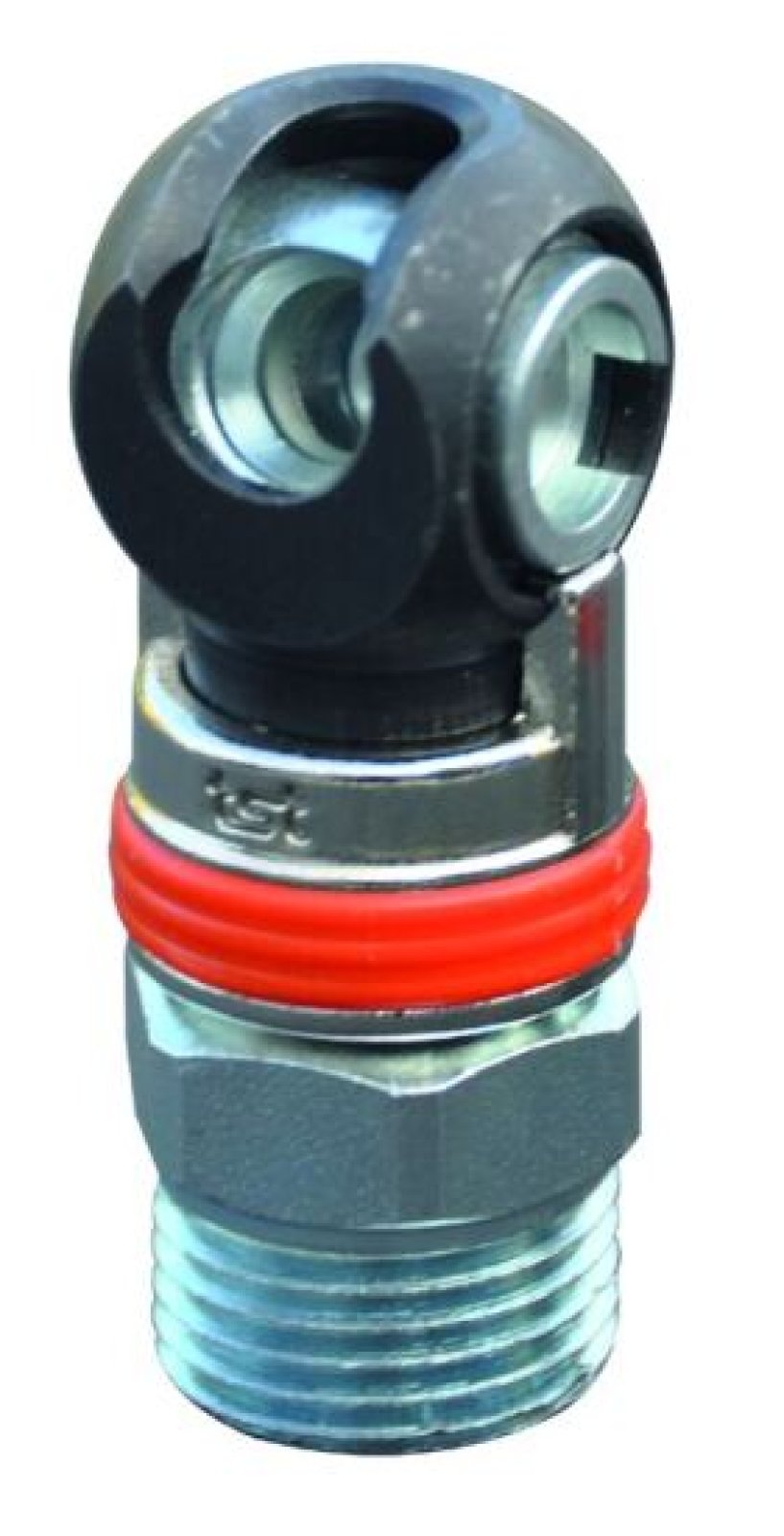

The DELTACH compressed air swivel coupling 3/8" male thread Euro is designed with a swivel mechanism that makes disconnecting simple and safe. By sliding the ring with the orange stripe backwards, the coupling bends and the air supply is automatically shut off. This mechanism prevents unwanted air leaks and increases safety during use.

Complies with strict safety standards

This swivel coupling complies with ARBO legislation and the safety requirements of ISO 4414. This means you can rely on a product that has been tested and approved according to the highest industrial standards, which is essential for a safe working environment.

Durable material for demanding applications

Made from a combination of plastic and steel, this coupling offers an excellent balance between lightweight and robustness. This makes it suitable for demanding applications where durability and reliability are crucial.

Technical specifications

• Air connection: 3/8"
• Material: Plastic and steel
• Air flow: 1750 l/min
• Working pressure: 0 to 16 bar (maximum 25 bar)
• Temperature range: -20°C to +100°C

Easy installation and use

Thanks to its ergonomic design, installation and use of this swivel coupling is simple. The clear orange marking on the ring ensures intuitive operation, allowing you to quickly and effortlessly disconnect the coupling when needed.

Compatibility with Euro-profile systems

This swivel coupling is designed according to the Euro profile, meaning it is compatible with a wide range of compressed air systems and accessories that use the same profile. This ensures seamless integration into existing systems without the need for additional adapters.

Ideal for various applications

Whether you work in the automotive sector, construction, or another industry where compressed air is used, this swivel coupling offers the reliability and safety you need. It is suitable for both professional and industrial applications where high performance and safety are required.
