Advanced measuring technologies

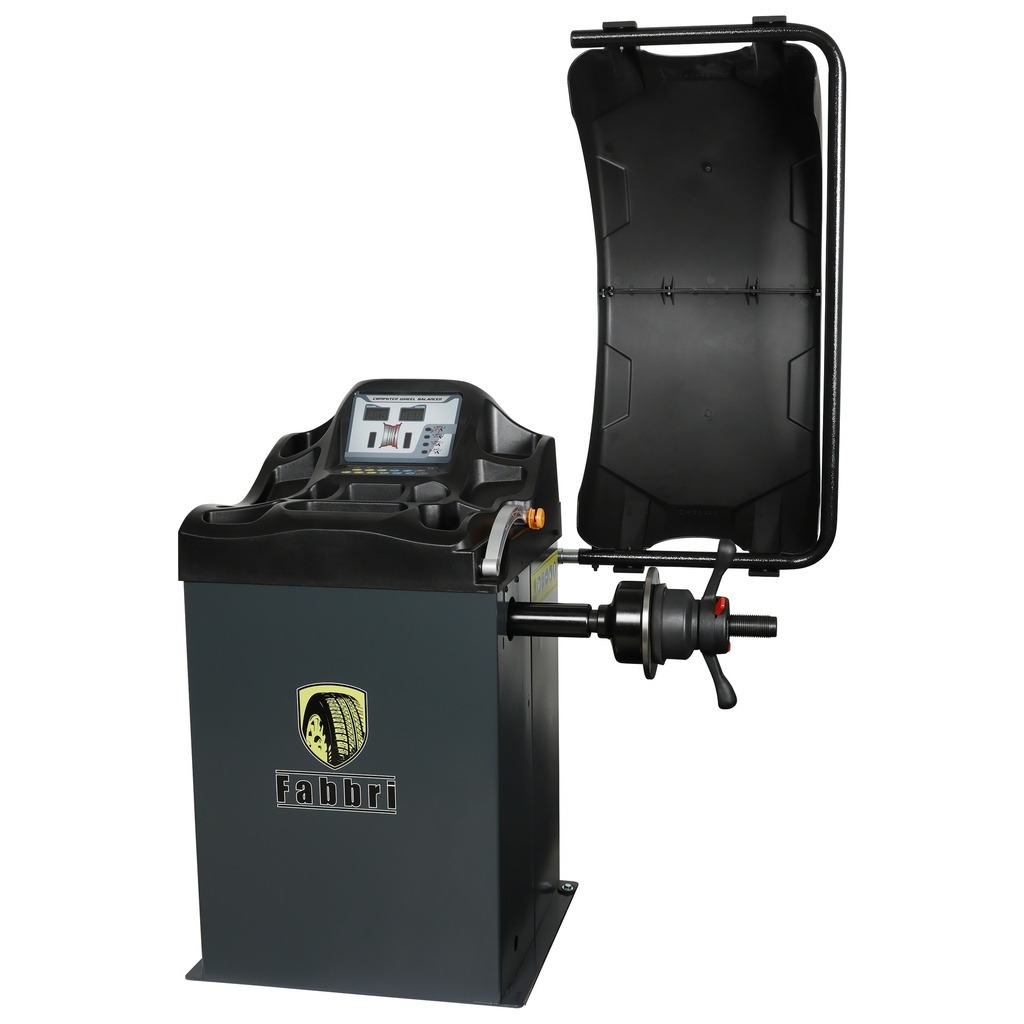

The Fabbri ZH827A is equipped with a laser positioning system that precisely indicates where the balancing weight should be placed on the rim. This prevents errors and significantly speeds up the balancing process. The integrated sonar sensor automatically measures the rim width, eliminating the need for manual input and reducing the chance of mistakes.

User-friendly operation

With the electronic measuring arm, you can easily enter other rim parameters such as distance and diameter. The clear digital display shows all measurement results in an organized manner, while the integrated work lighting ensures good visibility when applying weights and inspecting the rim surface.

Wide range of applications

This balancing machine is suitable for a wide variety of vehicles, from passenger cars to light commercial vehicles. Thanks to the wheel weight capacity of up to 65 kg and a rim diameter range of 10” to 24”, you can accurately balance various wheels.

Efficiency and precision

The ZH827A offers a balancing accuracy of 1 gram and a balancing time of only 7 seconds. This increases productivity in your workshop and ensures satisfied customers.

Standard included accessories

• Wheel weight pliers
• Calibration weight
• Rim width gauge
• Balancing clamp
• Cone set

Technical specifications

• Power supply: 230 V
• Motor power: 0.2 kW
• Maximum wheel weight: 65 kg
• Maximum wheel diameter: 1000 mm
• Rim diameter: 10" - 24" (254 - 610 mm)
• Rim width: 1.5" - 17" (38 - 432 mm)
• Balancing accuracy (car tires): 1 g
• Balancing shaft: 36 mm
• Balancing time: 7 sec.
• Maximum balancing speed: 200 rpm
• Noise level: <70 dB

Dimensions and weight

• Product dimensions:
• Length: 750 mm
• Width: 815 mm
• Height: 1620 mm
• Weight: 91 kg

With the Fabbri ZH827A, you get a reliable and efficient balancing machine that meets the demands of modern workshops.
