Compact and slim design

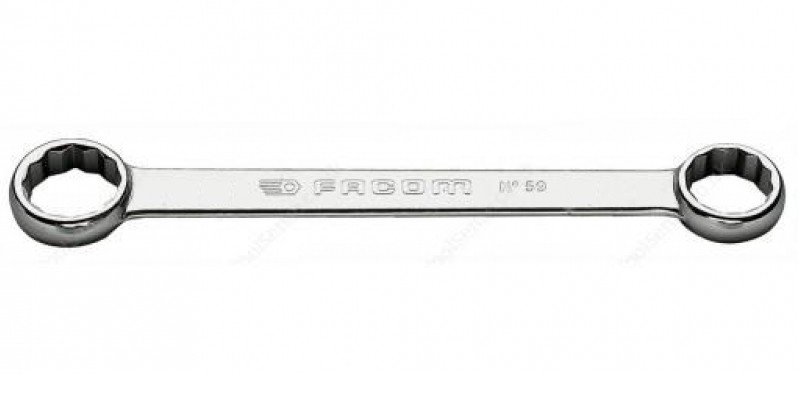

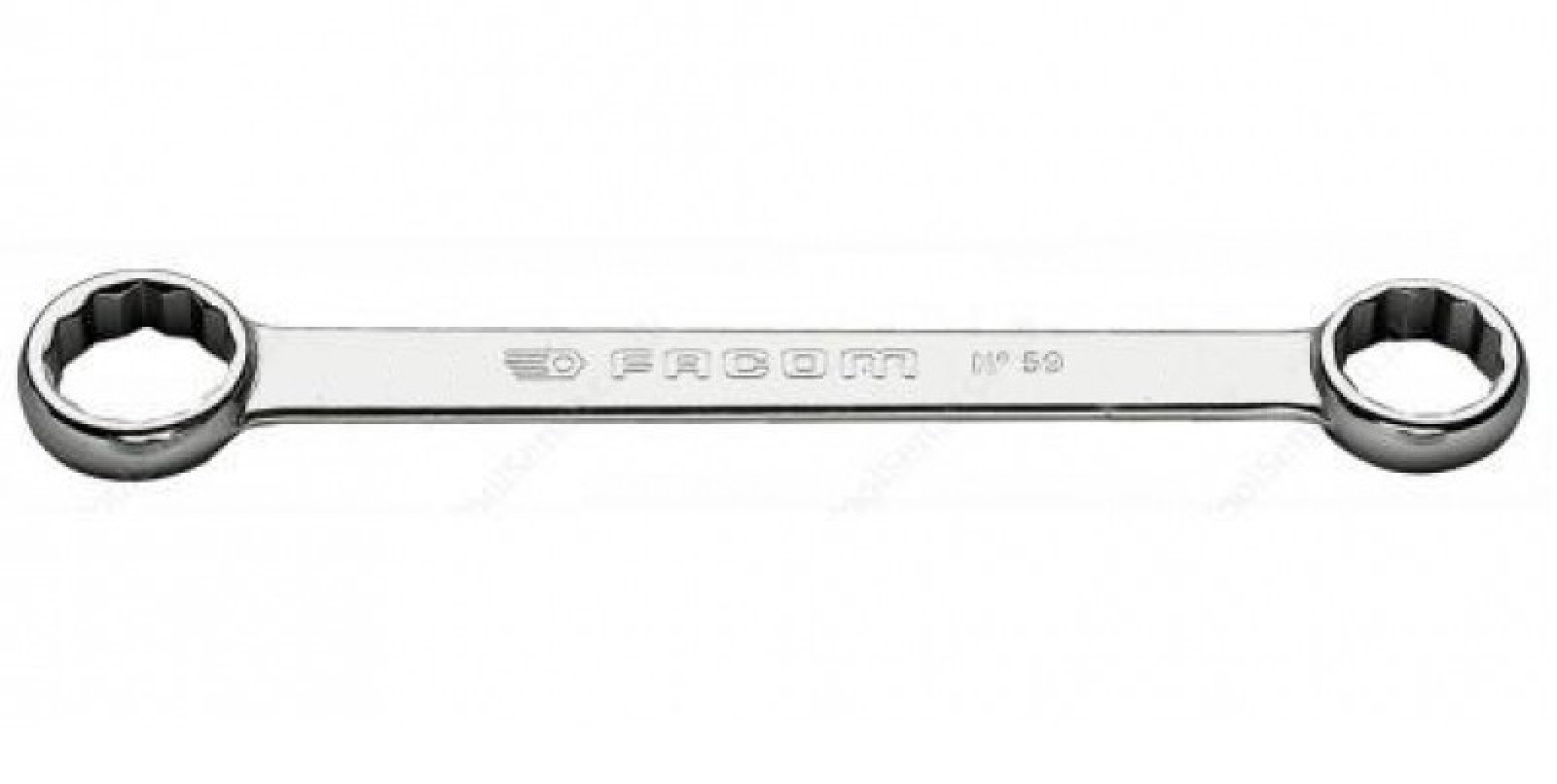

The FACOM 12x13 mm flat ring spanner is designed for work in tight spaces. With a length of 165 mm and a thickness of only 7.2 mm, this spanner offers optimal accessibility in hard-to-reach mechanical constructions.

OGV® profile for maximum grip

Equipped with a 12-point ring with OGV® profile, this spanner maximizes the contact surface with nuts and bolts. This ensures powerful torque without the risk of damaging fasteners.

Durable and reliable material

Made of high-quality chrome vanadium steel and featuring a chrome-plated, satin finish, this ring spanner guarantees a long service life and resistance to corrosion.

Technical specifications

• Jaw size: 12 mm and 13 mm
• Length: 165 mm
• Thickness: 7.2 mm
• Head width: 19.8 mm (12 mm side) and 21.2 mm (13 mm side)
• Weight: 40 g

Standards and certifications

This ring spanner complies with the following standards:

• NF ISO 10103
• NF ISO 1711-1
• NF ISO 691
• ISO 10103
• ISO 1711-1
• ISO 691
• DIN 837
• DIN ISO 1711-1
• DIN ISO 691

These certifications confirm the high quality and reliability of the tool.
