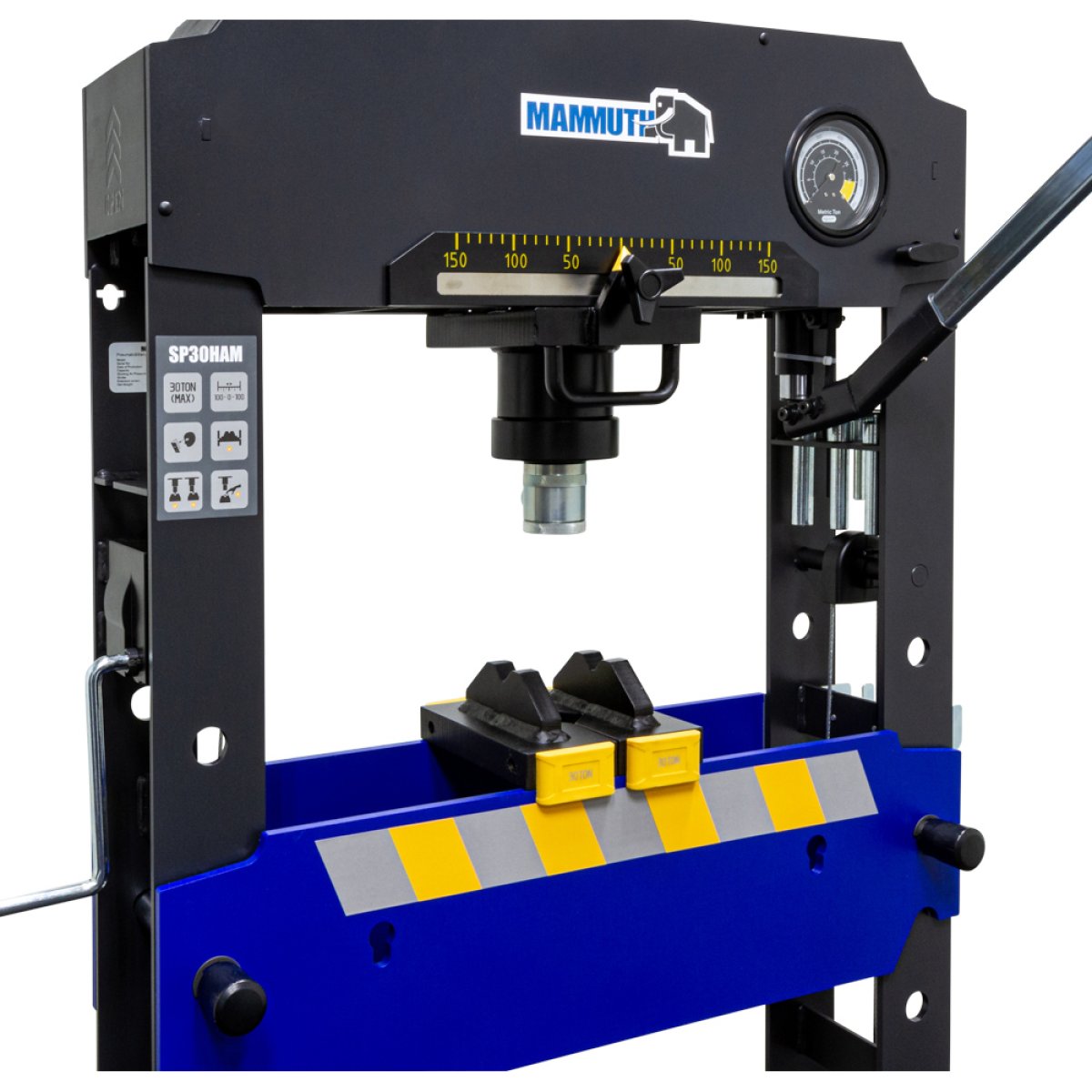

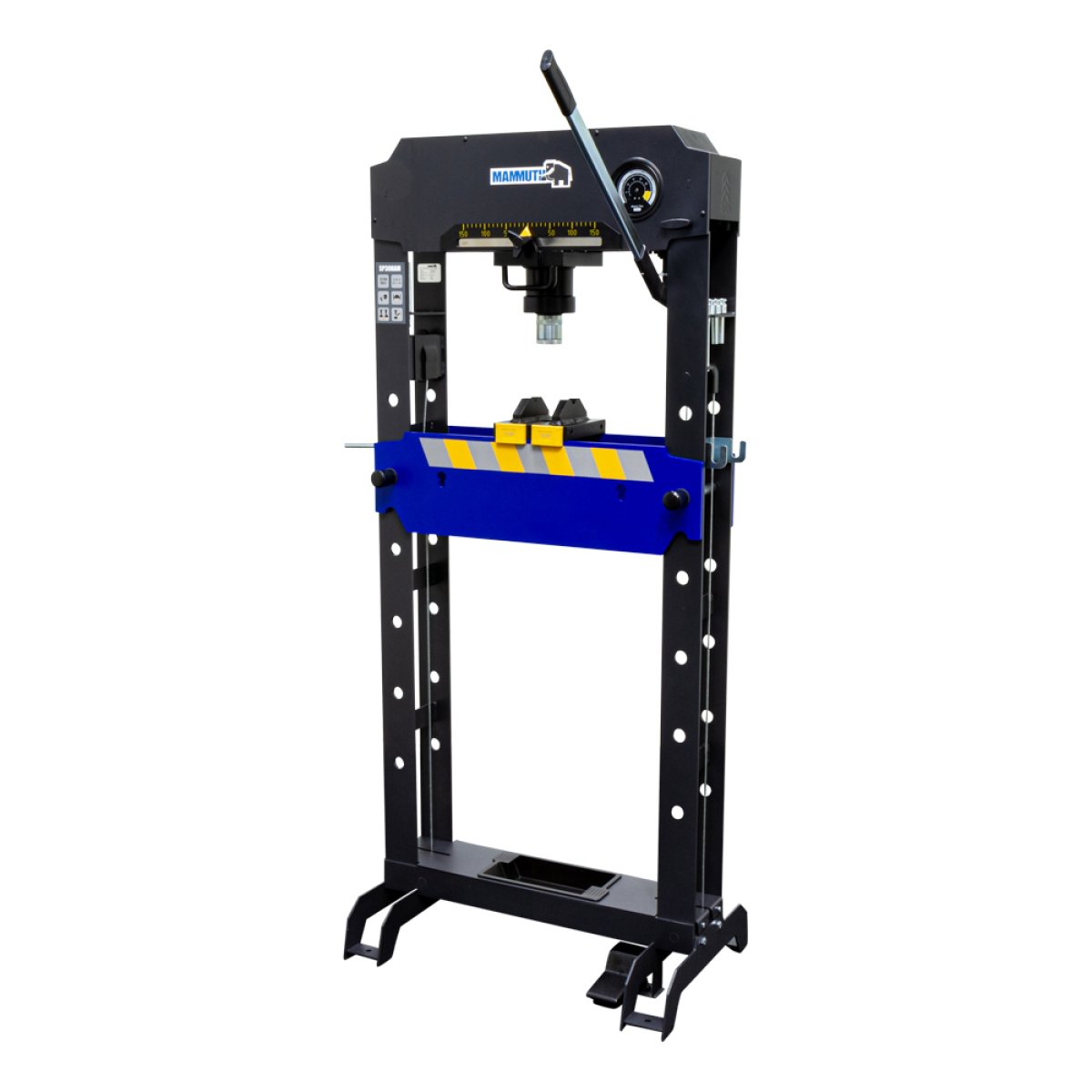

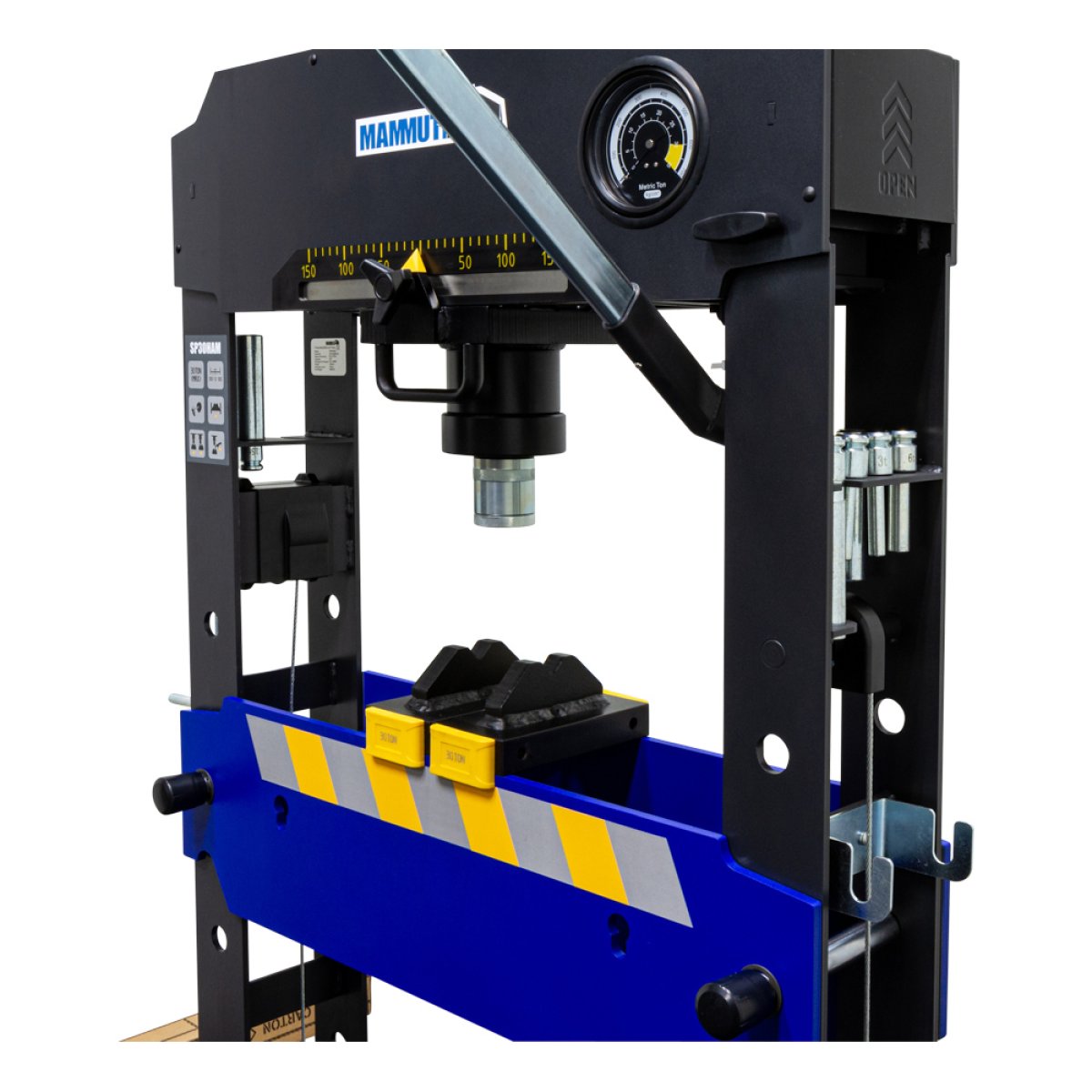

Robust construction for intensive use

The MAMMUTH workshop press is made from a fully welded heavy frame, providing exceptional stability and durability. This makes the press suitable for intensive use in professional workshops.

Flexible operating options

This press offers both manual and pneumatic operating options. You can choose between the lever with two-stage pump for precise control, or the air-operated foot pedal for efficient operation. The two-stage pump ensures quick approach and controlled force build-up.

Adjustable workbed and cylinder

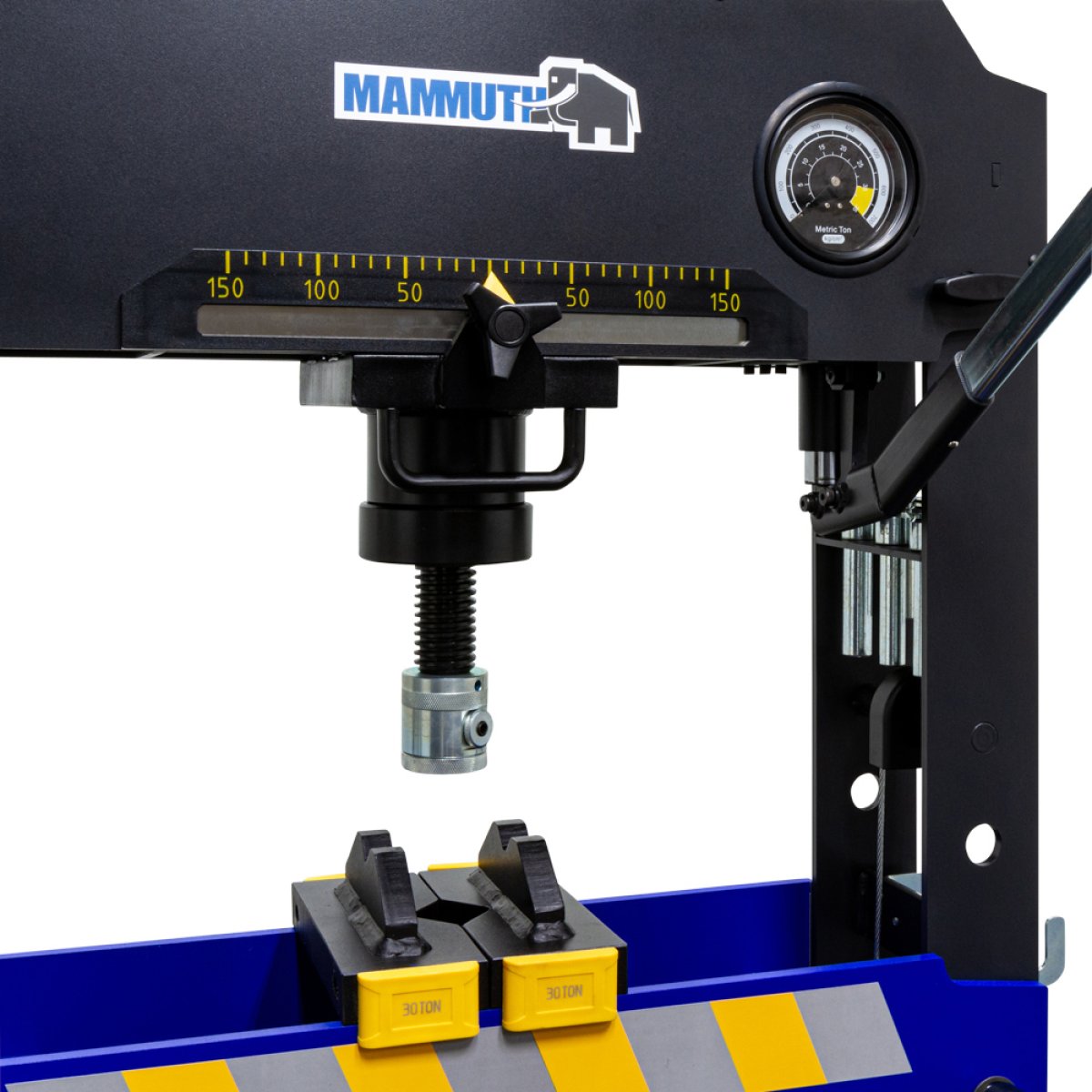

The workbed is easily height-adjustable using a hand winch, allowing you to position the workpiece at the ideal working height. The hydraulic cylinder can be moved laterally and is equipped with a height-adjustable spindle of 75 mm, providing extra flexibility for various applications.

Accurate pressure measurement

The integrated manometer allows you to read the pressing pressure accurately, which is essential for precision work and preventing overloading of the workpiece.

Complete with accessories

This workshop press comes with:

• 2 heavy press blocks
• 8 press pins
• Parts tray

These accessories increase the versatility and user-friendliness of the press.

Technical specifications

• Capacity: 30 ton
• Cylinder stroke: 220 mm
• Bed width: 600 mm
• Bed depth: 187 mm
• Working range: 850 mm
• Screw spindle length: 75 mm
• Working pressure: 8 - 12 bar
• Air connection: 1/4" NPT external thread
• Weight: 180 kg

Dimensions and weight

• Package dimensions:
• Length: 840 mm
• Width: 1,750 mm
• Height: 350 mm
• Package weight: 194 kg

With these specifications, the MAMMUTH workshop press is a reliable and versatile addition to any professional workshop.
