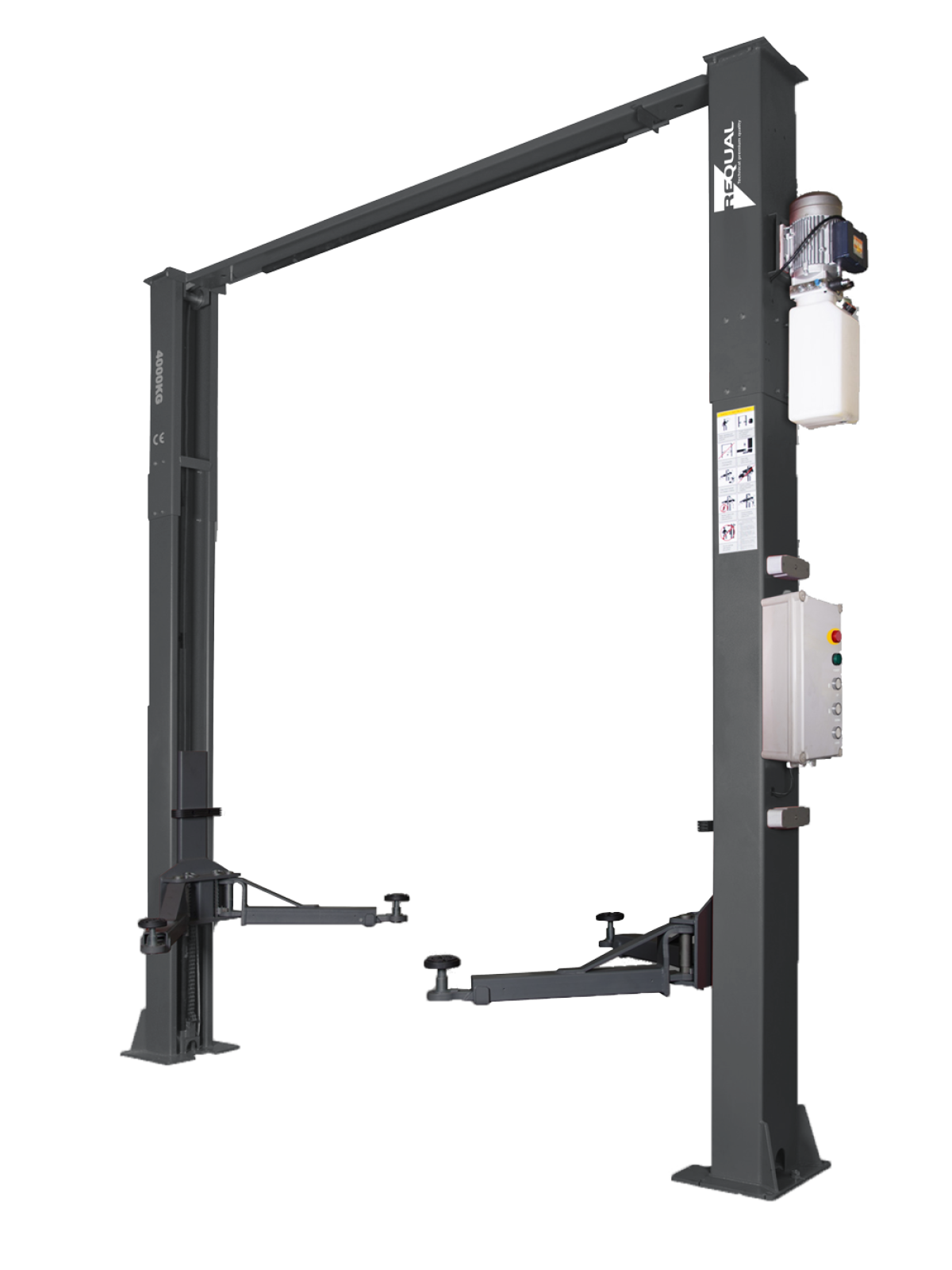

Powerful lifting performance

With a lifting capacity of 3,700 kg and a lifting and lowering time of just 45 seconds, the REQUAL REQ1017 offers efficient performance for various vehicles.

Design without floor connection

The absence of a floor connection ensures unobstructed access under the car, increasing flexibility and freedom of movement during work.

Advanced safety features

• Electromagnetic safety lock
• Synchronization via steel cable

These features guarantee a safe and stable lifting experience.

Adjustable telescopic arms

The long, 3-stage telescopic arms make it easy to lift different types of vehicles, from compact cars to larger vehicles.

Inclusive accessories

• 4 extensions of 70 mm
• 4 rubber lifting pads of 115 mm

These extras increase the versatility and ease of use of the lift.

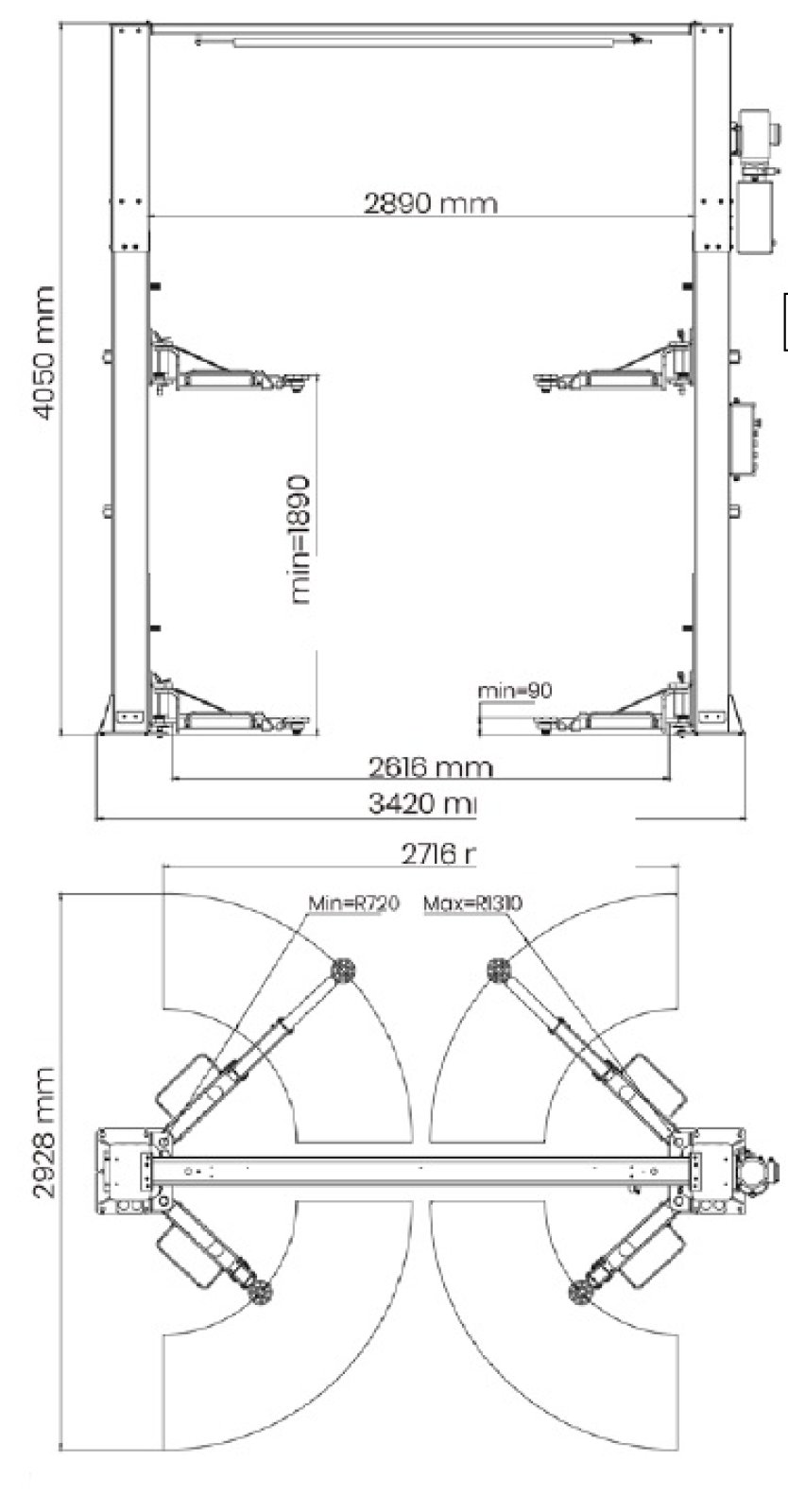

Technical specifications

• Machine weight: 670 kg
• Maximum lifting height: 1890 mm
• Platform starting height: 90 mm
• Total height: 4050 mm
• Total width: 3420 mm
• Standard power supply: 400V, 50Hz, 16A
• Motor power: 2.2 kW
• Hydraulic oil: 8L, compatible with portable hydraulic oil

Complies with European safety standards

The REQUAL REQ1017 complies with the Machinery Directive 2006/42/CE and Vehicle lifts EN1493:2010, underlining the reliability and safety of the lift.
