Versatile welding processes

With the SOLDATECH ML200HG, you have a portable synergic welding machine that effortlessly handles various welding processes, including MIG welding, Lift-TIG, and electrode welding. The automatic adjustment of the wire speed to the set current ensures professional results.

User-friendly operation

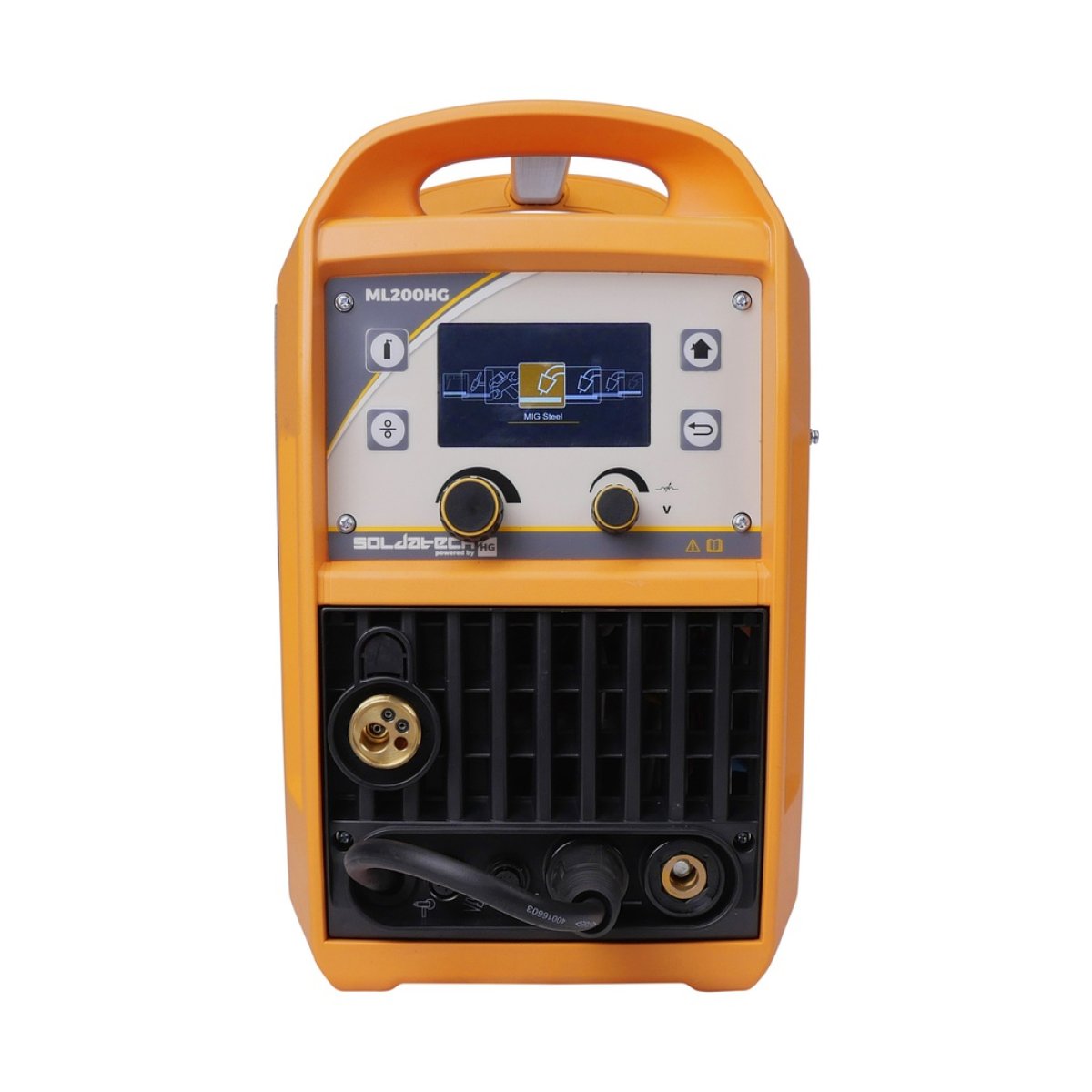

Thanks to the clear LCD screen, the ML200HG is easy to set up and operate. The synergic features and intuitive interface allow you to weld on various materials without complicated settings.

Advanced technology

The modern IGBT inverter technology ensures durable performance with more power and a high duty cycle. The built-in thermal protection and fan prevent overheating, guaranteeing high-quality welding performance for extended periods.

Flexibility in material processing

With the ML200HG, it is possible to braze with CuSi3, a copper-silicon alloy with a lower melting temperature than steel. This reduces the risk of deformation of thin plates and makes it possible to solder different materials, such as aluminum and steel, together.

Innovative welding torch

The welding torch is equipped with the latest torch-control technology, allowing you to easily adjust the welding machine remotely and even during welding. This increases convenience and precision during the welding process.

Memory function for welding settings

The ML200HG features an extensive database where you can store up to five different programs with welding settings. This way, you can easily manage the ideal settings for different applications.

Hot-start and anti-stick functions

Thanks to the hot-start and anti-stick functions, the welding current is quickly increased so that the electrode does not stick to the workpiece during ARC welding. This is ideal for welding stainless steel, carbon steel, low-alloy steel, copper, and aluminum.

Standard included

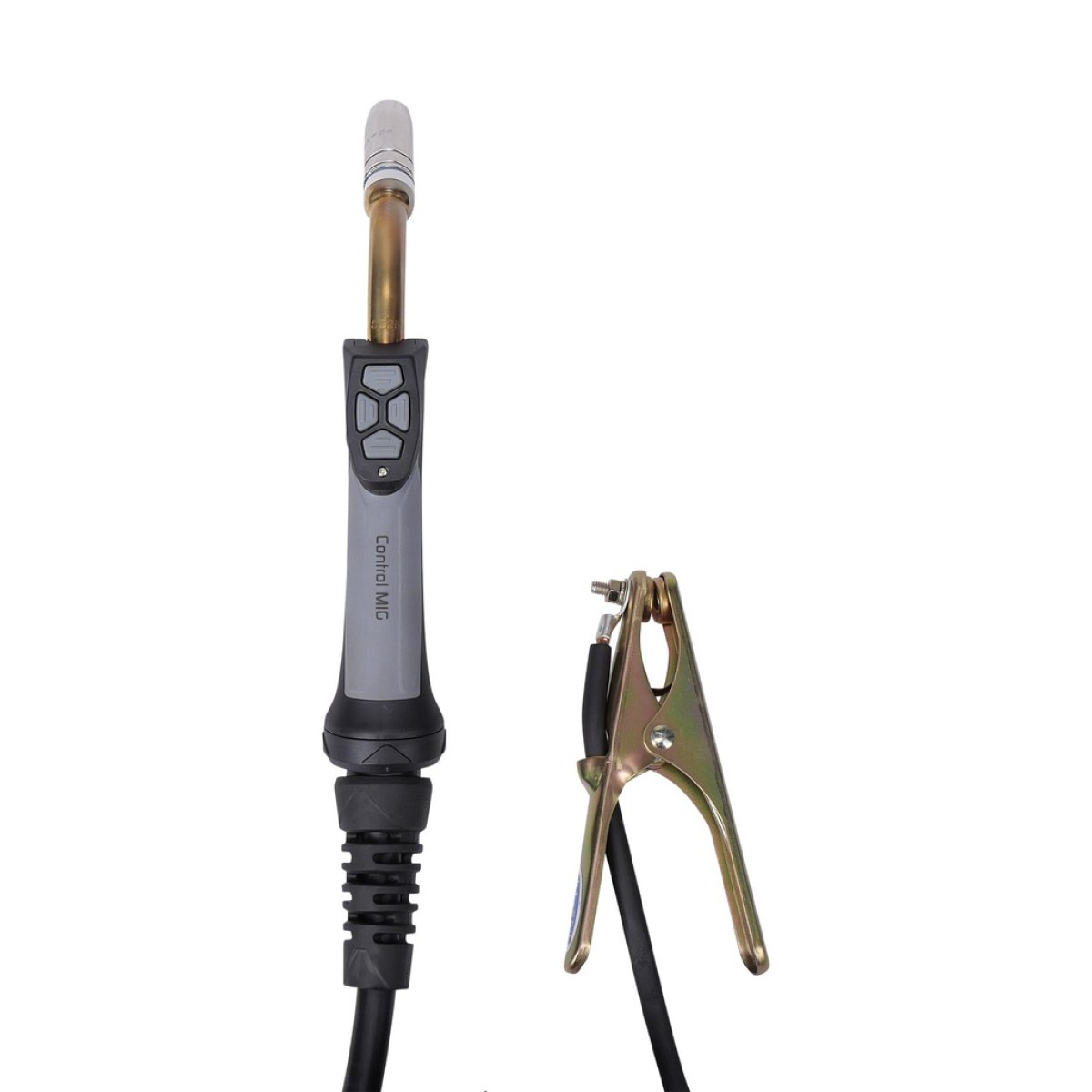

• Soldatech MLT25M3R remote control MIG torch with euro connector and 3m cable
• Twistlock electrode holder with 3m 16mm² cable
• Workpiece clamp with 2m 16mm² cable
• European dinse connectors 13mm
• 3m gas hose with hose clamps
• Neoprene power cable with 2.5m 3x2.5mm²
• 2x wire drive roller: 0.6 + 0.8 and 0.8 + 1.0

Technical specifications

• Voltage: 230V - 1 phase
• Frequency: 50/60Hz
• Fuse: 16A C-type
• Input power: 8.6kVA
• Starting voltage: 69V
• Duty cycle at 20°C: 35% - 200A
• Duty cycle at 40°C: 20% - 200A
• Welding current range MIG/MAG: 40 - 200A
• Welding current range MMA: 10 - 180A
• Welding current range TIG: 10 - 180A
• Weldable wire: 0.6 / 0.8 / 1.0 / 1.2mm
• Protection class: IP21S
• Dimensions: 550 x 245 x 405mm
• Weight: 19kg
