Compact and space-saving design

The FABBRI ZH620 is designed with a sideways rotating swing arm, allowing you to place the machine right up against the wall. This saves valuable space in your workshop without sacrificing functionality.

Versatile clamping options

With an external clamping capacity of 10" to 18" and an internal clamping capacity of 12" to 22", the ZH620 is suitable for a wide range of rim sizes. This makes the machine ideal for both cars and motorcycles.

• External clamping capacity: 10" - 18"
• Internal clamping capacity: 12" - 22"

Powerful performance

Equipped with a 1.1 kW motor and a bead breaker force of 2500 kg, the ZH620 provides enough power to effortlessly remove even the most stubborn tires.

• Motor power: 1.1 kW
• Bead breaker force: 2500 kg

User-friendly features

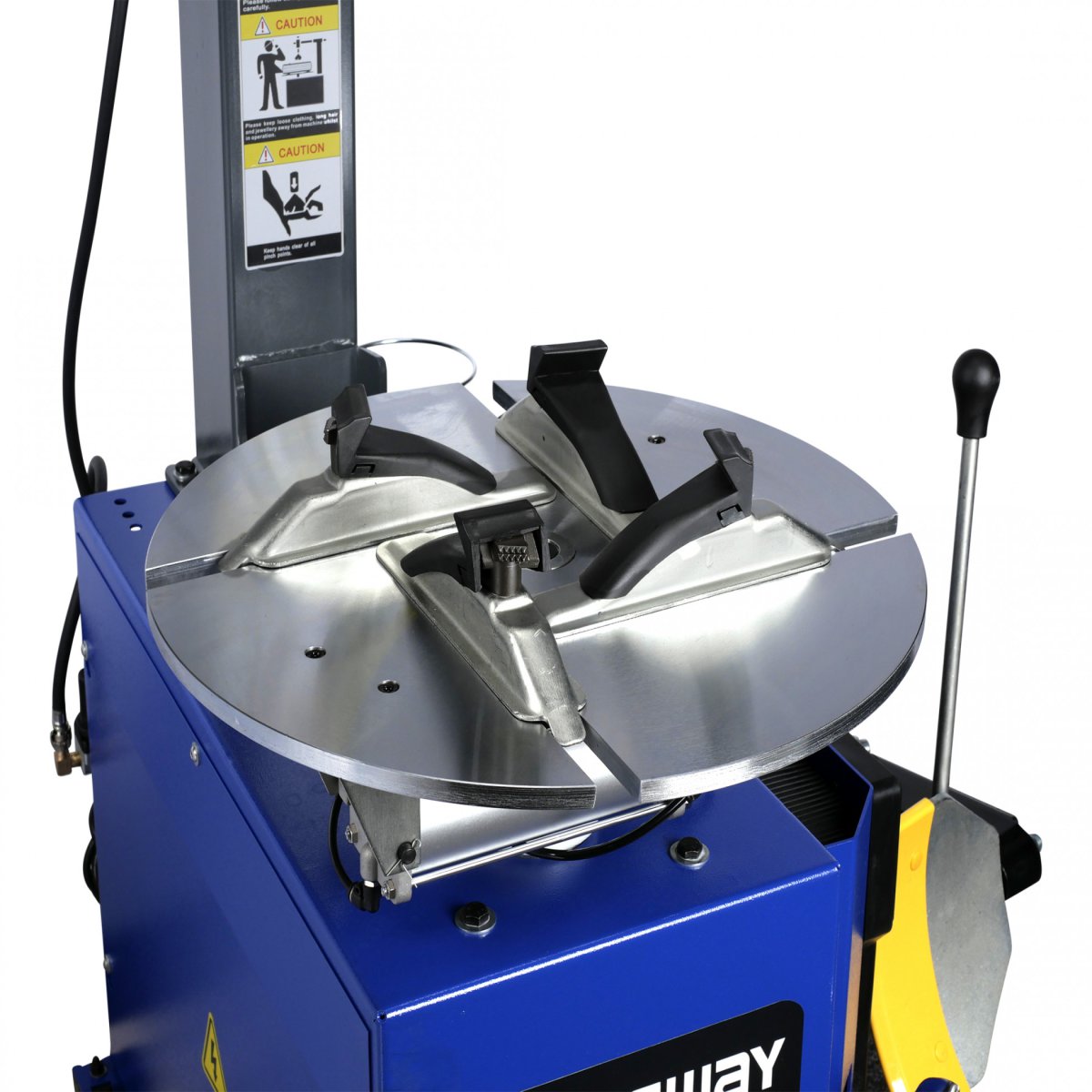

The self-centering clamping ensures quick and accurate placement of the wheel, while the mounting head is specially designed for aluminum rims to prevent damage.

• Self-centering clamping

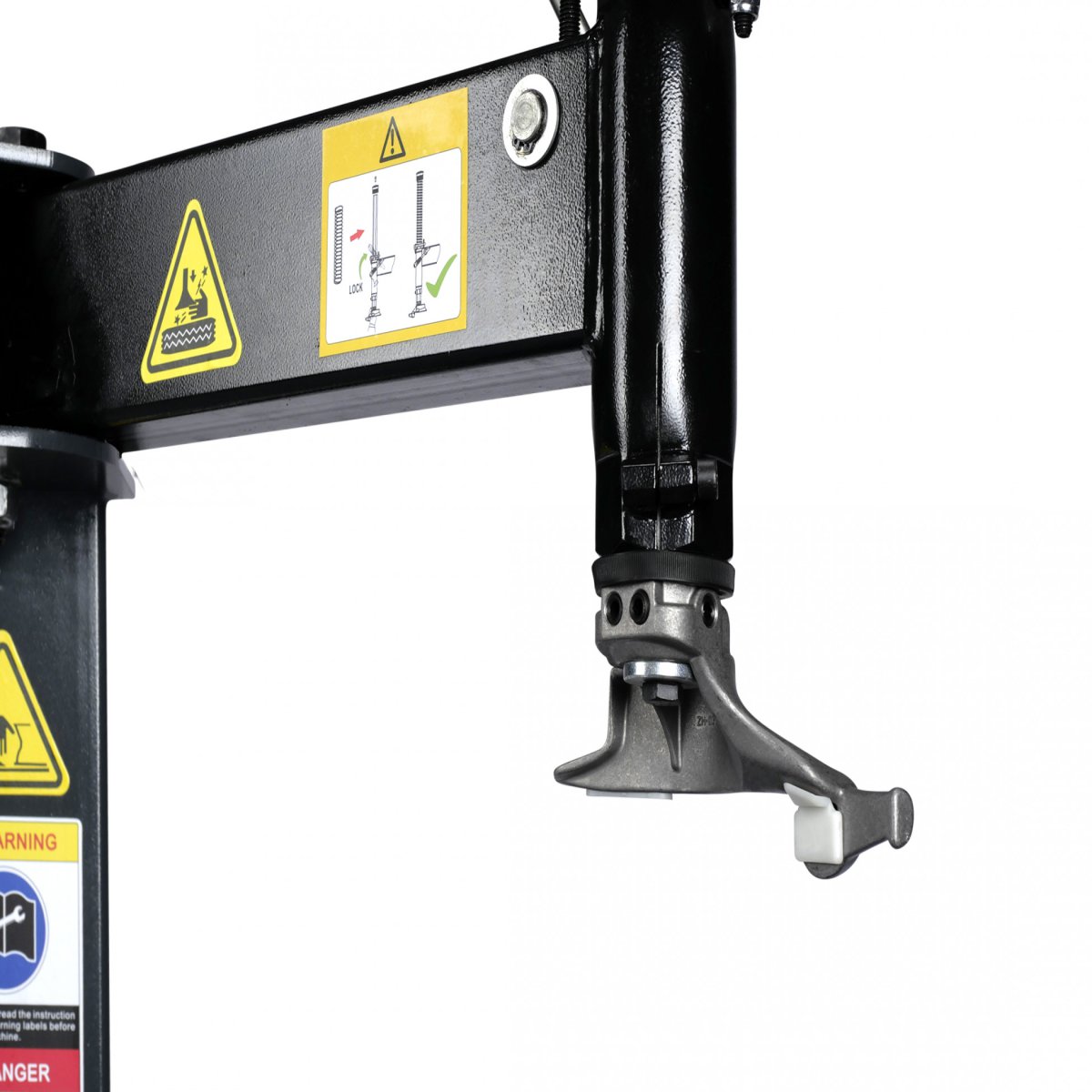

• Mounting head for aluminum rims

Durable and reliable

Thanks to its sturdy construction and high-quality materials, the ZH620 guarantees a long service life, even with intensive use in professional environments.

Technical specifications

• Voltage: 230V
• Frequency: 50Hz
• Noise level: 75 dB
• Air pressure: 8 - 10 bar
• Maximum wheel diameter: 38" (960 mm)
• Maximum wheel width: 13" (330 mm)

Standard included accessories

With the ZH620 you receive a comprehensive set of accessories so you can get started right away:

• Tire lever
• Oil mist lubricator
• Protective covers for jaws
• Protective cover for bead breaker
• Tire gauge
• Air hose

Compliance and certification

The FABBRI ZH620 complies with the 2006/42/EC Machinery Directive and comes with a Dutch manual and certificate, ensuring safe and compliant operation.
