Efficient cable bundling and protection

The Conex spiral sleeve offers a flexible solution for bundling and protecting cables in various applications. With a bundle diameter of 24 to 240 mm, this sleeve is suitable for both small and large cable bundles.

High-quality material composition

Made from polyethylene (PE), this spiral sleeve guarantees excellent electrical properties and a long service life. The material is halogen-free, which means no harmful substances are released during combustion. In addition, the sleeve is flame-retardant according to UL94 HB.

Flexibility and ease of use

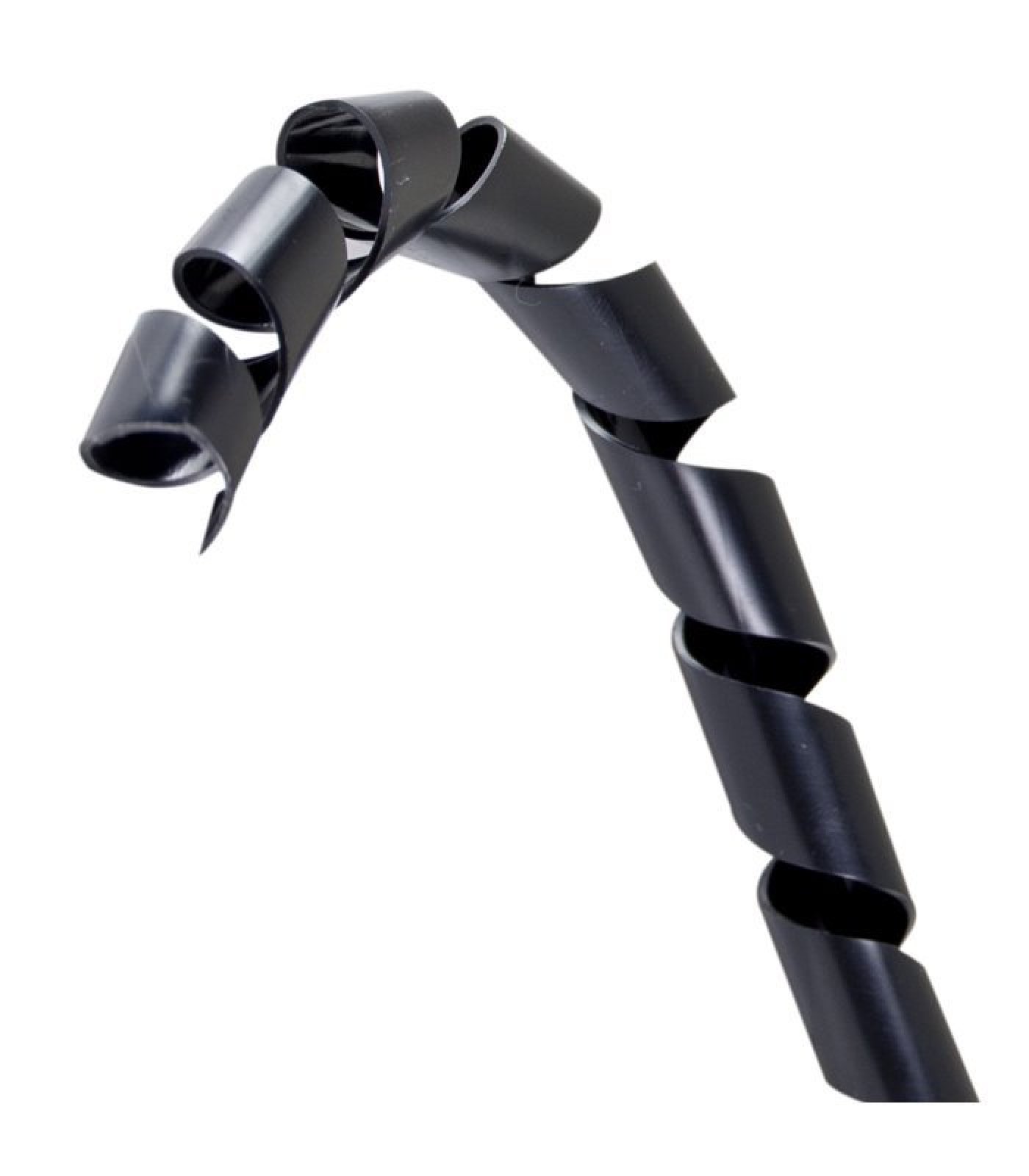

Thanks to its spiral shape, the sleeve is easy to apply and adjust to different cable configurations. The spiral width of 20 mm and a wall thickness of 1 mm ensure a sturdy yet flexible structure that wraps effortlessly around cables.

Wide temperature range

The spiral sleeve is designed to operate within a working temperature of -30°C to 100°C, making it suitable for both cold and warm environments. This wide temperature range ensures reliable performance under various conditions.

Application possibilities

This spiral sleeve is ideal for use in:

• Automotive industry
• Electrical installations
• Industrial machines
• Data centers

Specifications

• Material: Polyethylene (PE)
• Color: Black
• Bundle diameter: 24 - 240 mm
• Length: 25 meters
• Wall thickness: 1 mm
• Spiral width: 20 mm
• Operating temperature: -30°C to 100°C
• Flame retardancy: According to UL94 HB
• Halogen-free: Yes
