High-quality battery cable for optimal power transmission

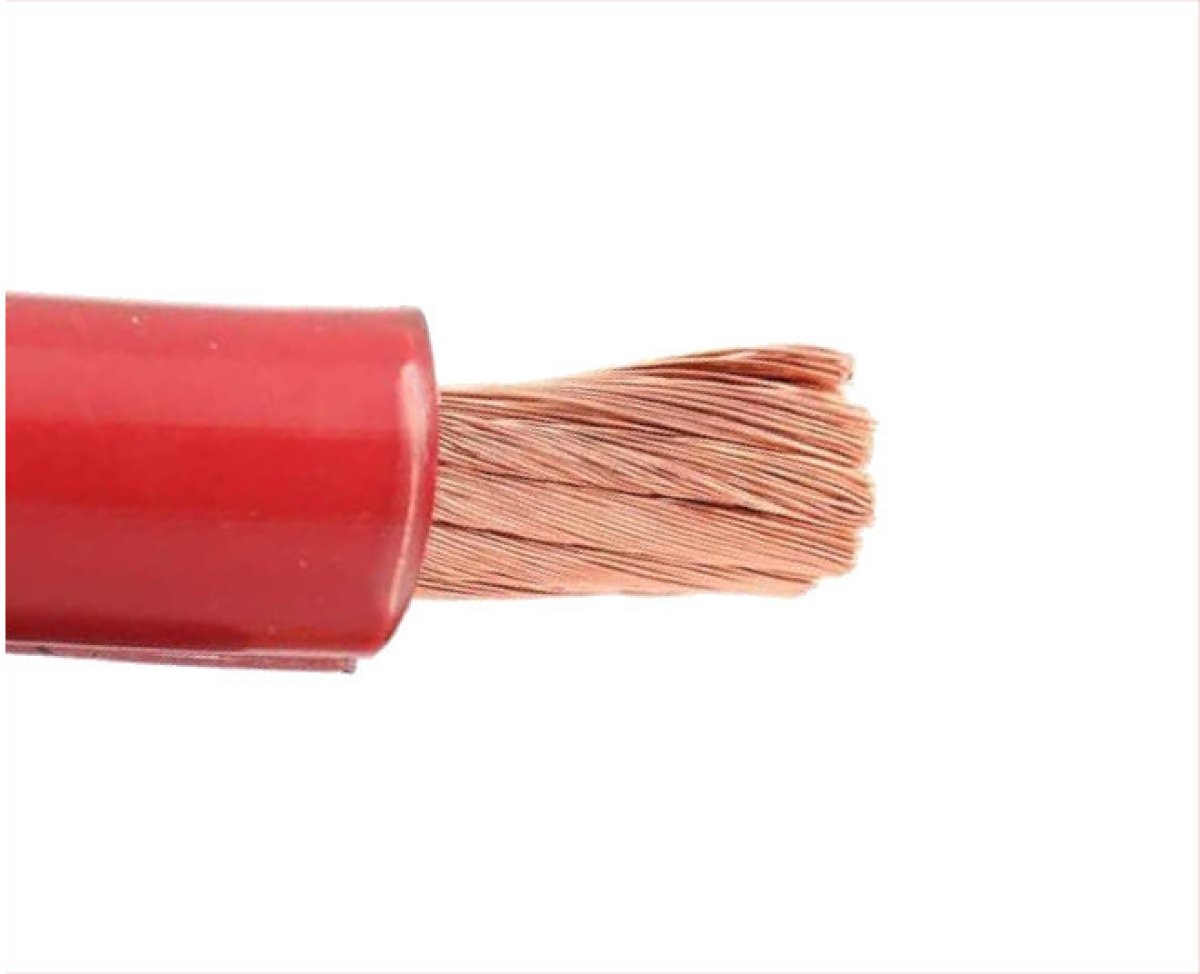

The HELLA 16mm² battery cable in red is specially designed for efficient connection and linking of batteries in various vehicles. Thanks to the copper core, known for its excellent conductivity, this cable guarantees reliable power transfer.

Flexibility and durability

This battery cable features a PVC-insulated sheath that is not only double insulated, but also flexible and oil-resistant. This makes the cable suitable for use in a wide range of conditions within the vehicle, without compromising performance.

Technical specifications

• Color: Red
• Wire cross-section: 16mm²
• Rated voltage: 450-750V
• Test voltage: 2500V
• Outer diameter: Ø 8.1 mm
• Maximum current: 68A at temperatures below 25°C
• Length: Available per running meter

Application possibilities

The flexibility of this battery cable makes it ideal for various applications within the vehicle, such as:

• Connecting batteries
• Linking electrical components
• Installing additional equipment

Calculating the correct cable thickness

To determine the required cable thickness, the following formula can be used:

Current (Ampere) x distance (meter) x 0.2 = cable cross-section in mm²

Example 1: A battery charger of 30 Ampere is located 2.5 meters from the battery. The calculation is then 30 x 2.5 x 0.2 = 15 mm². Since 15 mm² is not a standard size, you choose the next larger size, in this case 16 mm².

Example 2: An inverter of 450 Watt on a 12 Volt battery, placed 3 meters away. The calculation is 450 W / 12 V = 37.5 A; then 37.5 A x 3 m x 0.2 = 22.5 mm². Here you choose the next larger size, namely 25 mm².

Quality and reliability

HELLA is known for its high-quality automotive products. This battery cable meets strict quality standards and offers a reliable solution for your vehicle's power needs.

Ordering information

The battery cable is sold per meter, so you can order exactly the length you need for your specific application.
