High-quality battery cable for optimal power transmission

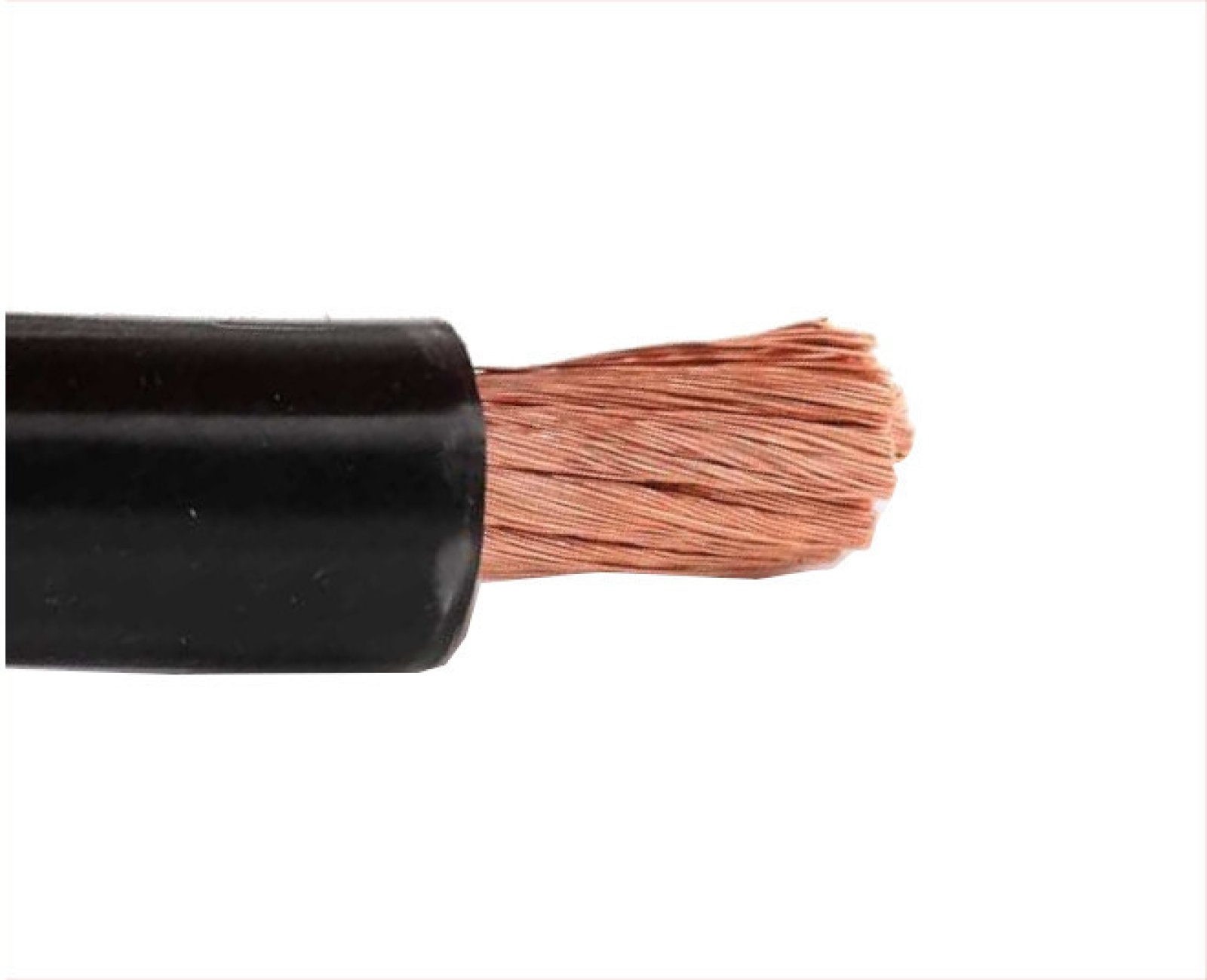

This black 25mm² battery cable is specially designed for efficient connection and linking of batteries in various vehicles. The core consists of electrolytically annealed copper, ensuring excellent conductivity and minimal resistance.

Durable and flexible construction

The cable features PVC insulation with an NBR/PVC oil-resistant sheath, making it resistant to oil, fuel, and acids. This makes the cable suitable for use in both dry and wet environments. In addition, the cable is highly flexible, which makes installation easier, even in tight spaces.

Technical specifications

• Color: black
• Conductor cross-section: 25mm²
• Outer diameter: 10.4 mm
• Rated voltage: 450-750V
• Test voltage: 2500V
• Maximum current: 89A at temperatures below 25°C
• Temperature range: -30°C to +70°C

Applications and use

This battery cable is ideal for connecting batteries, alternators, generators, motors, and inverters in cars, campers, and boats. Thanks to its flexibility and durability, the cable is suitable for various electrical installations where reliable power transmission is required.

Calculating the correct cable thickness

It is essential to choose the correct cable thickness to prevent voltage loss and overheating. A general formula for calculating the required cable thickness is: Current (A) x distance (m) x 0.2 = cable cross-section (mm²). For example, for a current of 30A over a distance of 2.5 meters: 30 x 2.5 x 0.2 = 15mm². In this case, you would choose the next standard thickness, namely 16mm².

Order per meter

The battery cable is sold per meter, so you can order exactly the length you need for your specific application. This ensures efficient installation without unnecessary waste.

Safety and certification

The cable meets the quality standards HD.22.6 and IEC 245-6, guaranteeing safe and reliable operation in various conditions.
