High-quality battery cable for reliable power supply

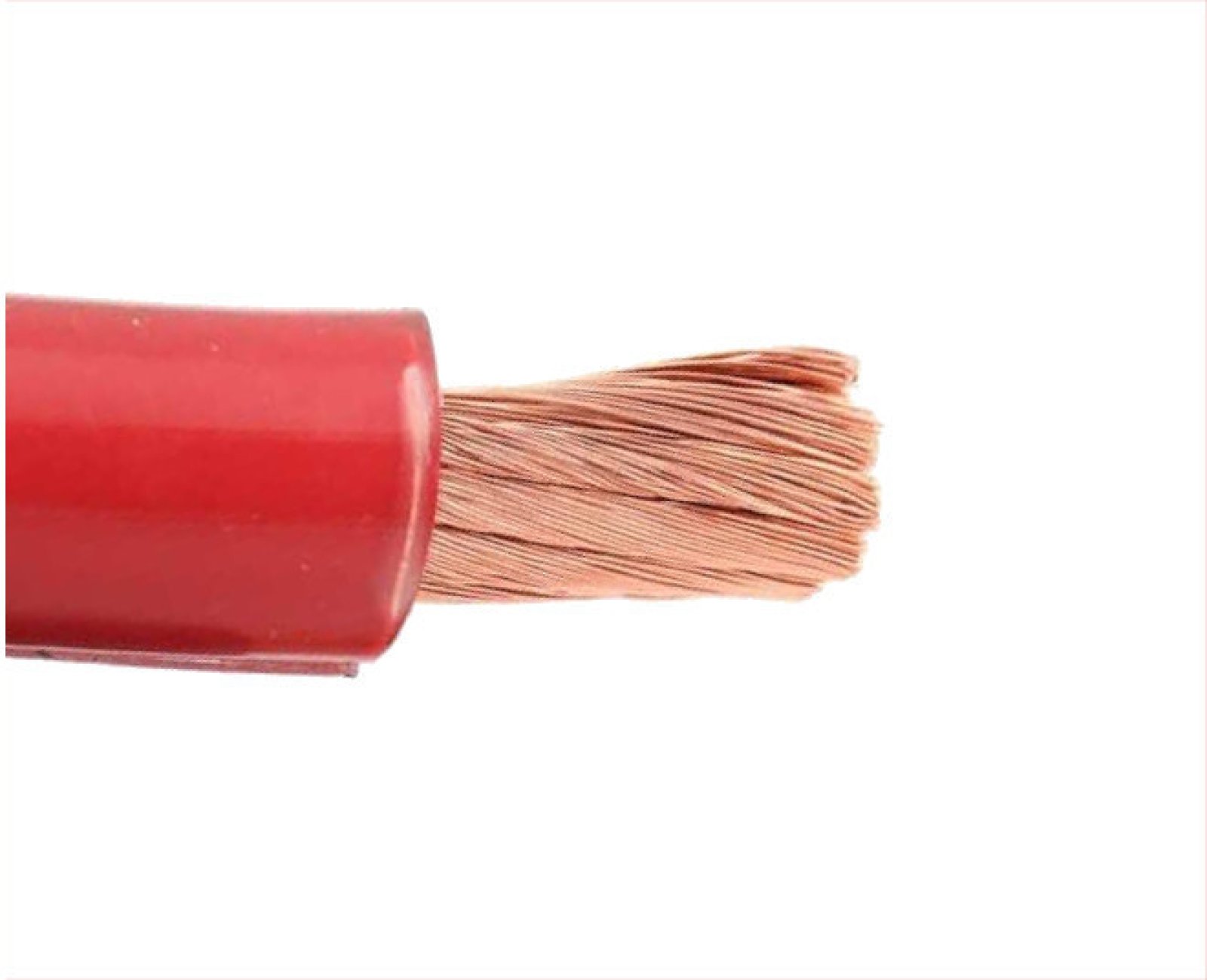

This 25mm² red battery cable is designed for efficient transmission of electric current in various applications. Thanks to the flexible copper core and durable PVC insulation, this cable offers optimal performance and safety.

Flexible and durable construction

The cable features a multi-stranded copper core, ensuring excellent conductivity and flexibility. The PVC insulation complies with IEC 60332-1 standard and has a hardness of 70±5 Shore A, making the cable resistant to wear and abrasion.

Technical specifications

• Color: Red
• Cable thickness: 25mm²
• Nominal construction: 324 strands of Ø0.30mm
• Maximum resistance: 0.85 Ohm/km
• Outer cable diameter: 10.35 – 10.65mm
• Minimum insulation thickness: 1.25mm
• Insulation material: Soft PVC according to IEC 60332-1
• Maximum voltage: 600V
• Temperature range: +5ºC to +70ºC
• Standards: IEC332-1/CEI EN 50265

Applications and use

This battery cable is suitable for connecting batteries and other electrical components in cars. The flexibility makes installation easy, even in tight spaces. The cable is suitable for systems up to 600V, especially for 12V and 24V applications.

Importance of the correct cable thickness

Choosing the right cable thickness is crucial to prevent voltage drop and overheating. For example, for a 350W inverter on a 12V battery with a distance of 3 meters, a minimum cable thickness of 20mm² is recommended. It is advisable to keep the distance between the power source and the consumer as short as possible and always choose a slightly thicker cable to minimize loss.

Order information

The battery cable is sold per meter. When ordering multiple meters, the cable is supplied in one piece, up to a maximum length of 50 meters. Note: custom-made products like this cable cannot be returned.

Summary

This 25mm² red battery cable combines flexibility, durability, and excellent electrical properties, making it an ideal choice for various automotive applications.
