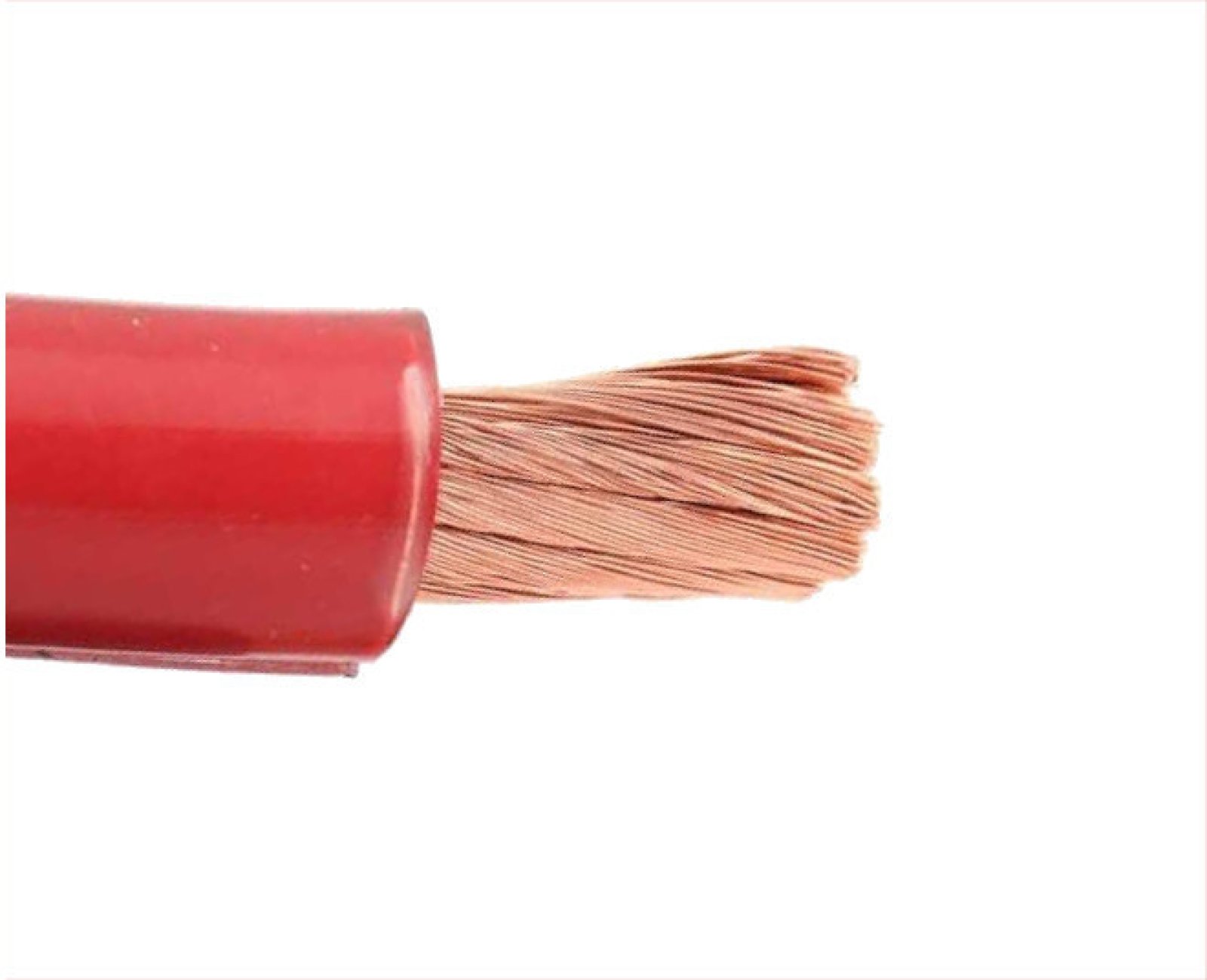

High-quality battery cable for reliable power supply

This 35mm² battery cable is designed for efficient connection and linking of batteries in various vehicles and installations. The core consists of electrolytically annealed copper, ensuring optimal conductivity and minimal resistance.

Flexible and durable construction

The cable is made up of 276 thin copper wires of 0.21 mm, resulting in a highly flexible structure. This makes installation easy, even in tight spaces. The PVC insulation with a thickness of 1.2 mm provides excellent protection against mechanical influences and wear.

Suitable for various applications

This battery cable is ideal for use in:

• Cars
• Motorhomes
• Boats
• Industrial installations

Thanks to the oil-resistant and double-insulated sheath, the cable is suitable for both dry and wet environments.

Technical specifications

• Conductor: Braided copper, 35mm²
• Conductor composition: 276 x 0.21 mm
• Insulation: PVC, 1.2 mm thick
• Outer diameter: 11.7 mm
• Nominal voltage: 450/750V
• Test voltage: 2500V
• Maximum current: 110A
• Temperature range: -40°C to +90°C

Safety and reliability

Choosing the right cable thickness is crucial to prevent voltage drop and overheating. For a maximum current of 110A, this 35mm² cable is suitable. For longer distances, it is recommended to calculate the required cable thickness to ensure optimal performance.

Order by desired length

The battery cable is sold per meter, so you can order exactly the length you need. The ordered length is cut to size, neatly coiled, and packaged for shipping.
