Applications and use

This single-core PVC cable of 1.0 mm² is suitable for various electrical installations, both in vehicles and industrial environments. Thanks to its flexible structure, the cable is easy to install, even in tight spaces.

Technical specifications

• Nominal conductor cross-section: 1.0 mm²
• Insulation material: Polyvinyl chloride (PVC)
• Color: Brown
• Nominal voltage: 300/500 V
• Temperature range: -40°C to +105°C
• Outer diameter: Approximately 2.8 mm
• Conductor material: Copper

Advantages of this cable

• Flexibility: The fine copper wires provide high bendability, making installation easier.
• Temperature resistance: Suitable for use in environments with temperatures ranging from -40°C to +105°C.
• Chemical resistance: Resistant to oils, fuels, and other corrosive substances, which increases durability.

Standards and certifications

This cable complies with the following standards:

• ISO 6722-1
• DIN 72551-6
• ECE-R 118

Additionally, the cable complies with REACH and RoHS regulations, meaning it is free from harmful substances such as chromium (VI), cadmium, lead, and mercury.

Packaging and length

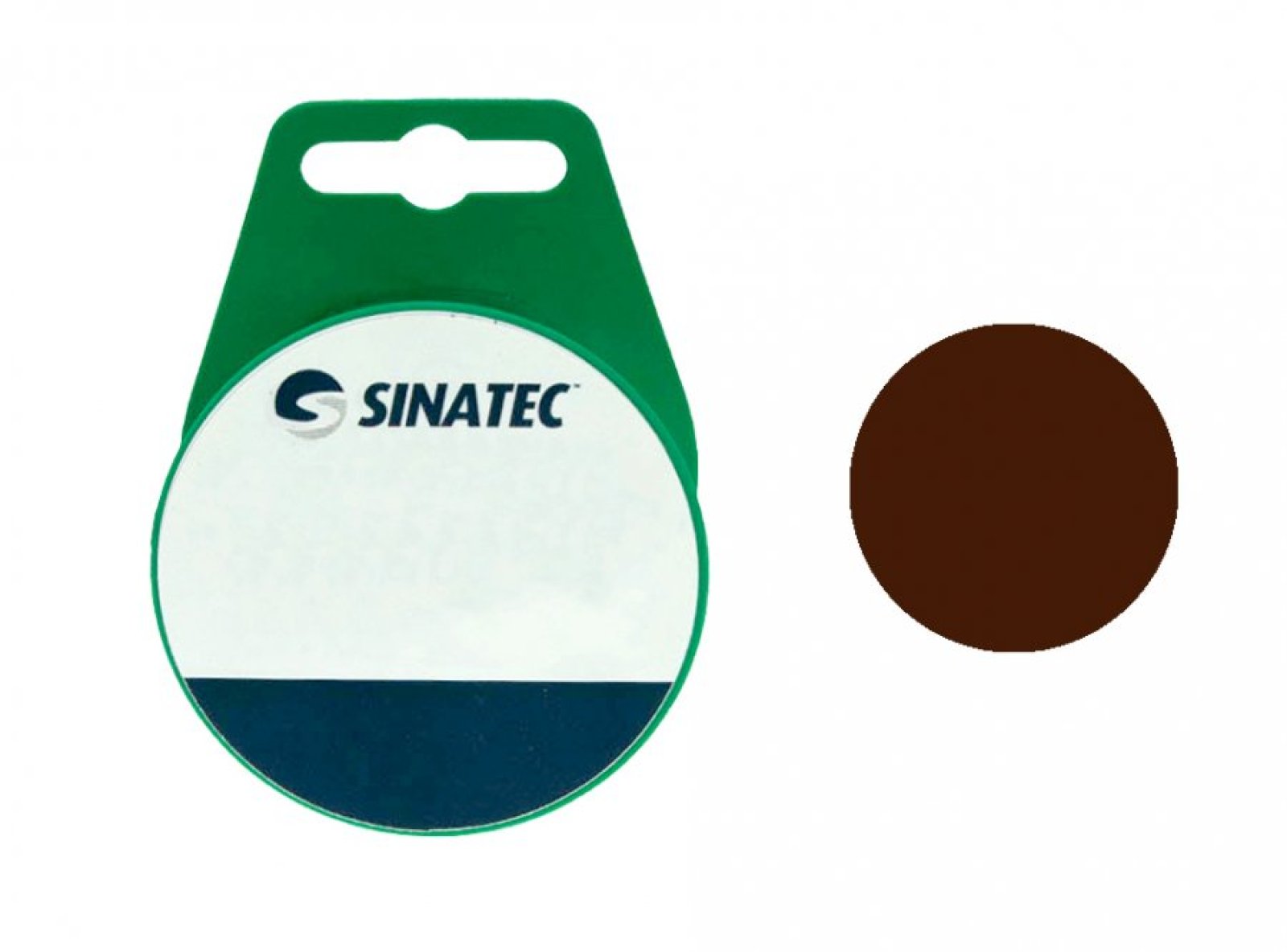

The cable is supplied on a mini roll of 15 meters, conveniently packed in a resealable plastic bag with clear indication of product number, size, color, and cable type.
