Reliable waterproof connections

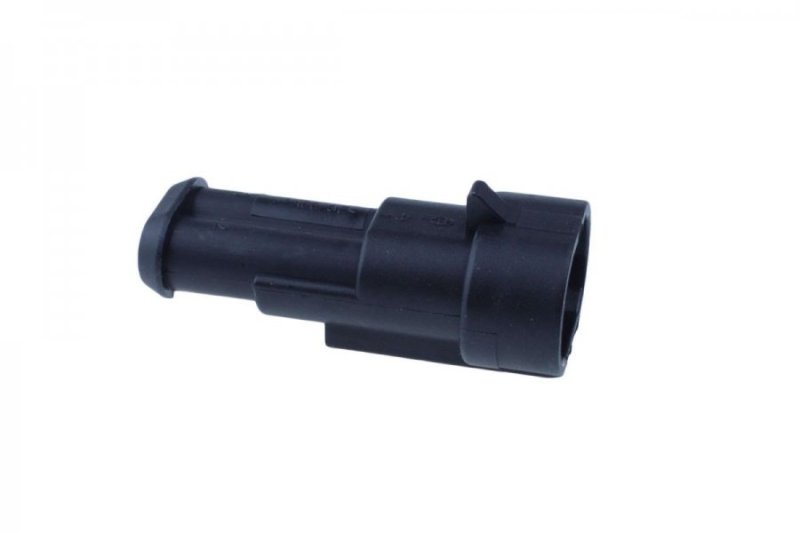

The AMP Superseal 1.5 2-pin female connectors are designed to meet the highest standards of waterproofing and reliability. They are ideal for applications in the automotive sector, agriculture, and mechanical engineering, where protection against moisture and dust is essential.

Technical specifications

• Number of poles: 2
• Rated current: up to 14A
• Rated voltage: up to 24V DC
• Operating temperature: -40°C to +125°C
• Protection class: IP67 according to IEC 529 and DIN 40050
• Housing material: Polyamide 6.6 (PA 6.6) with glass fiber reinforcement

Resistant to extreme conditions

These connectors are not only waterproof, but also resistant to:

• Ozone
• Salt
• Gasoline
• Diesel
• Brake fluid
• Engine oil

This makes them suitable for use in demanding environments where exposure to such substances is inevitable.

Easy installation

Installing the AMP Superseal 1.5 connectors is simple and efficient:

1. Slide the supplied sealing rubbers over the wires.
2. Crimp the contacts onto the exposed conductors with a suitable crimping tool.
3. Insert the wires with the crimped contacts into the back of the connector housing.
4. Ensure the contacts are correctly positioned and locked.

Applications

Thanks to their robust design and high degree of protection, these connectors are ideal for:

• Electrical systems in cars
• Agricultural machinery
• Industrial equipment
• Sensor connections

Set contents

This set contains 10 pieces of 2-pin female AMP Superseal 1.5 connectors, complete with the necessary sealing rubbers and contacts for quick and reliable installation.
