Reliable waterproof connections

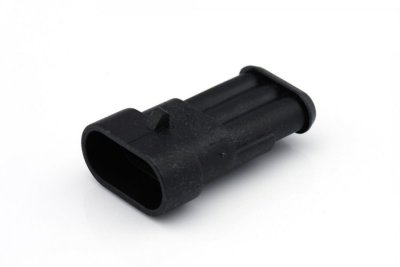

The AMP Superseal 1.5 3-pin female connector is designed to meet the strict requirements of modern electrical systems. Thanks to its IP67 rating, this connector offers excellent protection against water and dust, which is essential for demanding environments such as the automotive sector.

Robust and versatile design

This connector withstands extreme temperatures from -40°C to +125°C and is resistant to various chemicals, including gasoline, diesel, brake fluid, and engine oil. This makes the AMP Superseal 1.5 ideal for use in cars, motorcycles, boats, and agricultural vehicles.

Easy installation

Installing the AMP Superseal 1.5 is simple and efficient:

• Slide the yellow sealing rings over each wire.
• Crimp the terminals onto the exposed conductors using a suitable crimping tool.
• Slide the wires with crimped terminals into the back of the connector.
• Press the red locking clip into the front of the connector to secure the connection.

These steps ensure a safe and waterproof connection.

Technical specifications

• Number of positions: 3
• Contact type: Female
• Pitch: 6 mm
• Operating temperature: -40°C to +125°C
• Rated voltage: 24V DC
• Rated current: 14A
• Housing material: Polyamide 66
• IP rating: IP67

Applications

The AMP Superseal 1.5 3-pin female connector is suitable for various applications, including:

• Automotive: Reliable connections in cars and motorcycles.
• Marine: Waterproof connections in boats and ships.
• Agriculture: Robust connections in tractors and other agricultural machinery.
• Industrial machines: Safe electrical connections in heavy machinery.

Compatibility and accessories

For a complete and safe installation, it is important to use the right accessories. The connector is compatible with:

• Terminals: Suitable for conductor sizes from 0.5 mm² to 1.5 mm².
• Crimping tools: For precise crimping of the terminals.
• Sealing rings: To ensure the waterproofness of the connection.

By using these high-quality components, you are assured of a durable and reliable electrical connection in any situation.
