Robust and waterproof connections

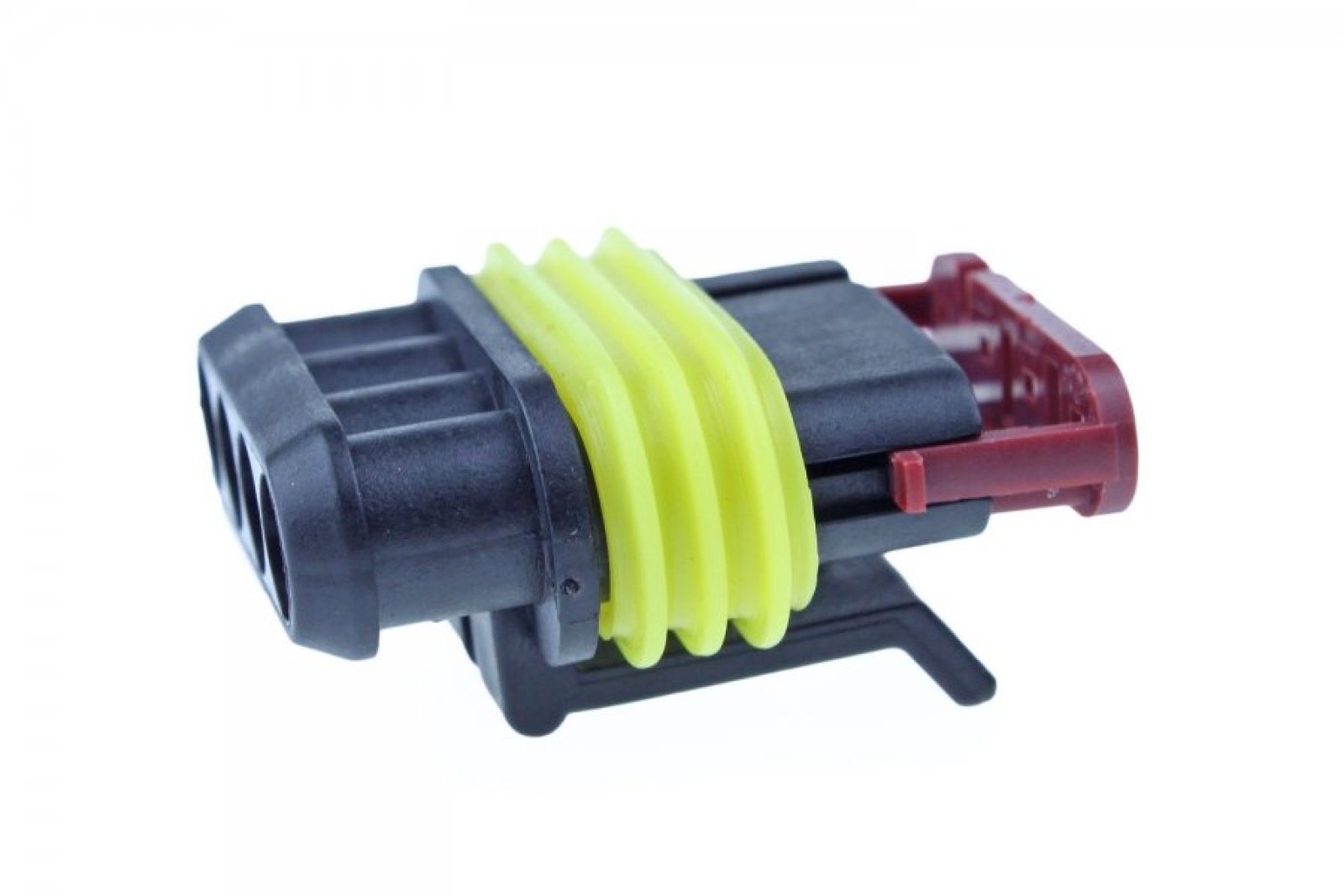

The AMP Superseal 1.5 4-pin male connector is designed to meet the strict requirements of the automotive industry. Thanks to its IP67 rating, this connector offers excellent protection against dust and water, which is essential for under-the-hood applications and other demanding environments.

High-quality materials and construction

This connector is made from glass fiber reinforced polyamide 6.6, providing high mechanical strength and durability. The material withstands extreme temperatures from -40°C to +125°C, making it suitable for various applications in cars, trucks, and off-road vehicles.

Easy installation and reliable performance

The AMP Superseal 1.5 connector is designed for easy assembly and reliable performance. Key features include:

• Compact design : Minimizes the space required for installation.
• Double locking : Ensures a secure and stable connection.
• Compatibility : Suitable for wire-to-wire and ECU applications.

Technical specifications

• Number of positions : 4
• Rated voltage : 24V
• Rated current : 14A
• Protection class : IP67
• Housing material : Glass fiber reinforced polyamide 6.6
• Temperature range : -40°C to +125°C

Applications

This connector is ideal for use in:

• Automotive sector : Suitable for cars, trucks, and buses.
• Agricultural machinery : Reliable connections in tractors and other agricultural equipment.
• Industrial machines : Applications where waterproof and robust connectors are required.

Compatibility and accessories

For a complete and reliable connection, it is important to use the correct female counterpart and accessories. The AMP Superseal 1.5 series offers a wide range of compatible components to meet specific needs.
