Reliable waterproof connections for demanding applications

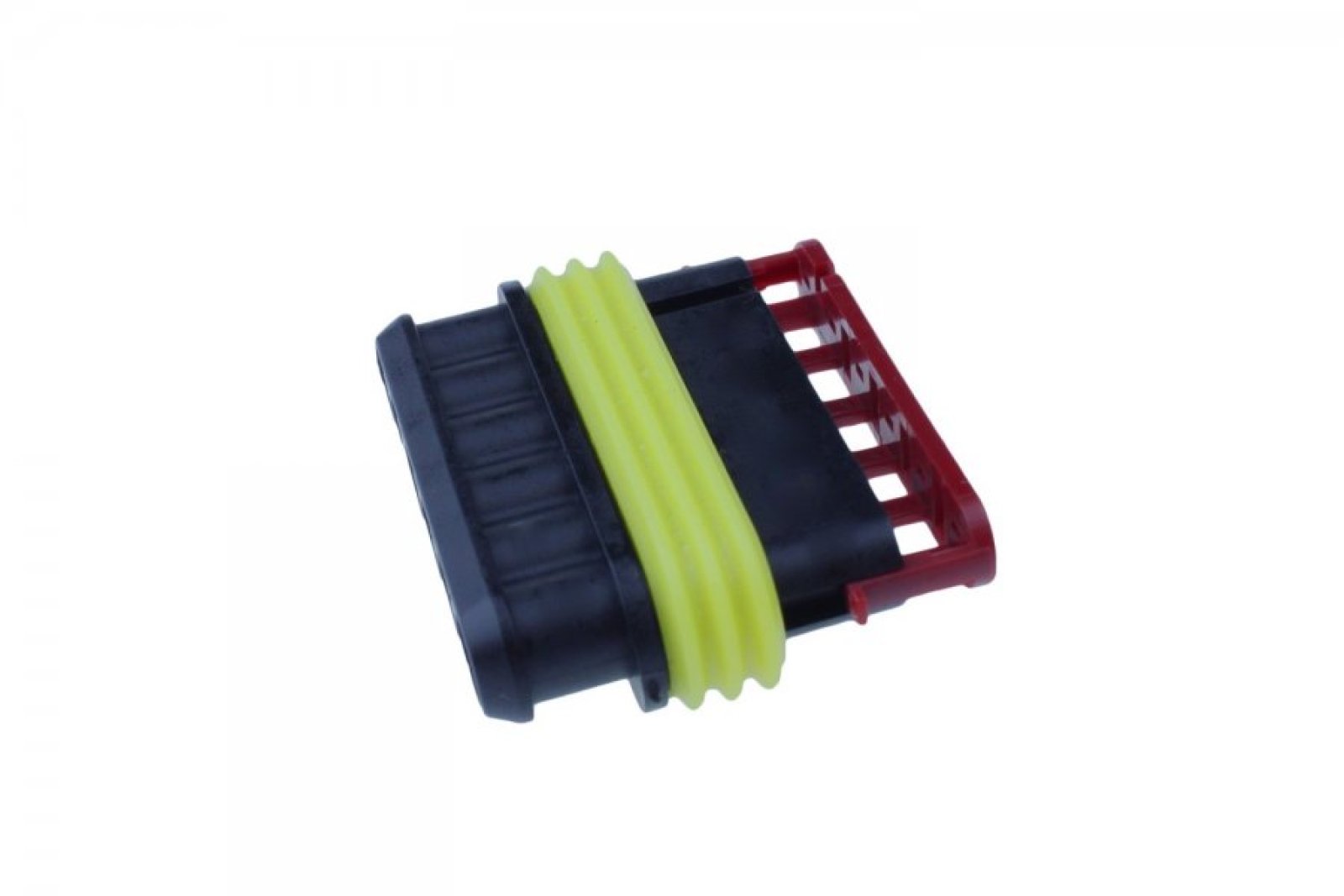

The AMP Superseal 1.5 6-pin male connector is designed to meet the strict requirements of waterproof and reliable electrical connections in the automotive, agricultural, and industrial sectors. Thanks to its IP67 rating, this connector offers excellent protection against dust and water, which is essential for applications in challenging environments.

Robust construction and material choice

This connector is made from glass fiber reinforced polyamide 6.6, providing high mechanical strength and durability. The material is resistant to various chemicals such as ozone, salts, gasoline, diesel, brake fluid, and engine oil, making the connector suitable for use in demanding conditions.

Technical specifications

• Number of positions: 6
• Rated voltage: 24V
• Maximum current: 14A
• Operating temperature range: -40°C to +125°C
• Contact material: Brass, tin-plated
• Wire range: 0.5 mm² to 1.5 mm²

Easy installation and secure locking

The AMP Superseal 1.5 connector is designed for easy assembly and reliable performance. The integrated secondary locking ensures that the terminals are correctly placed in the housing and prevents them from coming loose during use. This design minimizes the risk of installation errors and increases connection reliability.

Applications in various sectors

This connector is ideal for use in:

• Automotive: Sensors, ECUs, and other under-the-hood applications
• Agricultural machinery: Electrical systems exposed to moisture and dirt
• Industrial machines: Equipment requiring reliable and waterproof connections

Compatibility and versatility

The AMP Superseal 1.5 series is fully interchangeable with existing components and devices currently used in the industry. This makes it easy to integrate this connector into existing systems without extensive modifications.
