Reliable waterproof connections

The AMP Superseal 1.5 female connectors are designed to ensure waterproof and reliable electrical connections. They are resistant to various fluids such as gasoline, diesel, brake fluid, and engine oil, making them ideal for use in demanding environments.

Suitable for various applications

These connectors are suitable for wire sizes from 0.3 to 0.5 mm² and are supplied in sets of 50 pieces. They are ideal for applications in the automotive industry, agriculture, and mechanical engineering, where reliable and waterproof connections are essential.

Easy installation

Installing the AMP Superseal 1.5 connectors is simple and efficient:

• Preparation: Slide the supplied green sealing rubbers over the wires.
• Crimping: Use an appropriate crimping tool to securely attach the terminals to the exposed wires.
• Placement: Slide the crimped wires into the back of the connector until they click into place.
• Locking: Press the red locking tab into the front of the connector to secure the connection.

Technical specifications

• Number of poles: Available in 1- to 6-pole versions.
• Wire size: Suitable for 0.3 – 0.5 mm².
• Protection class: IP67, which guarantees complete protection against dust and water.
• Temperature range: -40°C to +125°C.

High-quality materials

The connectors are made from high-quality polyamide, ensuring a robust and durable construction. The contacts are made of phosphor bronze with a tin finish, providing excellent electrical conductivity and corrosion resistance.

Versatility in use

Thanks to their compact design and high reliability, the AMP Superseal 1.5 connectors are suitable for various applications, including:

• Automotive: For connecting sensors, lighting, and other electrical components.
• Agriculture: In tractors and other agricultural machinery where exposure to moisture and dirt is inevitable.
• Industrial machines: Where reliable and waterproof electrical connections are required.

Complete set

Each set contains:

• 50 female connectors.
• 50 green sealing rubbers suitable for 0.3 – 0.5 mm² wires.

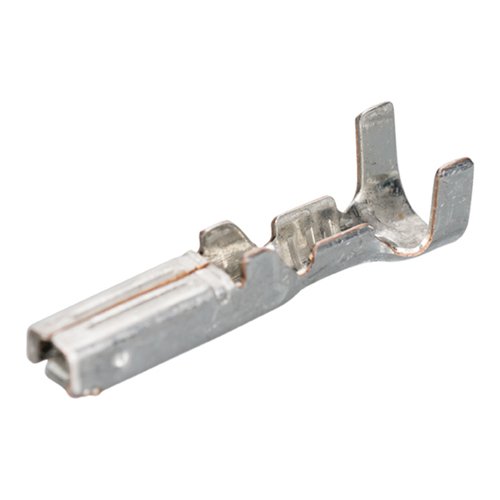

• 50 female crimp contacts.

With this complete set, you are assured of a reliable and waterproof electrical connection for your projects.
