Reliable waterproof connections for various applications

The AMP Superseal 2-pin connector set is designed to meet the highest standards of waterproofing and reliability. These connectors are ideal for use in the automotive industry, agriculture, and mechanical engineering, where they provide protection against moisture and other environmental influences.

Technical specifications

• Number of pins: 2
• Suitable for cable cross-section: 0.75 mm² to 2.5 mm²
• Voltage: Up to 24 V DC
• Current: Maximum 14 A
• Protection class: IP67
• Temperature range: -40°C to +125°C

Resistant to extreme conditions

These connectors are resistant to various aggressive substances such as ozone, salts, gasoline, diesel, brake fluid, and engine oil. This makes them suitable for applications where reliability under harsh conditions is required.

Easy installation

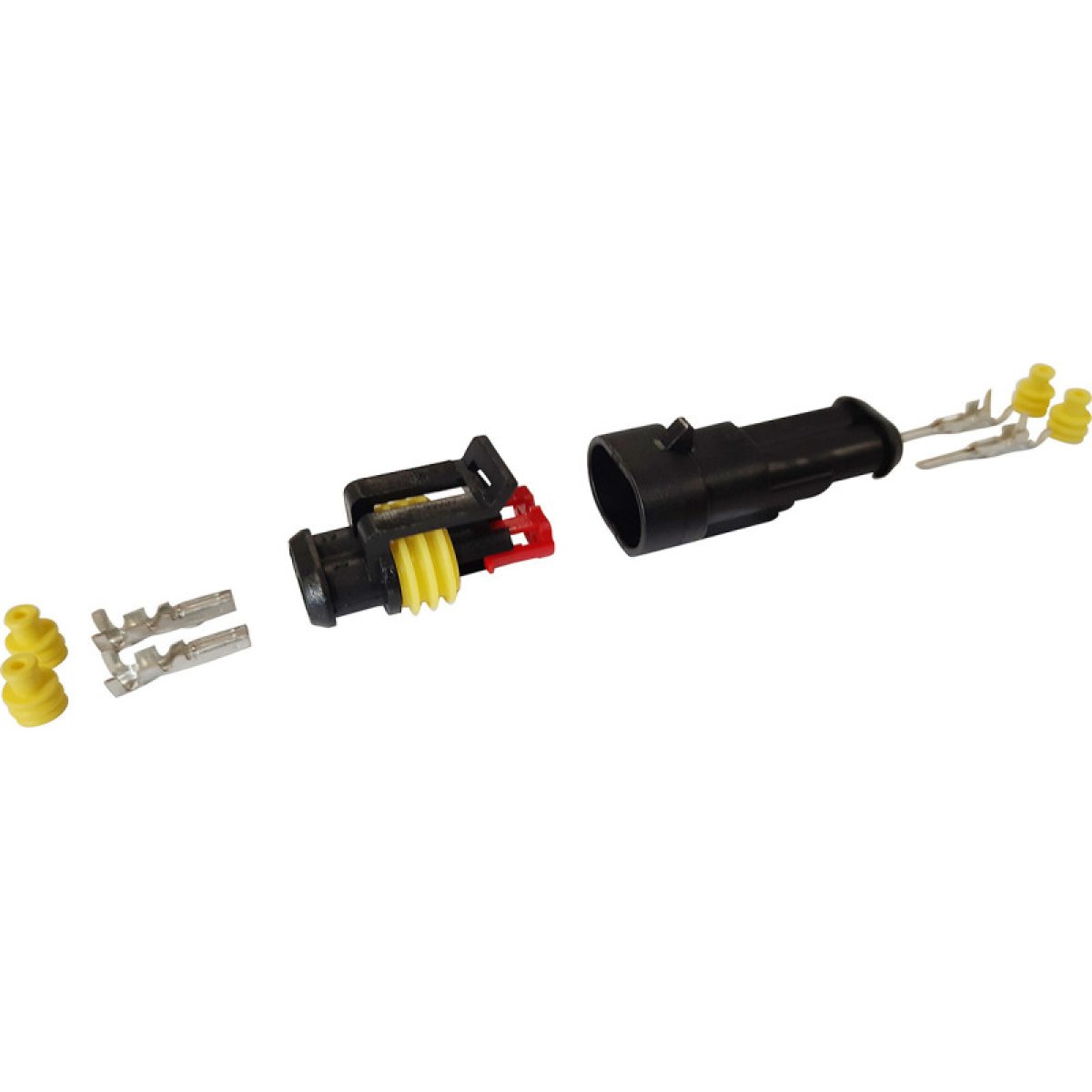

The set contains all necessary components for quick and efficient installation:

• 1x AMP Superseal socket housing 2-pin
• 1x AMP Superseal pin housing 2-pin
• 3x AMP Superseal female contact 0.75-1.5 mm²
• 3x AMP Superseal male contact 0.75-1.5 mm²
• 4x AMP Superseal single wire seal yellow for outer diameter 1.8-2.4 mm
• 4x AMP Superseal single wire seal green for outer diameter 1.4-1.7 mm

Durable materials

The housing is made of glass fiber reinforced PA 6.6, providing extra strength and long service life. The secondary contact lock is also made of glass fiber reinforced PA 6.6 and offers additional safety.

Areas of application

This connector set is suitable for various applications, including:

• Connecting sensors
• Vehicle lighting
• Electrical systems in agricultural machinery
• Industrial equipment

With the AMP Superseal 2-pin connector set, you are assured of a reliable and waterproof electrical connection, even under the most demanding conditions.
