Robust and waterproof electrical connections

The AMP Superseal 1.5mm² 4-pin connector set offers a reliable solution for electrical connections in demanding environments. Thanks to the IP67 rating, this connector is completely waterproof and dust-resistant, which is essential for applications in the automotive, marine, and industrial sectors.

Resistant to extreme conditions

These connectors are designed to operate under extreme temperatures from -40°C to +125°C. In addition, they are resistant to various chemicals such as gasoline, diesel, brake fluid, and engine oil, making them ideal for use in vehicles and machines exposed to harsh conditions.

Easy installation and versatility

The set includes both male and female connector housings, along with the necessary contacts and seals. This allows for quick and easy installation. The connectors are suitable for cable cross-sections from 0.75 mm² to 2.5 mm², providing flexibility for different applications.

• Number of pins: 4
• Voltage: Up to 24V
• Current: Maximum 14A
• Housing material: Glass fiber reinforced polyamide 6.6

Applications in various sectors

The AMP Superseal connectors are widely used in:

• Automotive: For connecting lighting, sensors, and other electrical components in cars.
• Marine sector: Suitable for boats and ships where waterproof connections are crucial.
• Industrial machines: For reliable electrical connections in heavy machinery and equipment.

High-quality materials for long-term use

The connector housings are made from glass fiber reinforced polyamide 6.6, ensuring high mechanical strength and durability. The silicone seals guarantee optimal protection against moisture and dust, extending the lifespan of the electrical connections.

Compatibility and standardization

These connectors comply with IEC 529 and DIN 40050 IP67 standards, meaning they are compatible with other components that meet these standards. This facilitates integration into existing systems and ensures reliable operation.

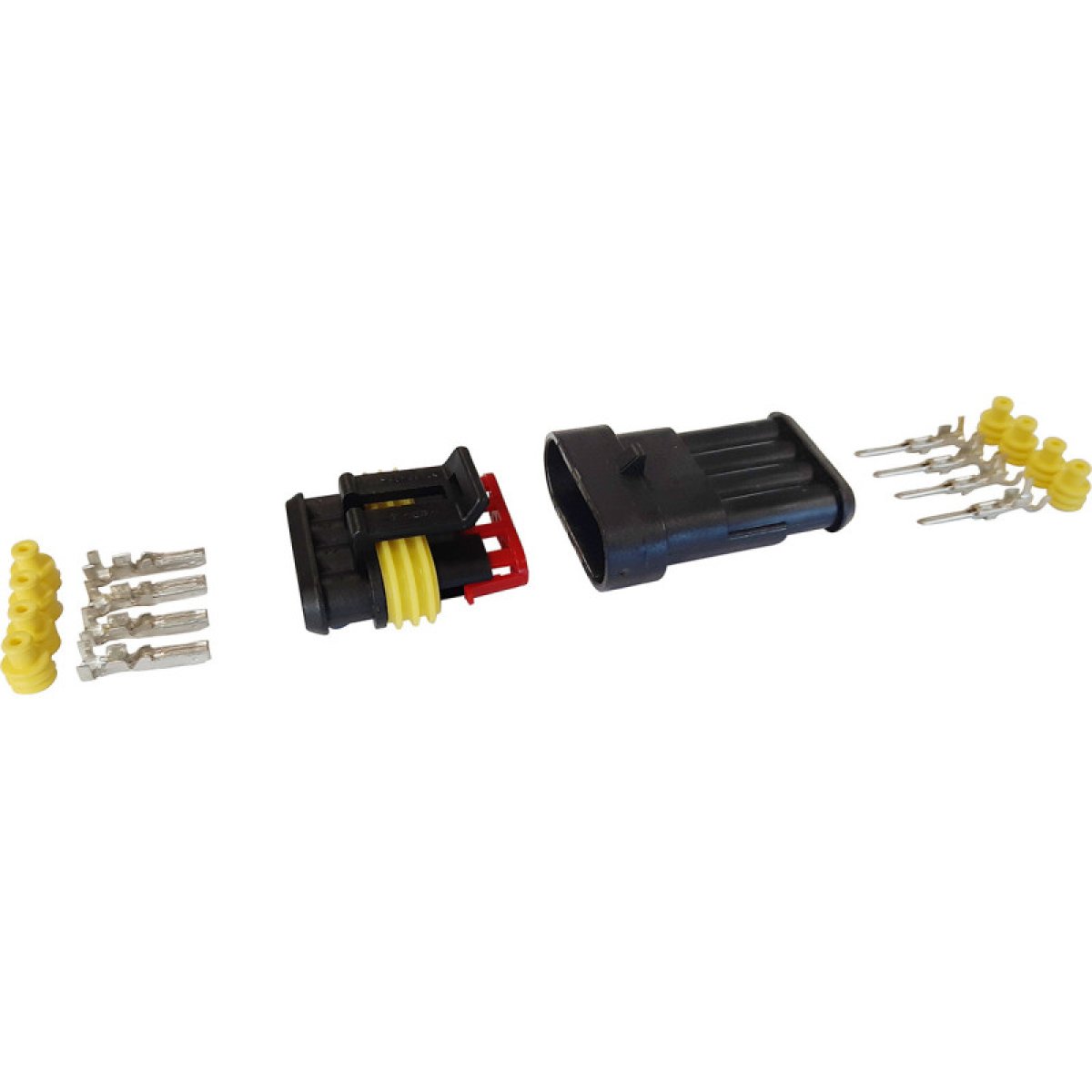

Set contents

• 1x AMP Superseal 1.5 Plug (male) 4-pin connector
• 1x AMP Superseal 1.5 Tab (female) 4-pin connector
• 8x 2 meter FLRY-B 1.5mm² vehicle cable in the colors red, black, brown, and green-red
• 4x TE AMP Superseal open barrel contact, gas-tight connected to cable/wire
• 4x TE silicone cable seal connected to cable

With this complete set, you have all the necessary components to create reliable and waterproof electrical connections for various applications.
