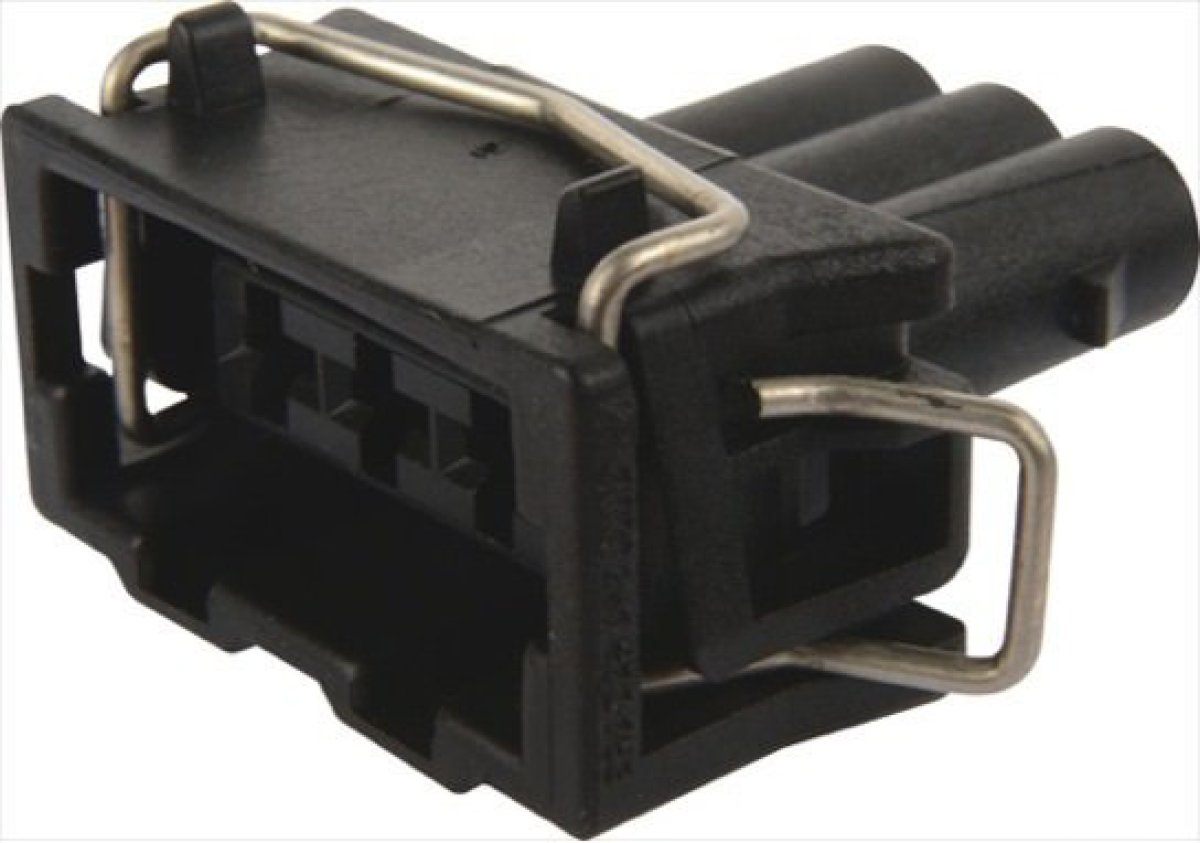

Overview of the Delphi 3-pin connector housing

The Delphi 3-pin connector housing is designed for the Metri-Pack 150 series and offers a reliable solution for electrical connections in various vehicle applications. Thanks to its compact design and robust construction, this connector housing is ideal for both in-cabin and under-hood applications.

Technical specifications

• Number of pins: 3
• Pitch width: 2.8 mm
• Rated voltage: 12-24 V
• Maximum current: 14 Amps
• Temperature range: -40°C to +125°C
• Protection class: IP65
• Material: PA66 with silicone seal

Advantages of the Delphi connector housing

• Compact size: Ideal for applications with limited space.
• Dust and waterproof: Suitable for use in demanding environments.
• Resistant to extreme temperatures and chemicals: Long-term reliability under various conditions.
• Wear-resistant: Increases the lifespan of electrical connections.

Application areas

This connector housing is specially developed for in-line vehicle applications and is suitable for various uses, including:

• Inside the cabin: For connecting internal electrical components.
• Under the hood: Resistant to high temperatures and exposure to fluids.
• Other vehicle applications: Where reliable and durable electrical connections are required.

Installation and compatibility

The Delphi 3-pin connector housing is designed for easy assembly and is compatible with the Metri-Pack 150 series terminals. This makes it possible to create custom connector configurations that meet specific requirements.

Why choose the Delphi 3-pin connector housing?

• Quality and reliability: Delphi is known for high-quality automotive components.
• Versatility: Suitable for various applications inside and outside the vehicle.
• Easy installation: Designed for quick and efficient assembly.

With the Delphi 3-pin connector housing, you are assured of a safe and efficient electrical connection that meets the high demands of modern vehicles.
