Reliable electrical connections for demanding applications

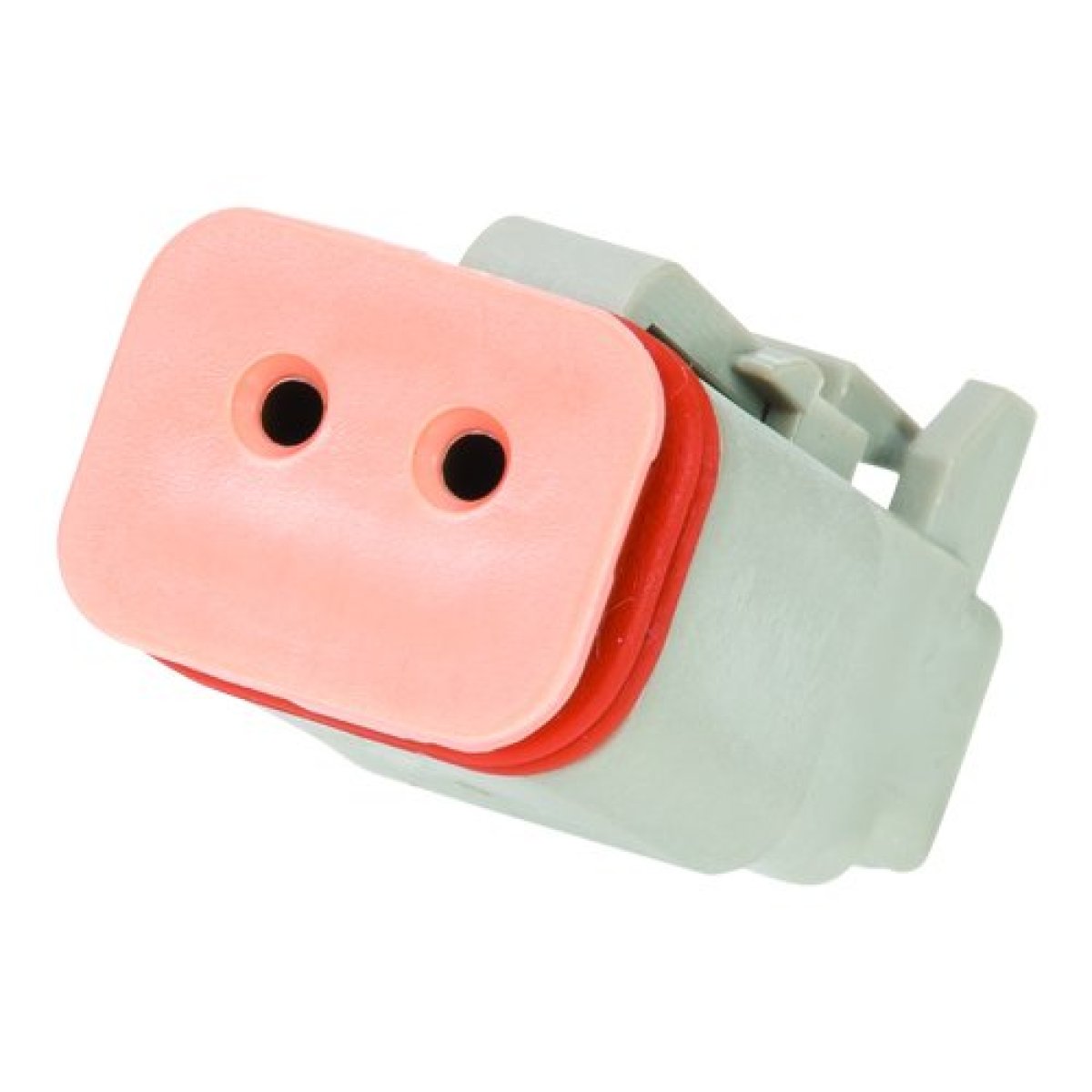

The Deutsch DT-04-2S 2-pole female plug is designed to meet the high demands of the automotive and industrial sectors. This connector offers a reliable and secure electrical connection, even under the most challenging conditions.

Robust and durable design

With a thermoplastic housing and silicone seals, the DT-04-2S is resistant to:

• High temperatures from -55°C to +125°C
• Exposure to ozone, salts, gasoline, diesel, brake fluid, and engine oil
• Dust and water tightness according to IP68 and IP6K9K standards

Easy installation and versatility

This plug is designed for ease of use and flexibility:

• Suitable for cable thicknesses from 0.75 mm² to 2 mm²
• Crimp connections for a strong and reliable connection
• Integrated cable seal for extra protection against moisture and dirt

Applications in various sectors

The DT-04-2S is ideal for use in:

• Electronics under the hood or in cabins
• Lighting systems
• CAN-bus applications with blue locking
• Environments with high vibrations and shocks

Technical specifications

• Number of positions: 2
• Rated current: 13 A at 125°C continuous load
• Rated voltage: up to 1500 V AC
• Pin size: 16
• Color: Grey

Complete delivery package

When purchasing the Deutsch DT-04-2S you receive:

• 1x 2-pole female plug housing
• 1x green wedge for correct alignment and locking of the contacts
• 2x female contacts suitable for cable cross-sections from 0.75 mm² to 2 mm²

With the Deutsch DT-04-2S 2-pole female plug, you are assured of a high-quality and reliable electrical connection, suitable for the most demanding applications.
