Reliable electrical connections for demanding applications

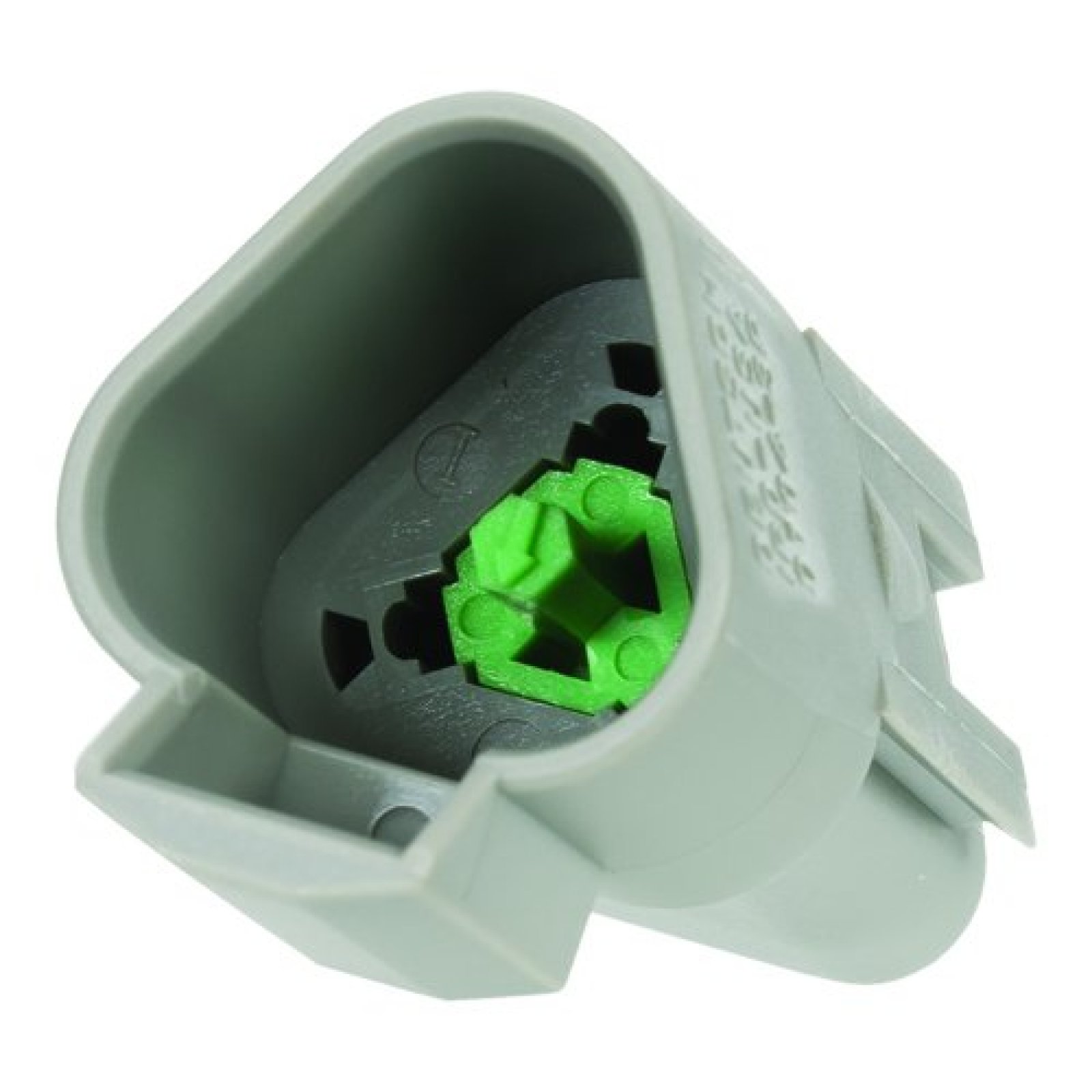

The DEUTSCH DT04-3P 3-pin plug is designed to meet the high demands of various industries, including automotive, agriculture, and marine. Thanks to its robust construction and high-quality materials, this plug offers a reliable and durable solution for your electrical connections.

Excellent technical specifications

• Number of positions: 3
• Rated current: 13 A
• Rated voltage: 250 V
• Operating temperature range: -55°C to +125°C
• Protection rating: IP68 and IP6K9K

These specifications guarantee optimal performance, even under extreme conditions.

High-quality materials and construction

The housing of the DT04-3P is made from glass fiber reinforced polyamide (PA GF), providing high mechanical strength and resistance to chemical influences. The integrated locking mechanism in the housing ensures a secure and firm connection, while the polarizing alignment prevents incorrect connections.

Easy installation and compatibility

This plug is suitable for cables with an insulation diameter of 2.23 to 3.68 mm and supports wire gauges from 14 AWG to 20 AWG. The 180° cable exit angle and the option for free hanging make installation flexible and easy. In addition, the DT04-3P is compatible with the DT06-3S mating plug, ensuring seamless integration into existing systems.

Applications in various sectors

The DEUTSCH DT04-3P plug is widely used in:

• Automotive: Reliable connections in cars and trucks
• Agriculture: Resistant to the harsh conditions in agricultural machinery
• Marine: Waterproof performance for maritime applications

Thanks to its versatility and robustness, this plug is an excellent choice for professionals seeking reliable electrical connections in demanding environments.

Accessories and additional components

For a complete installation, the following accessories are available:

• Wedgelock W3P: Ensures correct alignment and locking of the contacts
• Pin contacts: Available in various sizes and materials for optimal performance

These accessories are available separately and contribute to the reliability and durability of your electrical connections. (steckerladen.de)
