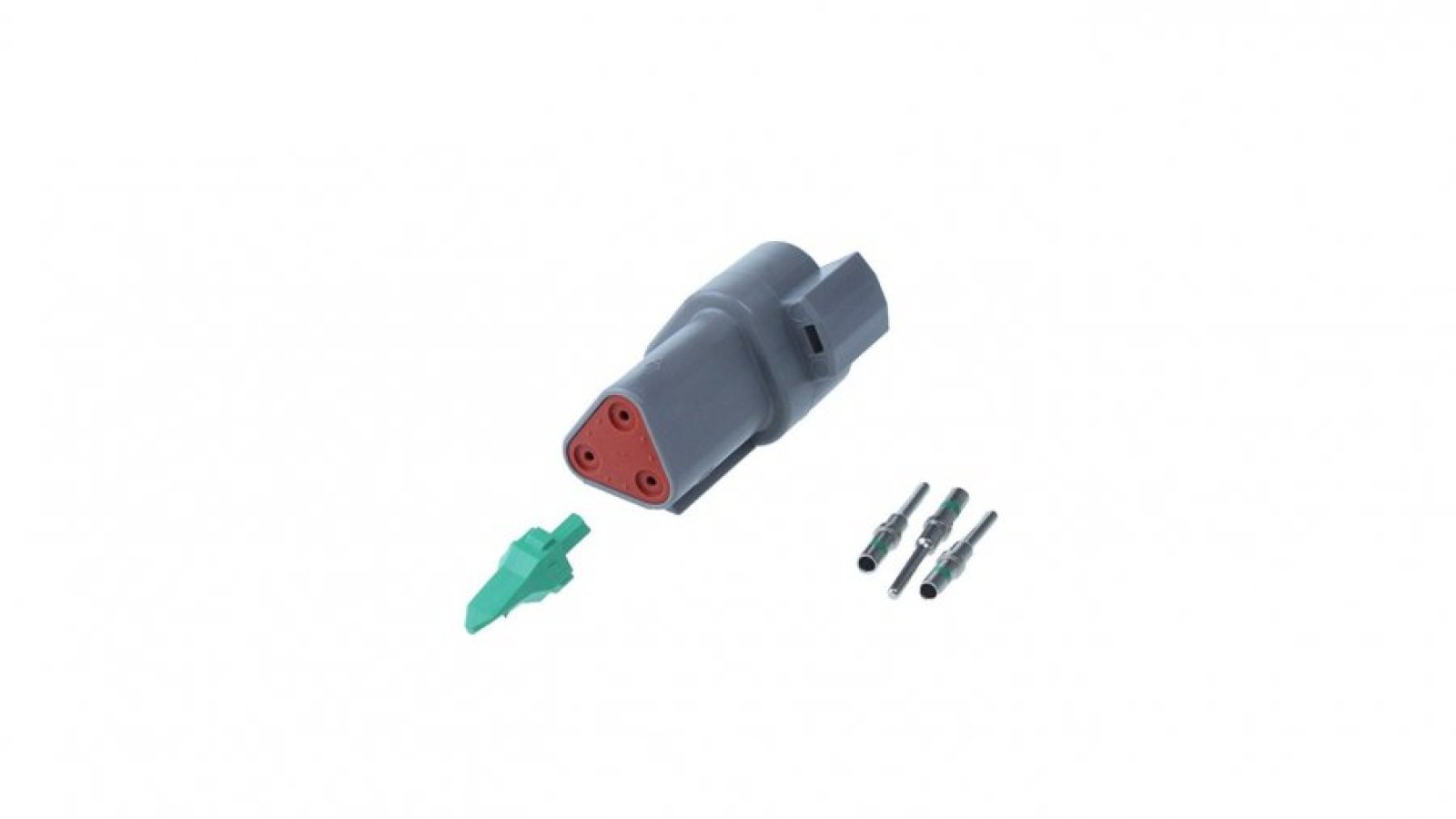

Reliable electrical connections with the DEUTSCH DT-04-3P plug

The DEUTSCH DT-04-3P plug is designed to ensure consistent and secure electrical connections, even under the most challenging conditions. With its 3-pole configuration, this plug is ideal for various applications in the automotive sector and beyond.

Robust design for demanding environments

This plug is made from glass fiber reinforced polyamide 6.6, providing high mechanical strength and resistance to chemical influences. The grey housing offers extra protection against environmental factors.

• Material: Polyamide 6.6 with glass fiber reinforcement
• Color: Grey

Excellent electrical performance

The DT-04-3P plug is suitable for applications up to 250V and can handle a maximum current of 13A. This makes it suitable for both low and medium voltage systems.

• Rated voltage: 250V
• Maximum current: 13A

Weatherproof and durable

Thanks to the IP68 and IP6K9K ratings, this plug is completely dust- and waterproof, even when submerged and during high-pressure cleaning. This ensures reliable performance in humid and dusty environments.

• Protection class: IP68, IP6K9K

Easy installation and compatibility

The plug is designed for cable mounting and is compatible with DEUTSCH DT series pin contacts. The integrated locking mechanisms ensure a secure and easy installation.

• Mounting type: Cable mounting (free-hanging)
• Compatible with: DEUTSCH DT series pin contacts

Applications in various sectors

The versatility of the DT-04-3P plug makes it suitable for a wide range of applications, including:

• Automotive: Cars, trucks, and buses
• Agriculture: Tractors and agricultural machinery
• Marine: Maritime equipment
• Industrial machines: Equipment that must withstand vibrations and shocks

With the DEUTSCH DT-04-3P plug, you are assured of a reliable and durable electrical connection, regardless of the application or environment.
