Robust and reliable electrical connections

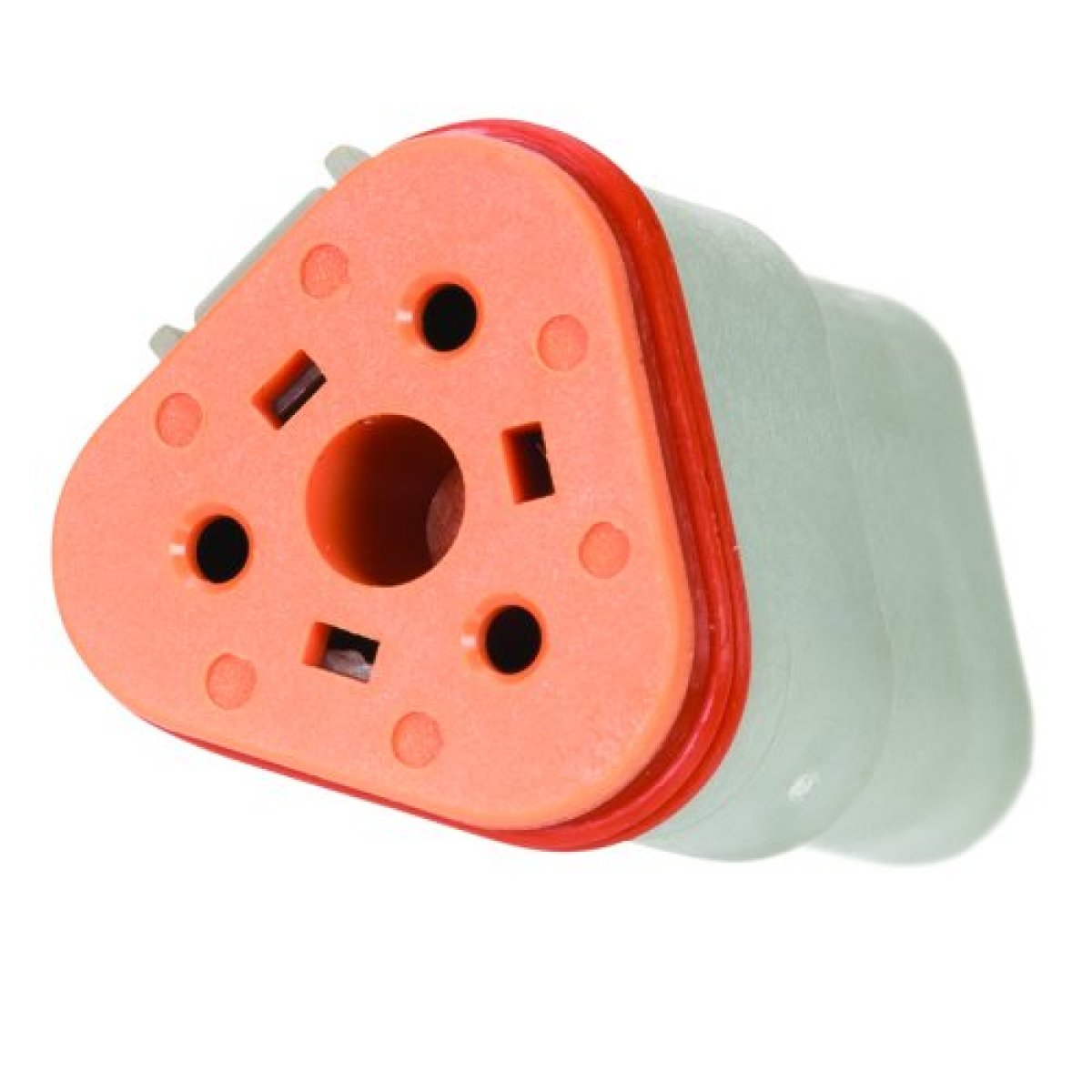

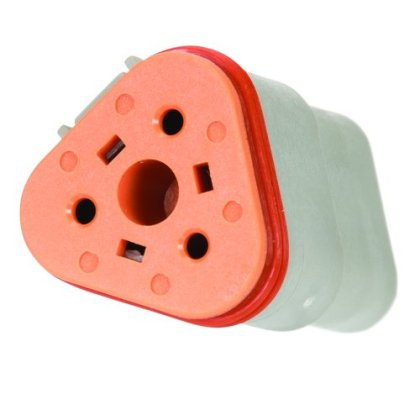

The DEUTSCH plug DT04-3S is a 3-pin female connector, designed for applications where reliability and durability are essential. This plug is ideal for use in demanding environments such as the automotive sector, agricultural machinery, and industrial equipment.

High-quality materials and construction

The housing of the DT04-3S is made from thermoplastic polyamide (PA), providing high resistance to chemicals, oils, and extreme temperatures. The integrated silicone seal guarantees a dust- and waterproof connection, in accordance with IP68 and IP6K9K standards. This makes the plug suitable for use in conditions with high humidity and dirt.

Technical specifications

• Number of positions: 3
• Rated current: 13 A
• Rated voltage: 250 V
• Temperature range: -55 °C to +125 °C
• Wire gauge compatibility: 14 AWG to 20 AWG
• Dimensions: 21.13 mm x 24.71 mm x 43.13 mm

Easy installation and compatibility

The DT04-3S is designed for easy assembly and disassembly, saving time and costs during installation and maintenance. The plug is compatible with the DT06-3S male connector, ensuring a secure and reliable connection. The integrated cable seal and locking mechanism in the housing provide extra convenience and reliability.

Applications

This plug is suitable for various applications, including:

• Automotive: Connecting electronic components under the hood or in the cabin.
• Agricultural machinery: Connections on or around combustion engines, transmissions, and other heat-producing parts.
• Industrial equipment: Lighting and other electrical systems in demanding environments.

Advantages of the DEUTSCH DT04-3S plug

• Resistant to extreme conditions: Designed to operate in environments with high humidity, dirt, and temperature fluctuations.
• User-friendly: Easy assembly and disassembly without special tools.
• Durable material: High-quality thermoplastic housing and silicone seal for long service life.

With the DEUTSCH plug DT04-3S, you choose a reliable and durable solution for your electrical connections in demanding applications.
