Reliable electrical connections for demanding applications

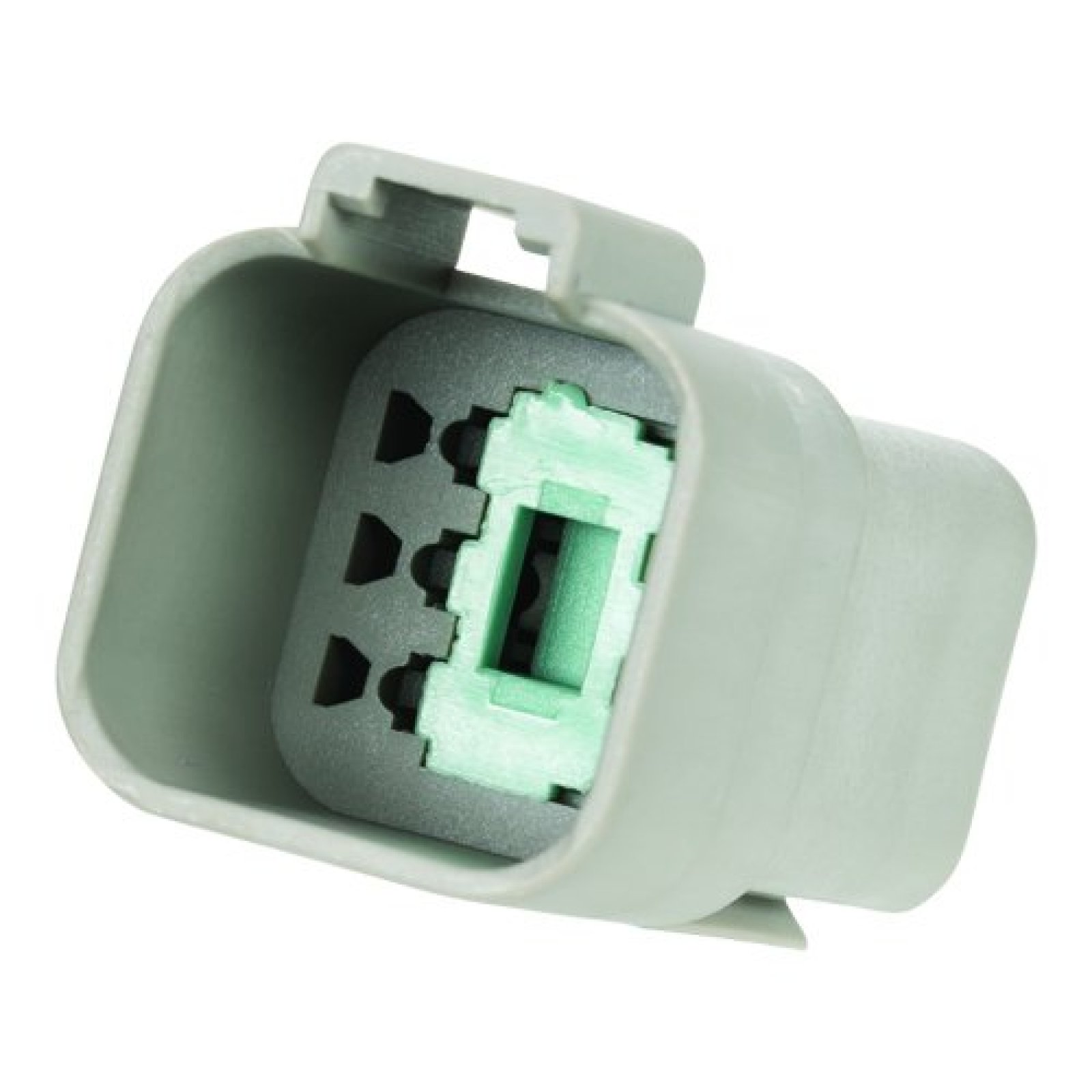

The DEUTSCH plug DT04-6P is a 6-pin male connector, designed for applications where reliability and durability are essential. This plug is ideal for use in cars, trucks, tractors, motorcycles, buses, agricultural machinery, mining equipment, and marine applications.

Excellent protection against environmental influences

Thanks to its robust construction, the DT04-6P offers excellent protection against various environmental factors:

• Resistant to chemicals and oils: The housing is resistant to exposure to various chemicals and oils.
• Waterproof design: The plug is designed to ensure waterproof connections, which is essential in humid or wet environments.
• Resistance to vibrations and shocks: Ideal for applications where vibrations and shocks are frequent.

Technical specifications

• Number of positions: 6
• Contact type: Male
• Contact size: 16
• Rated current: 13 A
• Operating voltage: 250 VDC/VAC
• Operating temperature range: -55°C to 125°C
• Housing material: PA GF (polyamide with glass fiber)
• Color: Grey
• Dimensions:
• Length: 45.92 mm
• Width: 20.83 mm
• Height: 24.16 mm
• Compatible wire gauge: 12-20 AWG

Easy installation and maintenance

The DT04-6P plug is supplied with a green wedgelock, which ensures correct alignment and locking of the metal contacts in the housing. This design makes both installation and removal easy, saving time and costs during maintenance work.

Applications in various sectors

This plug is suitable for a wide range of applications, including:

• Automotive: Suitable for cars, trucks, and buses.
• Agriculture: Applicable in tractors and other agricultural machinery.
• Mining and marine: Resistant to the harsh conditions in these sectors.

Compatibility with other DEUTSCH components

The DT04-6P plug is compatible with the DT06-6S socket, ensuring a safe and reliable connection.

Compliance with industry standards

This plug meets the SAE J2030 standard and has an IP68 and IP6K9K rating, indicating excellent protection against dust and water.
