Reliable electrical connections for demanding applications

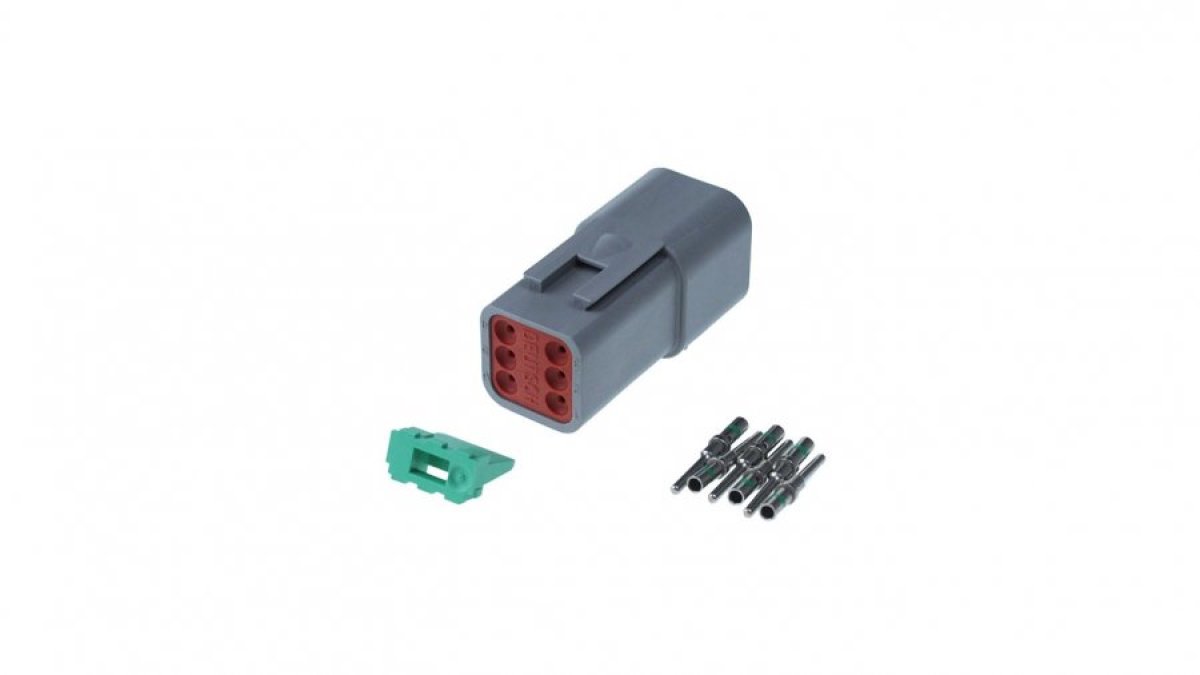

The Deutsch DT-04-6P 6-pin plug is designed to meet the high demands of various industrial and automotive applications. With its robust construction and reliable performance, this plug is ideal for situations where a consistent and safe electrical connection is crucial.

Features and specifications

• Number of positions: 6
• Contact type: Pin
• Contact size: Size 16
• Rated current: 13 A
• Rated voltage: 250 V
• Operating temperature range: -55°C to 125°C
• Protection rating: IP68 and IP6K9K

Durable design for extreme conditions

The housing of the DT-04-6P is made from high-quality thermoplastic material, providing excellent resistance to mechanical stress and chemical influences. The integrated silicone seals offer effective protection against moisture and dust, making the plug suitable for use in challenging environments.

Easy installation and compatibility

This plug is designed for quick and easy installation. The integrated locking mechanism ensures a firm and secure connection, while the polarization prevents incorrect plugging. The DT-04-6P is compatible with the DT series pin contacts and can be used with various cable sizes, ranging from 14 AWG to 20 AWG.

Applications

• Automotive: Suitable for electrical systems in cars, trucks, and other vehicles.
• Industrial machines: Reliable connections for various industrial equipment.
• Agricultural vehicles: Resistant to the harsh conditions in the agricultural sector.

Technical dimensions

• Length: 45.92 mm
• Width: 20.83 mm
• Height: 24.16 mm
• Row spacing: 4.45 mm

With the Deutsch DT-04-6P 6-pin plug, you are assured of a reliable and durable electrical connection, even in the most demanding conditions.
