Robust 6-pin female connector for demanding applications

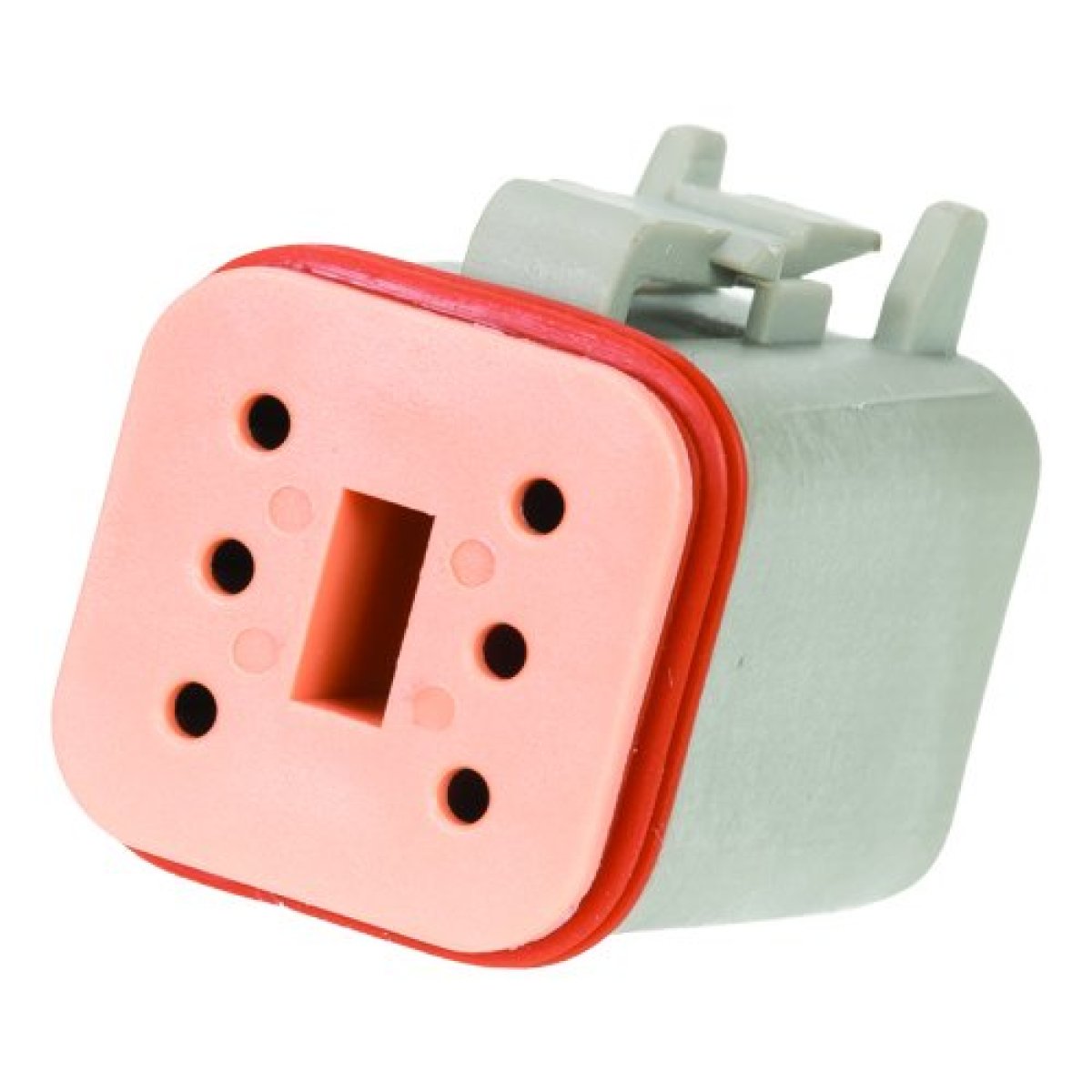

The DEUTSCH connector DT-04-6S is a high-quality 6-pin female connector, designed for reliable electrical connections in challenging environments. Thanks to its thermoplastic housing and silicone seals, this connector is resistant to extreme temperatures and humidity.

Applications in various sectors

This connector is ideal for use in a variety of sectors, including:

• Trucks and buses
• Off-highway vehicles
• Construction machinery
• Agricultural equipment
• Mining
• Emergency vehicles
• Forestry
• Recreational vehicles
• Marine applications
• Automotive

Technical specifications

• Number of positions: 6
• Contact spacing: 9.12 mm
• Gender: Female (receptacle)
• Mounting type: Cable mount / free-hanging
• Terminal type: Crimp
• Wire gauge: 14-20 AWG
• Color: Grey
• Rated current: 13 A
• Rated voltage: 250 V
• Operating temperature: -55°C to +125°C
• Protection class: IP68

Durable and reliable design

The thermoplastic housing offers a wide operating temperature range, while the silicone rear wire and interface seals provide resistance to extreme conditions of temperature and humidity. This makes the connector suitable for applications where even minor degradation in connection can be critical.

Easy installation and compatibility

The connector is designed for easy assembly and is compatible with the DT06-6S plug. The integrated locking mechanism in the housing ensures a secure and reliable connection without additional fasteners.

Dimensions and weight

• Length: 45.92 mm
• Width: 20.83 mm
• Height: 24.16 mm
• Weight per piece: 10 g

With these specifications, the DEUTSCH connector DT-04-6S offers a reliable solution for your electrical connection needs in demanding environments.
