Robust and Reliable Connections

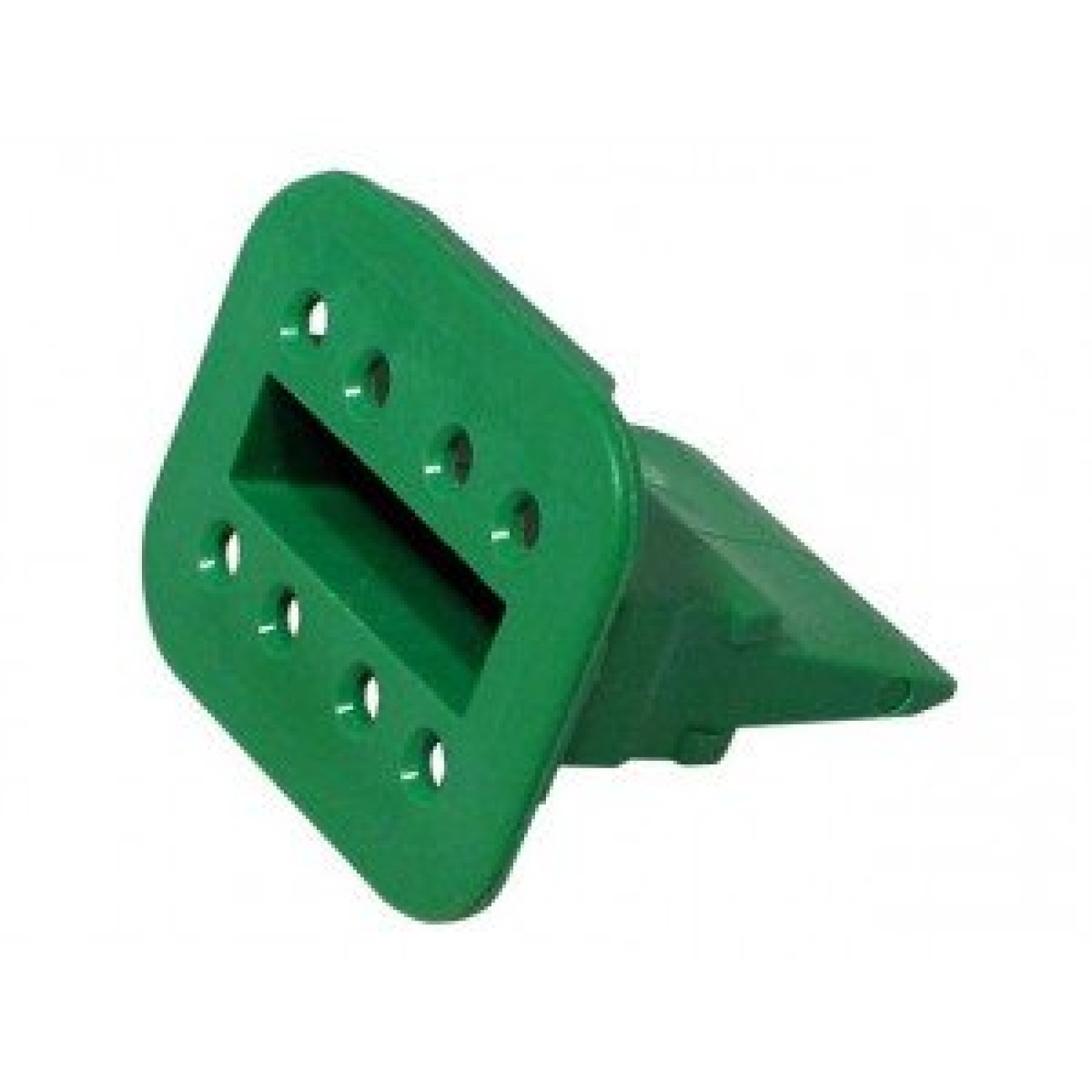

The Deutsch WIG DT series 8-pin male connector is designed for applications where reliability and durability are essential. This connector provides a strong and secure connection for various electrical systems.

Features and Specifications

• Number of pins: 8
• Contact size: 16 (13 amps continuous per contact)
• Wire range: 14-20 AWG (2.50-0.50 mm²)
• Housing material: Thermoplastic
• Temperature range: -55°C to +125°C
• Dimensions:
• Length: 30.94 mm
• Height: 19.71 mm
• Width: 37.21 mm

Applications

This connector is ideal for use in:

• Automotive industry: Reliable connections in vehicles.
• Industrial machinery: Resistant to harsh conditions.
• Agricultural equipment: Durable in demanding environments.

Benefits

• Environmentally resistant: Resistant to moisture, dust, and other contaminants.
• Easy installation: Integrated locking for quick and secure coupling.
• Versatility: Suitable for various wire sizes and applications.

Accessories and Compatibility

For a complete installation, the following accessories are available:

• Wedgelocks: For extra contact retention and alignment.
• Sealing plugs: For sealing unused positions.
• Mounting clips: For panel mounting and extra stability.

Maintenance and Use

Regular maintenance and inspection of the connectors ensure optimal performance and longer lifespan. Make sure the connectors are correctly installed and all seals are intact to provide the best protection against environmental influences.
