Robust and Reliable Connections

The Deutsch WIG DT series 6-pin female connector is designed to meet the high demands of the automotive sector. This connector provides a reliable and waterproof connection for various electrical applications in vehicles.

Technical Specifications

• Number of pins: 6
• Suitable wire gauge: 0.5 - 2 mm²
• Rated current: 13 A
• Rated voltage: 1500 V/AC
• Protection class: IP68
• Temperature range: -55°C to +125°C
• Housing material: Thermoplastic

Applications

This connector is ideal for use in:

• Cars
• Trucks
• Tractors
• Motorcycles
• Buses
• Agricultural machinery
• Mining equipment
• Marine

Advantages of the Deutsch WIG DT series Connector

• Waterproof connection: Thanks to the IP68 rating, the connector is fully protected against dust and prolonged immersion in water.
• Resistant to extreme conditions: The thermoplastic housing and silicone seals provide resistance to chemicals, oils, ozone, and salts.
• Easy installation and removal: The smart design allows the connector to be easily assembled and disassembled, saving time and costs.

Compatibility and Accessories

For a complete installation, the following accessories are available:

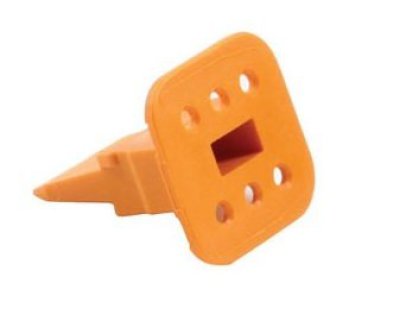

• Wedgelock W6S: For aligning and securing the metal contacts in the housing.
• Matching male connector: For a complete and secure connection.

Quality and Durability

The Deutsch WIG DT series connectors are known for their high quality and durability, making them an excellent choice for demanding applications in the automotive sector.
