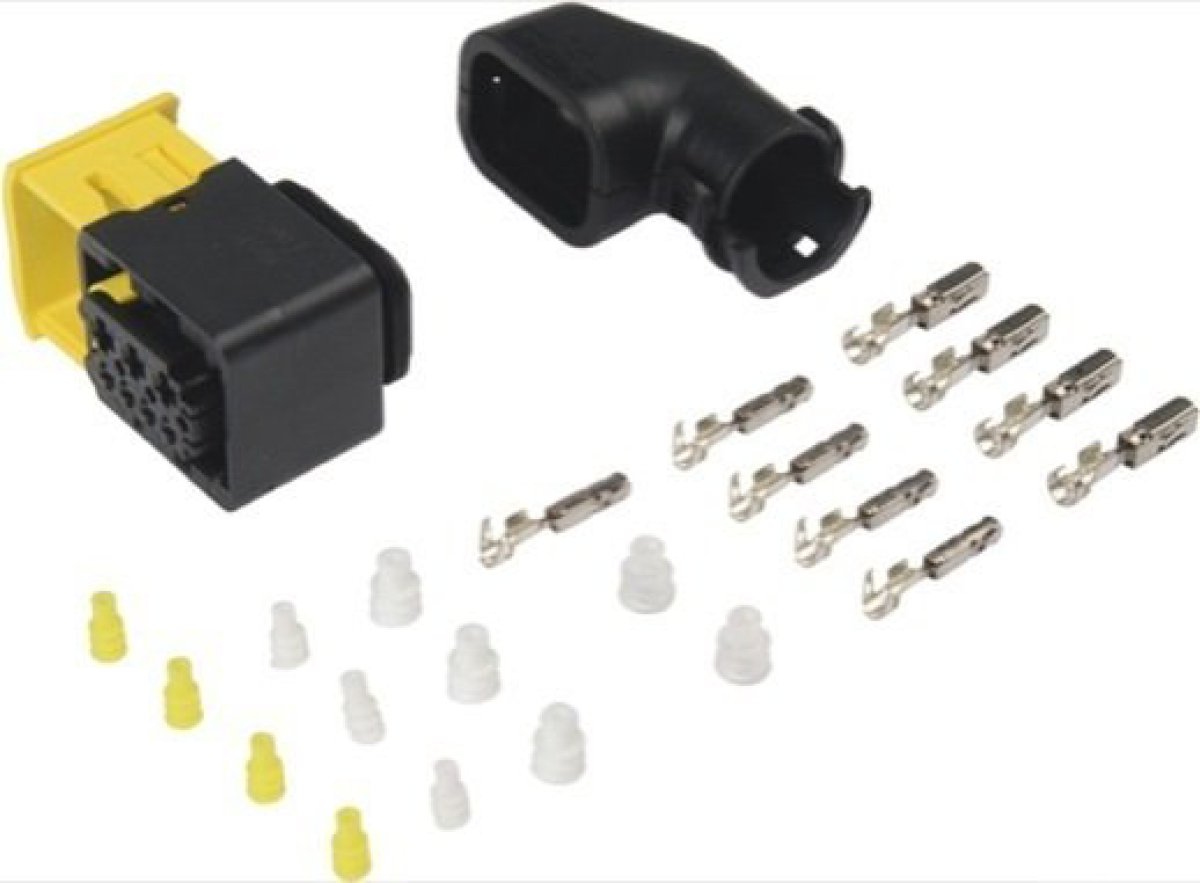

Robust 7-pole HDSCS connector housing set

This 7-pole HDSCS connector housing set is designed for demanding automotive applications. The housing is made from high-quality, glass fiber reinforced PBT, providing excellent mechanical strength and durability.

Reliable sealing and protection

With an IP67 rating, this connector offers reliable sealing against dust and water, making it suitable for use in harsh environments. The integrated secondary locking ensures a secure and stable connection, even under vibration and mechanical stress.

Flexible application possibilities

This connector is suitable for various applications, including:

• Taillights
• AdBlue tanks and pump systems
• Exhaust systems

Thanks to its versatility and robustness, this connector is an ideal choice for both commercial vehicles and off-road applications.

Technical specifications

• Number of poles: 7
• Contact widths: 1.5 mm and 2.8 mm
• Housing material: Glass fiber reinforced PBT
• Protection class: IP67
• Temperature range: -40°C to +140°C
• Rated voltage: Up to 42 V

Compatibility with OE numbers

This connector is compatible with taillights with the following OE numbers:

• A0035440903
• A0035441703
• A003544170328
• A003544160328
• A0035441603
• A0035440803
• A0035441803
• A0025447390

Easy installation and maintenance

The connector features a sliding lock for easy and secure coupling. The integrated secondary locking ensures correct alignment and retention of the contacts, contributing to a reliable and durable connection.
