Robust design for demanding applications

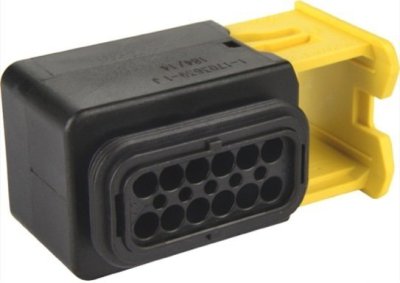

The TE Connectivity HDSCS (Heavy Duty Sealed Connector Series) connector housing is specially designed to meet the stringent requirements of commercial vehicles and off-road applications. Thanks to the use of UL94 V-0 rated thermoplastic material, this housing offers excellent performance under harsh conditions.

Reliable sealing and protection

With an IP67 rating, this 12-pole housing provides effective protection against dust and water, which is essential for applications in harsh environments. When combined with a backshell, the protection can be increased to IP6K9K, offering extra assurance against high-pressure water ingress.

Easy installation and maintenance

The integrated secondary locking ensures correct alignment and retention of the contacts, resulting in an audible click when fully locked. This mechanism facilitates both installation and maintenance, while reducing the risk of faulty connections.

Flexibility in applications

This housing is suitable for both in-line and flange mounting and can be used in wire-to-wire or wire-to-device configurations. This makes it a versatile choice for various applications within the automotive sector.

Compatibility with various contacts

The housing accepts AMP MCP 1.5K contacts, which must be ordered separately. These contacts are designed for a wide range of wire sizes and current ratings, providing flexibility when designing electrical systems.

Application areas

This connector housing is ideal for use in various vehicles and machines, including:

• Trucks
• Buses
• Construction machinery
• Agricultural vehicles
• Special vehicles
• Automotive applications

Technical specifications

• Number of poles: 12
• Housing material: Glass-filled PBT
• Operating temperature range: -40°C to +140°C
• Protection class: IP67 (IP6K9K with backshell)
• Mounting types: In-line, flange mounting
• Compatible contacts: AMP MCP 1.5K

With these features, the TE Connectivity HDSCS 12-pole connector housing offers a reliable and durable solution for electrical connections in demanding environments.
