Robust construction for demanding applications

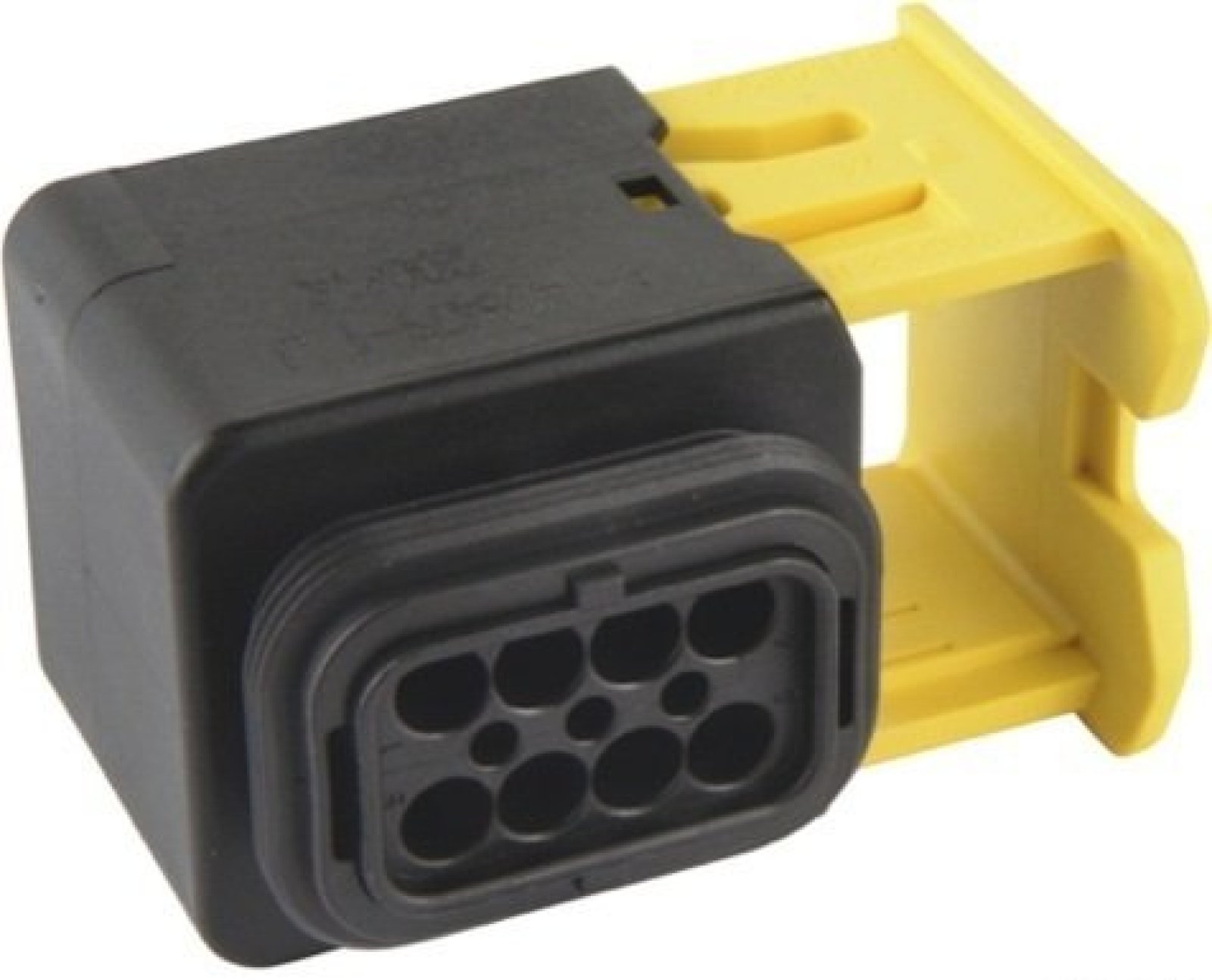

The HDSCS connector housing MCP 1.5 8-pin from TE Connectivity is designed to meet the strict requirements of the commercial vehicle industry and off-road applications. Made from UL94 V-0 rated thermoplastic material, this housing offers excellent resistance to mechanical stress and high vibrations.

Reliable sealing and protection

With an IP67 rating, this connector housing provides effective protection against dust and water, which is essential for applications in harsh environments. When used with a backshell, the protection can be increased to IP6K9K, offering extra assurance in extreme conditions.

Advanced locking mechanisms

The integrated secondary locking ensures correct alignment and retention of the contacts, with an audible click when fully locked. A slide lock facilitates coupling and uncoupling and ensures a secure connection. In addition, polarization and key coding prevent incorrect mating and minimize insertion force. (rs-online.id)

Flexibility in applications

This 8-pin housing is suitable for both wire-to-wire and wire-to-device configurations, offering versatility in various applications. The housing accepts AMP MCP 1.5K contacts with a Single Wire Sealing System (SWS), which must be ordered separately. (rs-online.id)

Technical specifications

• Number of pins: 8
• Contact size: 1.5 mm
• Voltage up to: 36 V
• Protection class: IP67
• Operating temperature range: -40°C to +140°C
• Housing material: Glass-filled PBT
• Color: Black

Application areas

This connector housing is ideal for use in various vehicles and machines, including:

• Trucks
• Buses
• Off-road vehicles
• Construction machinery
• Agricultural machinery
• Emergency vehicles
• Forestry equipment
• Recreational vehicles
• Marine applications

Accessories and compatibility

For optimal performance and protection, various accessories can be used, such as backshells, protective caps, sealing plugs, and mounting slides. These accessories enhance the functionality and durability of the connector in demanding environments.
