Robust construction for demanding applications

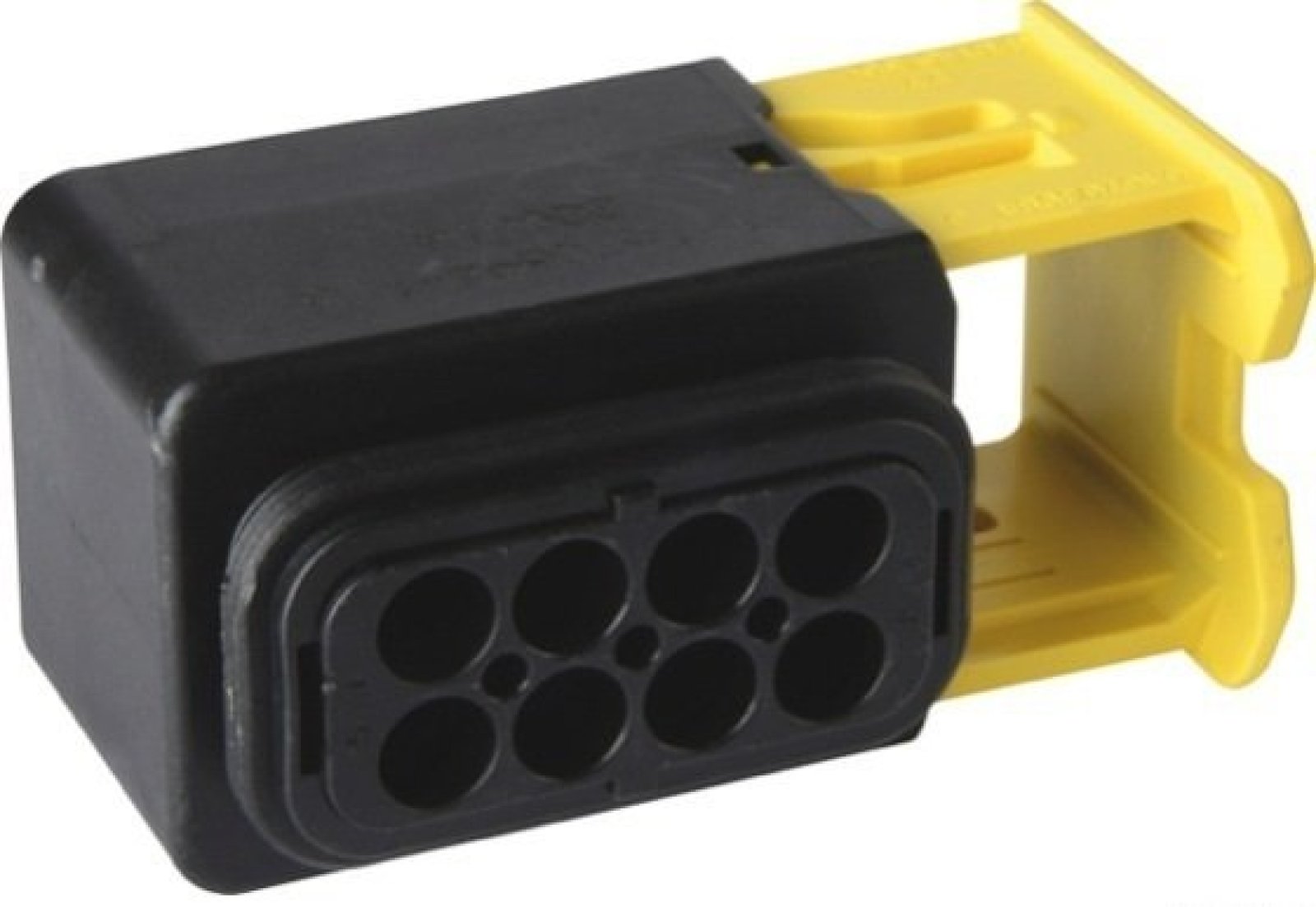

The TE Connectivity HDSCS (Heavy Duty Sealed Connector Series) connector housing with MCP 2.8mm terminals is specially designed to meet the strict requirements of the commercial vehicle industry and off-road applications. Made from durable UL94 V-0 rated thermoplastic material, this housing offers excellent resistance to mechanical stress and high vibrations.

Reliable sealing and protection

With an IP67 rating, this 8-pin connector housing provides reliable sealing against dust and water, which is essential for use in harsh conditions. When used with a backshell, the protection can be increased to IP6K9K, offering extra security in extreme environments.

Flexible configuration and compatibility

This housing is suitable for both inline and flange-mounted applications and can be used in wire-to-wire or wire-to-device configurations. The HDSCS series is available in five housing sizes with four keying options and offers arrangements ranging from 2 to 18 positions, providing flexibility for various applications.

Technical specifications

• Number of pins: 8
• Terminal width: 2.8 mm
• Voltage up to: 36 V
• Protection class: IP67 (IP6K9K with backshell)
• Operating temperature: -40°C to +140°C
• Current capacity: Up to 40 A at 20°C ambient temperature

Applications

This connector housing is ideal for use in:

• Commercial vehicles
• Off-road vehicles
• Agricultural machinery
• Construction machinery
• Marine applications

Accessories and extensions

For a complete and secure installation, various accessories are available, including:

• Backshells
• Protective caps
• Cavity plugs
• Mounting slides

These accessories provide extra protection and functionality, depending on the specific requirements of your application.

Easy installation and use

The integrated secondary locking with a poka-yoke function ensures simple and error-free installation. This design minimizes the risk of incorrect assembly and increases the reliability of electrical connections.

Quality and reliability

TE Connectivity is known for its high-quality connector solutions. The HDSCS series is no exception and offers long-lasting performance, even in the most challenging environments. By choosing this connector housing, you are investing in a product designed for durability and reliability.
