Robust construction for demanding applications

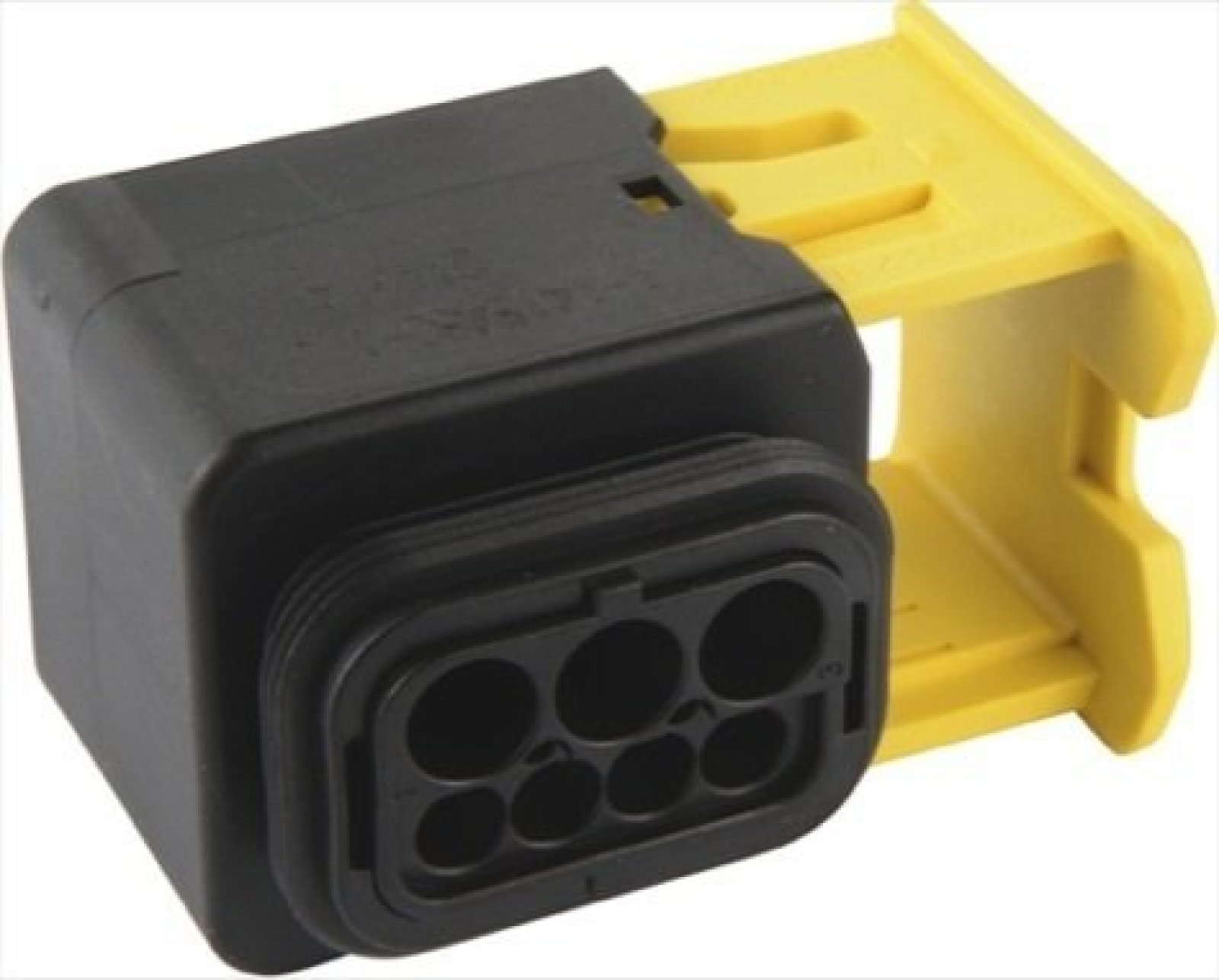

The HDSCS connector housing MCP 4x1.5 3x2.8mm 7-pin is designed to meet the strict requirements of the commercial vehicle industry and off-road applications. Made from a sturdy UL94 V-0 rated thermoplastic material, this housing offers excellent resistance to mechanical stress and high vibrations.

Reliable sealing and protection

With an IP67 rating, this connector housing is fully protected against dust and water, ensuring reliable performance in challenging environments. When used with a backshell, protection can be increased to IP6K9K, providing extra assurance against high-pressure water.

Flexible contact configuration

This 7-pin housing is suitable for:

• 4 contacts of 1.5 mm width
• 3 contacts of 2.8 mm width

This allows for combining different signal and power applications within a single connector, increasing versatility.

Integrated secondary locking

The integrated secondary locking ensures correct alignment and retention of the contacts. This mechanism produces an audible click when the contacts are fully locked, contributing to a secure and reliable connection.

Easy assembly and maintenance

Thanks to the slide-lock mechanism, connecting and disconnecting the connector is simple and safe. The polarization and keying features prevent incorrect connection, while the low insertion force increases ease of use.

Wide temperature range

This connector housing operates reliably within a temperature range of -40°C to +140°C, making it suitable for various applications in diverse environments.

Applications

The HDSCS connector housing is ideal for use in:

• Trucks
• Buses
• Off-road vehicles
• Construction machinery
• Agricultural vehicles
• Special vehicles

This versatility makes it an excellent choice for professionals seeking reliable and durable connector solutions.
