Robust and reliable connections

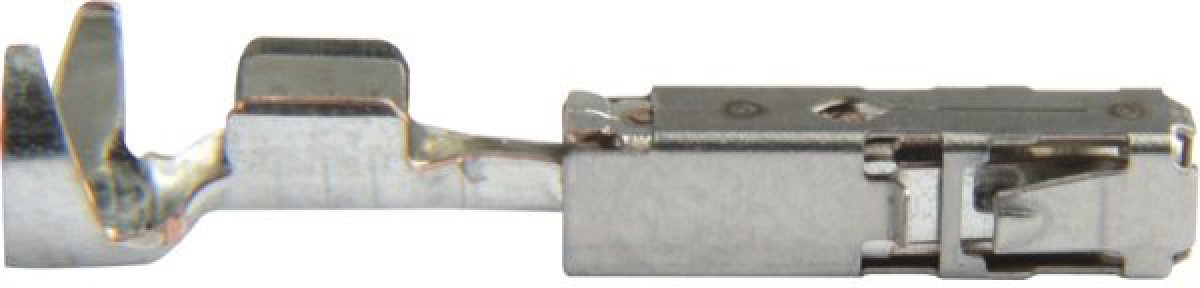

The HDSCS connector terminal 1.5 female is designed to meet the high demands of the automotive industry. With a capacity for cable cross-sections from 0.5 to 1.0 mm², this terminal provides a strong and secure connection for various electrical systems in vehicles.

Suitable for harsh conditions

This terminal is part of the Heavy Duty Sealed Connector System (HDSCS), known for its durability and resistance to extreme environmental influences. This makes the terminal particularly suitable for applications in trucks, trailers, and off-road vehicles.

Technical specifications

• Connector type: Sleeve for flat connector
• Pitch height: 0.6 mm
• Surface: Tinned
• Cross-section: 0.5 to 1.0 mm²
• Pitch width: 1.6 mm

Easy installation

Thanks to the design with secondary locking and a sliding lock, installation of this terminal is simple and reliable. The polarity and keying mechanisms prevent incorrect connections, contributing to the safety and efficiency of the electrical system.

Applications

This HDSCS female terminal is ideal for use in:

• Trucks and trailers: For reliable connections in lighting and other electrical systems.
• Off-road vehicles: Resistant to vibrations and mechanical stress in harsh environments.
• Agricultural machinery: Suitable for heavy-duty conditions and long-term use.

Benefits

• High reliability: Designed for long-lasting performance under tough conditions.
• Easy installation: Intuitive design with secondary locking and sliding mechanism.
• Versatility: Compatible with various cable cross-sections and applications.

With the HDSCS connector terminal 1.5 female 0.5-1.0 mm², you choose a high-quality solution that meets the strict requirements of the modern automotive industry.
