Reliable single wire seal for AMP Tyco connectors, suitable for 3.6 mm cavities and temperatures from -40 to 130°C.
High-quality single wire seal for AMP Tyco connectors

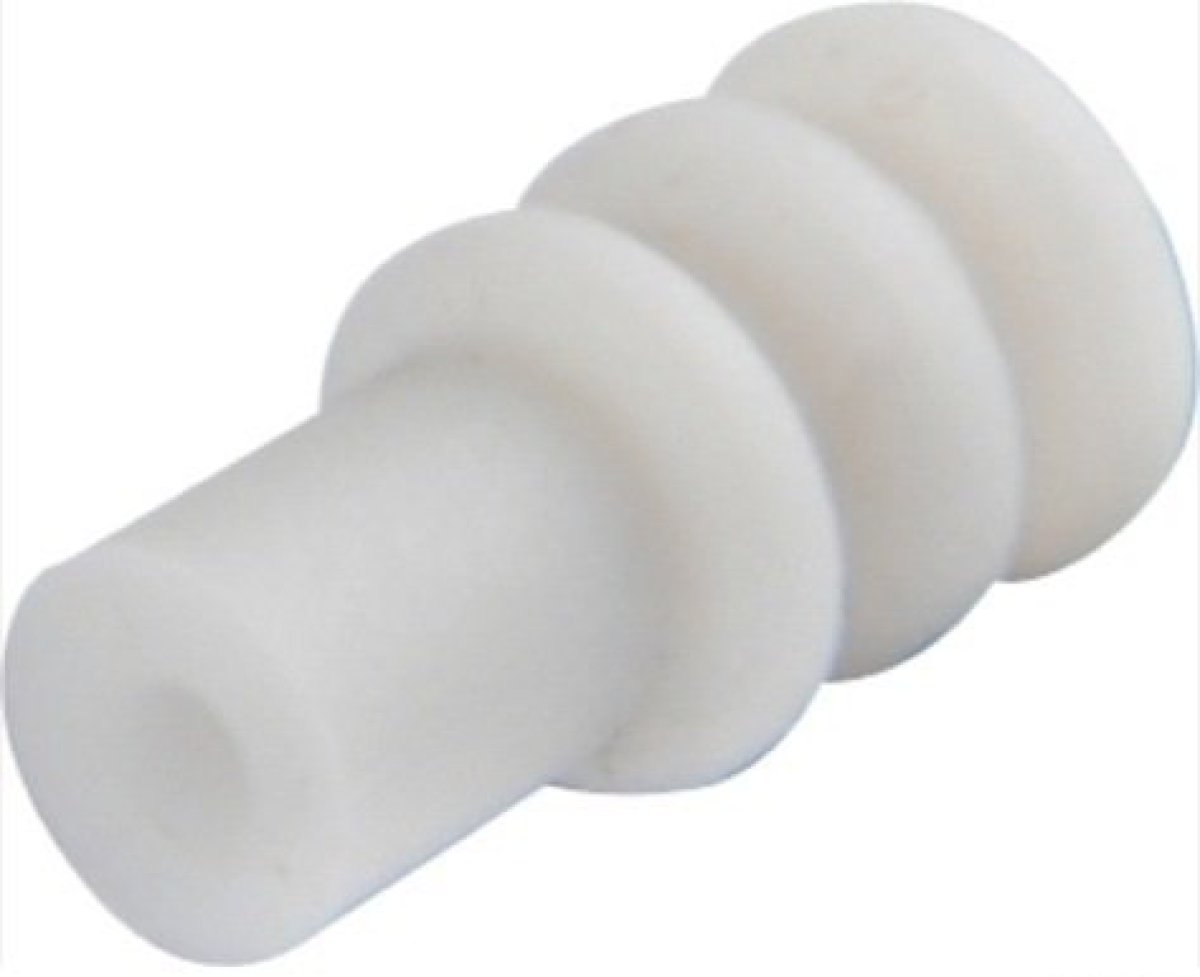

The AMP Tyco SEAL 963530-1 is a single wire seal designed for use with AMP Tyco connectors. This seal provides reliable protection of electrical connections against moisture and dirt, which is essential for the durability and safety of your electrical systems.
Suitable for various applications
This seal is compatible with different AMP Tyco connector series, including:
- HDSCS
- Micro-Timer II
- Multiple Contact Point (MCP) series
This makes the seal versatile for a wide range of electrical applications.
Technical specifications
- Cavity diameter: 3.6 mm
- Length: 7.8 mm
- Color: Grey
- Material: Silicone
- Temperature range: -40°C to +130°C
- Shore A hardness: 50
- Compatible insulation diameter: 1.9 mm
Benefits of the AMP Tyco SEAL 963530-1
- Reliable sealing: Effectively protects electrical connections against moisture and dirt.
- Wide temperature range: Operates optimally in temperatures from -40°C to +130°C.
- Durable material: Made from high-quality silicone with a Shore A hardness of 50 for long-lasting performance.
- Easy installation: The seal is provided with a lubricant for smooth assembly.
Application areas
This single wire seal is ideal for use in:
- Automotive applications
- Industrial electrical systems
- Other environments where reliable sealing of electrical connectors is required
With the AMP Tyco SEAL 963530-1, you are assured of a high-quality seal that significantly improves the lifespan and reliability of your electrical connections.
