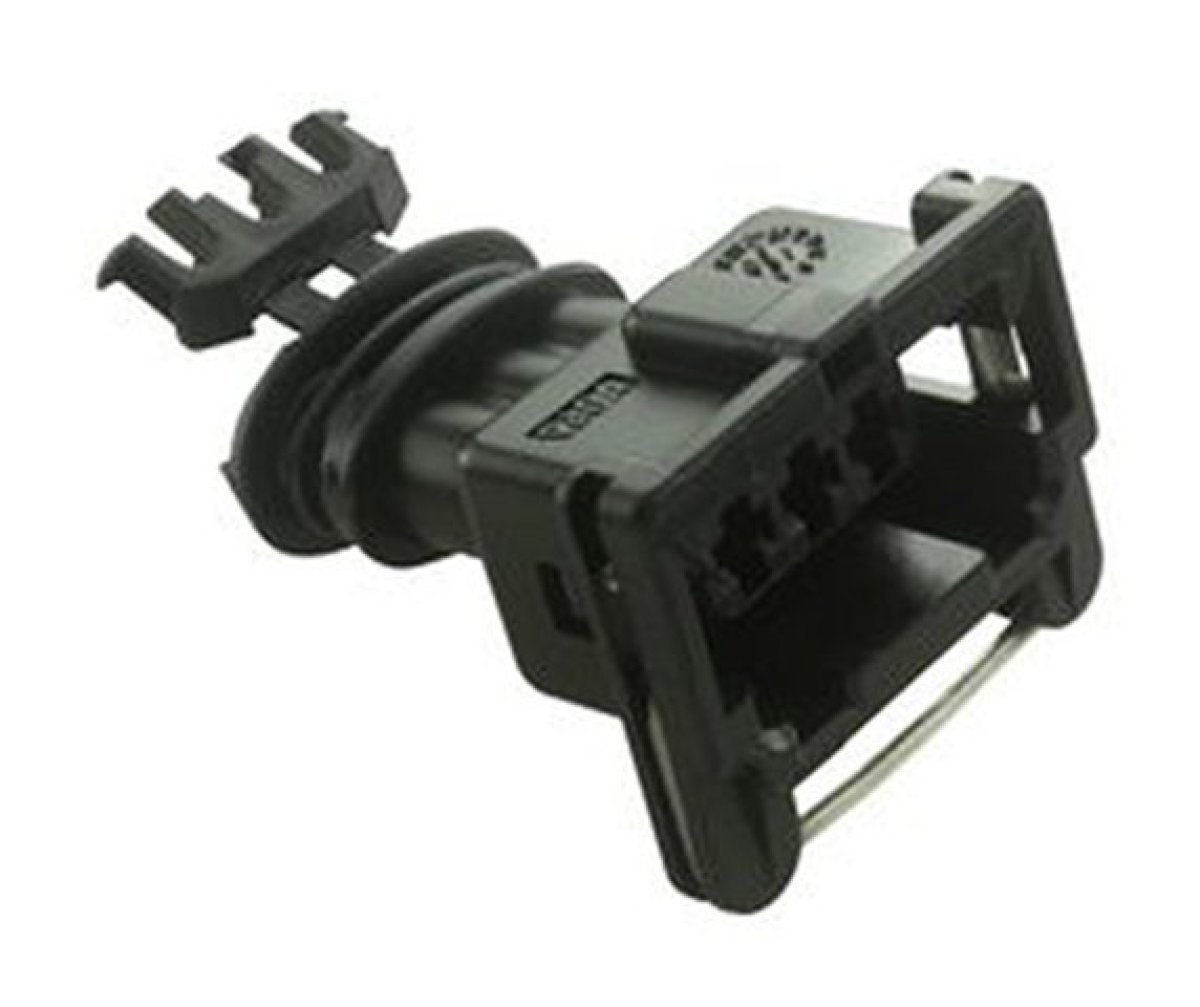

Reliable 3-way Junior Power Connector for cables from 0.5 to 2.5 mm², ideal for various automotive applications.
Overview
The Junior Power Connector 3-way is designed for safe and efficient connection of electrical circuits in cars. Suitable for cables with a cross-section of 0.5 to 2.5 mm², this connector offers a reliable solution for various applications.
Technical specifications
- Number of poles: 3
- Suitable cable cross-section: 0.5 to 2.5 mm²
- Rated current: Up to 20A
- Rated voltage: 24V DC
- Temperature range: -40°C to +130°C
- Protection class: IP54 according to IEC 529
Applications
This connector is ideal for:
- Automotive applications: Connection solutions in vehicles.
- Industrial applications: Electrical connections in machines and equipment.
- Electronic projects: Various hobby and professional projects.
Benefits
- Reliable connection: Ensures a stable and safe electrical connection.
- Easy installation: Designed for quick and easy assembly.
- Durable design: Resistant to extreme temperatures and environmental factors.
Package contents
- 10 pieces Junior Power Connector 3-way
- Corresponding cable seals and terminals
Compatibility
This connector is compatible with various cable types and sizes within the specified range, offering flexibility for different applications.
Installation instructions
- Strip the cables to the recommended length.
- Insert the cables into the terminals and crimp them securely.
- Attach the terminals into the connector housing until they click into place.
- Check the connection for firmness and correct placement.
Maintenance and care
- Regular inspection: Periodically check for wear or damage.
- Cleaning: Use a dry cloth to remove dirt and dust.
- Storage: Store in a dry place at room temperature to extend lifespan.
Frequently asked questions
Question: Is this connector suitable for outdoor use?
Answer: Yes, with an IP54 rating, this connector provides protection against dust and splashing water, making it suitable for various environments.
Question: Can I reuse this connector?
Answer: Although it is possible, it is recommended to use new terminals and seals for each new installation for optimal performance.
Question: What tools do I need for installation?
Answer: A suitable crimping tool for the terminals and a wire stripper for the cables are essential for correct installation.
Specifications
