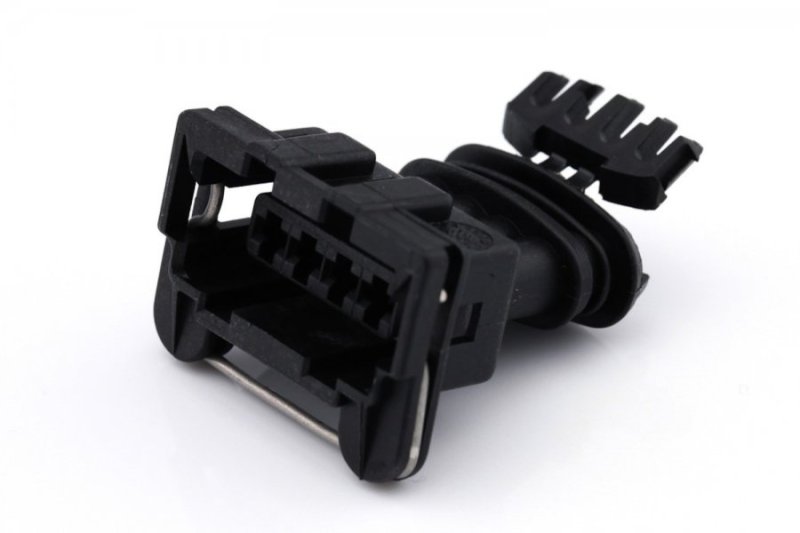

Overview of the Junior Power Connector 4-way

The Junior Power Connector 4-way is a high-quality connector designed for safe and efficient connection of electrical circuits in cars. Suitable for cables with a cross-section of 0.5 to 2.5 mm², this connector offers a reliable solution for various applications.

Technical specifications

• Number of poles: 4
• Suitable cable cross-section: 0.5 - 2.5 mm²
• Rated current: Up to 20A
• Rated voltage: 24V DC
• Temperature range: -40°C to +130°C
• Protection class: IP54 according to IEC 529
• Pitch distance: 5 mm

Applications

This connector is ideal for use in:

• Automotive sector: For connecting electrical components in vehicles.
• Industrial applications: Where reliable electrical connections are required.
• Electronic projects: For hobbyists and professionals who need safe and efficient connections.

Advantages of the Junior Power Connector 4-way

• Reliability: Designed for a stable and secure connection.
• Flexibility: Suitable for a wide range of cable cross-sections.
• Durability: Resistant to extreme temperatures and environmental conditions.
• Easy installation: Thanks to the secondary locking system and clear markings.

Compatibility and accessories

For optimal performance, it is recommended to use the following accessories:

• Seals: Available in various sizes for a watertight seal.
• Crimp contacts: For a firm and reliable electrical connection.
• Tools: Specially designed crimping pliers and removal tools for easy installation and maintenance.

Installation instructions

1. Preparation: Strip the cables to the recommended length.
2. Crimping: Attach the crimp contacts to the cables using the appropriate tool.
3. Placement: Slide the contacts into the connector housing until they click into place.
4. Locking: Ensure that the secondary locking system is correctly engaged.
5. Check: Test the connection to ensure it is secure and functional.

With the Junior Power Connector 4-way, you are assured of a reliable and durable electrical connection for various applications.
