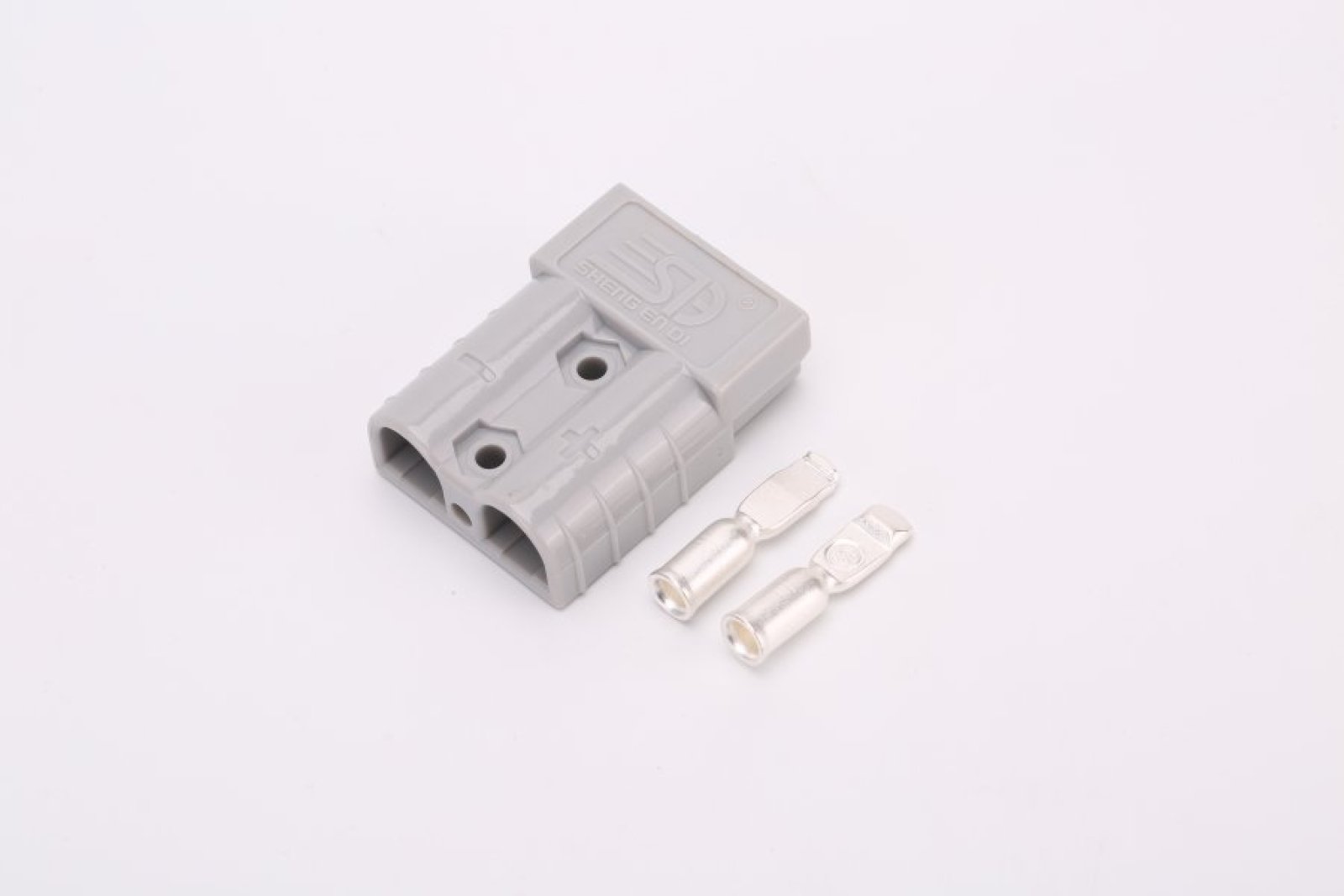

Reliable power connections with the SB120 power connector

The grey 2-pole SB120 power connector is designed for applications up to 120 amperes and provides safe and efficient power transfer. Thanks to its innovative design, two identical connectors fit seamlessly together, eliminating the need for separate mating plugs. (accukabels.shop)

Suitable for various cable thicknesses

This connector is compatible with cables up to 35 mm², offering flexibility for different installations. The contacts can be either soldered or crimped, depending on your preference and available tools. (accukabels.shop)

Durable and versatile design

With a voltage range up to 600 volts and a maximum current of 120 amperes, the SB120 connector is suitable for a wide range of applications, from electric vehicles to industrial installations. The robust design ensures a long service life and reliable performance. (accukabels.shop)

Easy installation and use

The connector has dimensions of 63 mm length, 46 mm width, and 21 mm thickness, providing a compact and space-saving solution. The weight of 63 grams per piece makes handling easy during installation. (accukabels.shop)

Key specifications at a glance

• Type : SB120, 2-pole
• Color : Grey
• Voltage : 0 to 600 volts
• Current : Maximum 120 amperes
• Cable thickness : Up to 35 mm²
• Contacts : Suitable for soldering or crimping
• Dimensions : 63 x 46 x 21 mm
• Weight : 63 grams per piece

Applications in various sectors

The SB120 connector is widely used in electric vehicles, shipping, and industrial applications. It provides a safe and efficient connection between batteries, chargers, and motors, which is essential for reliable power transfer.
