Reliable power connection for heavy-duty applications

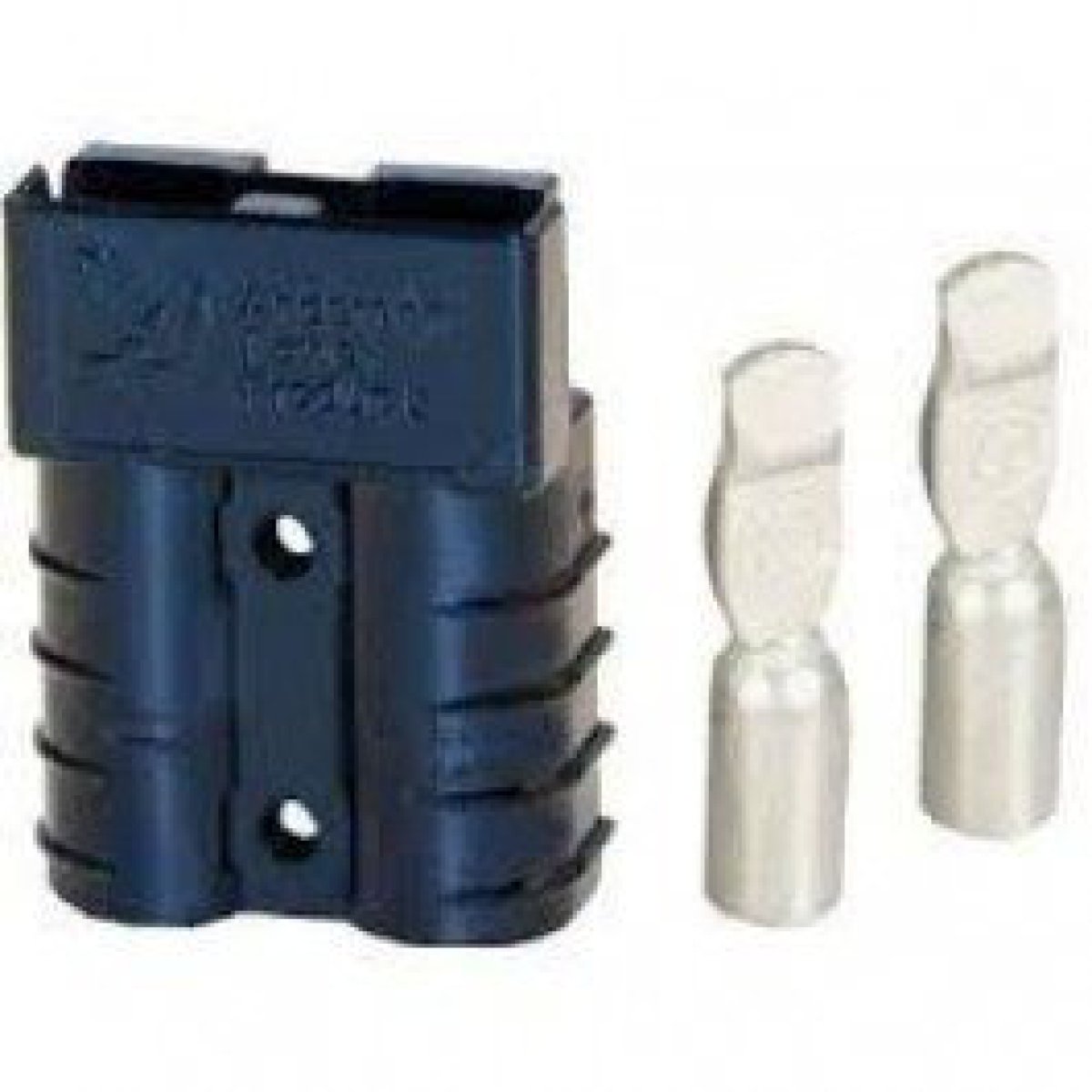

The 2-pole SB power connector is designed for applications up to 50 amperes and 600 volts, suitable for both direct current (DC) and alternating current (AC). This connector is ideal for connecting charging equipment to vehicles or machines, offering safe and efficient power transfer.

Suitable for 16mm² cables

This connector is compatible with cables up to 16mm², ensuring a solid and reliable connection. The silver-plated contacts can be either soldered or crimped with a cable crimping tool, depending on your preference and available tools.

Unisex design for easy coupling

The SB connectors are gender-neutral, meaning there is no distinction between male and female plugs. Two identical black plugs can be easily connected to each other, simplifying the installation process and reducing the number of required components.

Color coding for voltage differentiation

The different colors of the SB 50 plugs are intended to indicate different voltage levels and prevent unwanted connections. The black variant is specifically intended for 80V applications. It is important to use plugs of the same color to avoid compatibility issues.

• Yellow: 12V
• Orange: 18V
• Red: 24V
• Grey: 36V
• Blue: 48V
• Green: 72V
• Black: 80V
• Brown: 96V

Compact and robust design

With dimensions of 47.6 x 36.5 x 15.9 mm, this connector is compact and easy to integrate into various installations. The robust design guarantees a long lifespan, even under harsh conditions.

Versatile applications

This connector is often used in various sectors, including:

• Connecting charging equipment to vehicles and machines
• Connections in electric vehicles
• Industrial applications where high current is required

Easy installation

The installation of this connector is simple and can be done in two ways:

• Crimping : Use a suitable cable crimping tool to firmly attach the contacts to the cable.
• Soldering : Heat the contact and the cable, fill the contact with solder and insert the cable into the molten solder for a solid connection.

Specifications

• Type : SB / S 50
• Color : Black
• Dimensions : 47.6 x 36.5 x 15.9 mm
• Maximum current : 50A
• Maximum voltage : 600V
• Number of poles : 2
• Suitable for : DC and AC applications

With this 2-pole SB power connector, you are assured of a reliable and efficient power connection for your heavy-duty applications.
