Powerful and versatile power connector

The Power connector SB 2-pole 50A is designed to provide a reliable and efficient power connection for various electrical applications. With a maximum current capacity of 50 amperes and suitable for cables up to 6 mm², this connector is ideal for both direct current (DC) and alternating current (AC) applications.

Robust construction and dimensions

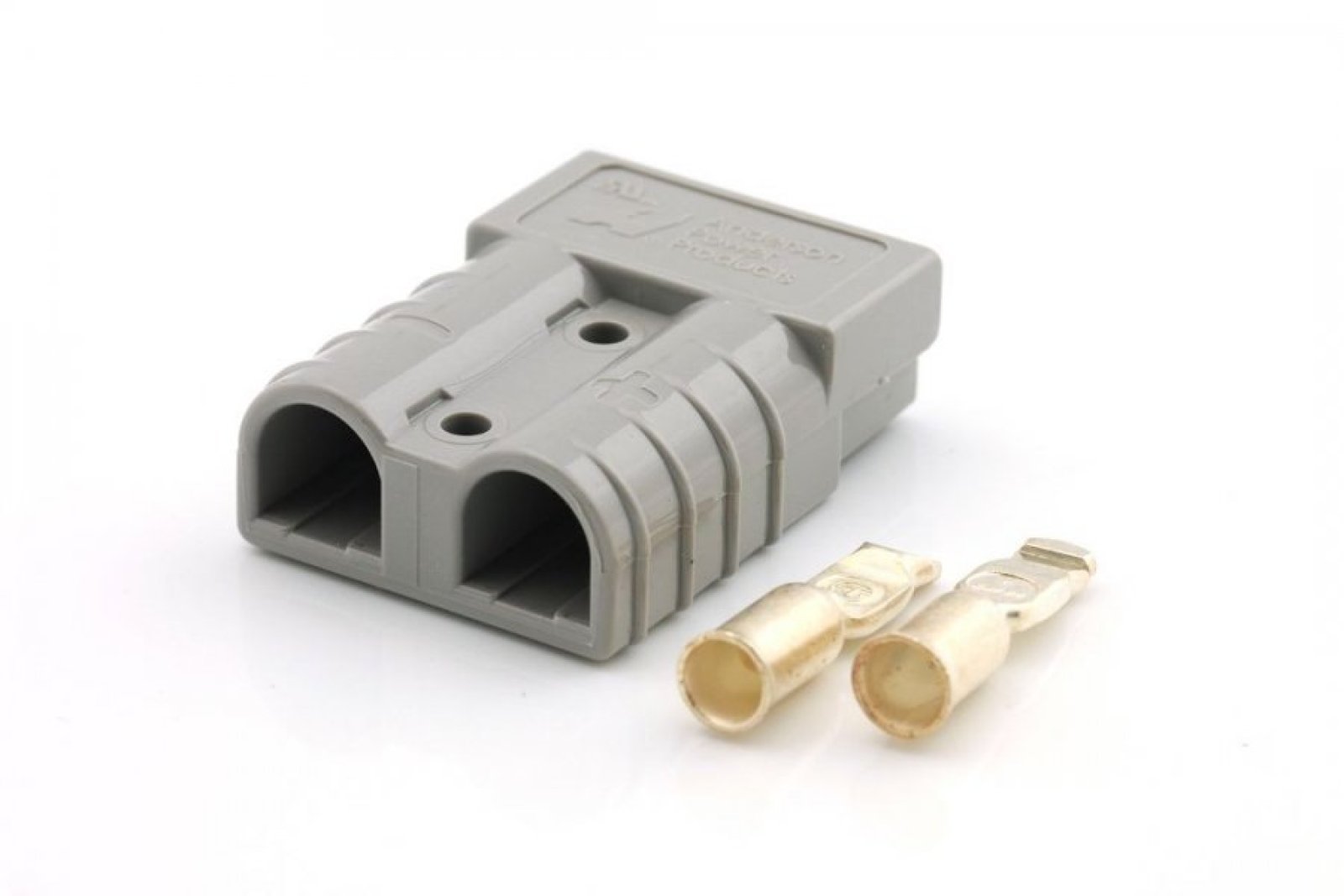

This grey connector features a sturdy housing with the following dimensions:

• Length : 48 mm
• Width : 37 mm
• Height : 16 mm

The compact size makes it easy to integrate the connector into different installations without taking up much space.

Easy installation

The connector comes with two silver-plated terminals that are easy to attach to the cables. You can secure the contacts with a crimping tool or by soldering, depending on your preference and available tools. This ensures a strong and durable connection that can withstand intensive use.

Color coding for safe connection

The grey color of this connector is not only aesthetic but also serves as a visual indication for specific voltage levels. Within the SB series, different colors are available, each with a unique key to prevent incorrect connections. Connectors of different colors do not fit together, helping to avoid wrong connections.

Applications and compatibility

This 2-pole 50A connector is suitable for a wide range of applications, including:

• Charging systems : Connecting charging equipment to vehicles or machines.
• Energy storage : Connections in battery and accumulator packs.
• Industrial equipment : Power supply for various machines and devices.

Thanks to the genderless design, two identical connectors can be easily connected to each other, simplifying the installation process and eliminating the need for different male and female connectors.

Technical specifications

• Maximum current capacity : 50A
• Maximum voltage : 600V
• Suitable cable thickness : Up to 6 mm²
• Number of poles : 2
• Color : Grey
• Dimensions :
• Length: 48 mm
• Width: 37 mm
• Height: 16 mm

Benefits at a glance

• High current capacity : Suitable for applications up to 50A.
• Flexible installation : Option to crimp or solder the contacts.
• Safe color coding : Prevents incorrect connections through unique key per color.
• Compact design : Easy to integrate into various systems without taking up much space.

With the Power connector SB 2-pole 50A, you choose a reliable and efficient solution for your power connections, suitable for various applications and easy to install.
