Reliable power connections for various applications

The Anderson SB120 120A grey power connector with handle is designed to provide an efficient and safe power connection for a wide range of applications. Thanks to its robust construction and user-friendly design, this connector is ideal for both industrial and automotive uses.

Features and specifications

• Current capacity: Suitable for a maximum current up to 240 amps, depending on the wire gauge and configuration used.
• Wire gauge compatibility: Supports wire sizes from 10 AWG (5.3 mm²) to 1 AWG (42.4 mm²), offering flexibility during installation.
• Housing: Made of high-quality polycarbonate (PC) for durability and reliability.
• Color coding: The grey housing acts as a mechanical key to prevent incorrect connections and to identify different circuits.
• Operating temperature: Suitable for use in temperatures ranging from -20°C to 105°C, with a chemically resistant option extending the range to -40°C.
• Protection rating: Offers an IP64 rating, providing protection against dust and splashing water.

Applications

The SB120 connector is versatile for use in various sectors, including:

• Uninterruptible power supplies (UPS): Ensures reliable power connections in critical systems.
• Forklifts and electric vehicles: Provides efficient power transfer for charging and drive systems.
• Medical equipment: Suitable for applications where reliable power connections are essential.
• Electric tools and garden equipment: Ideal for connecting high-powered devices.

Installation and ease of use

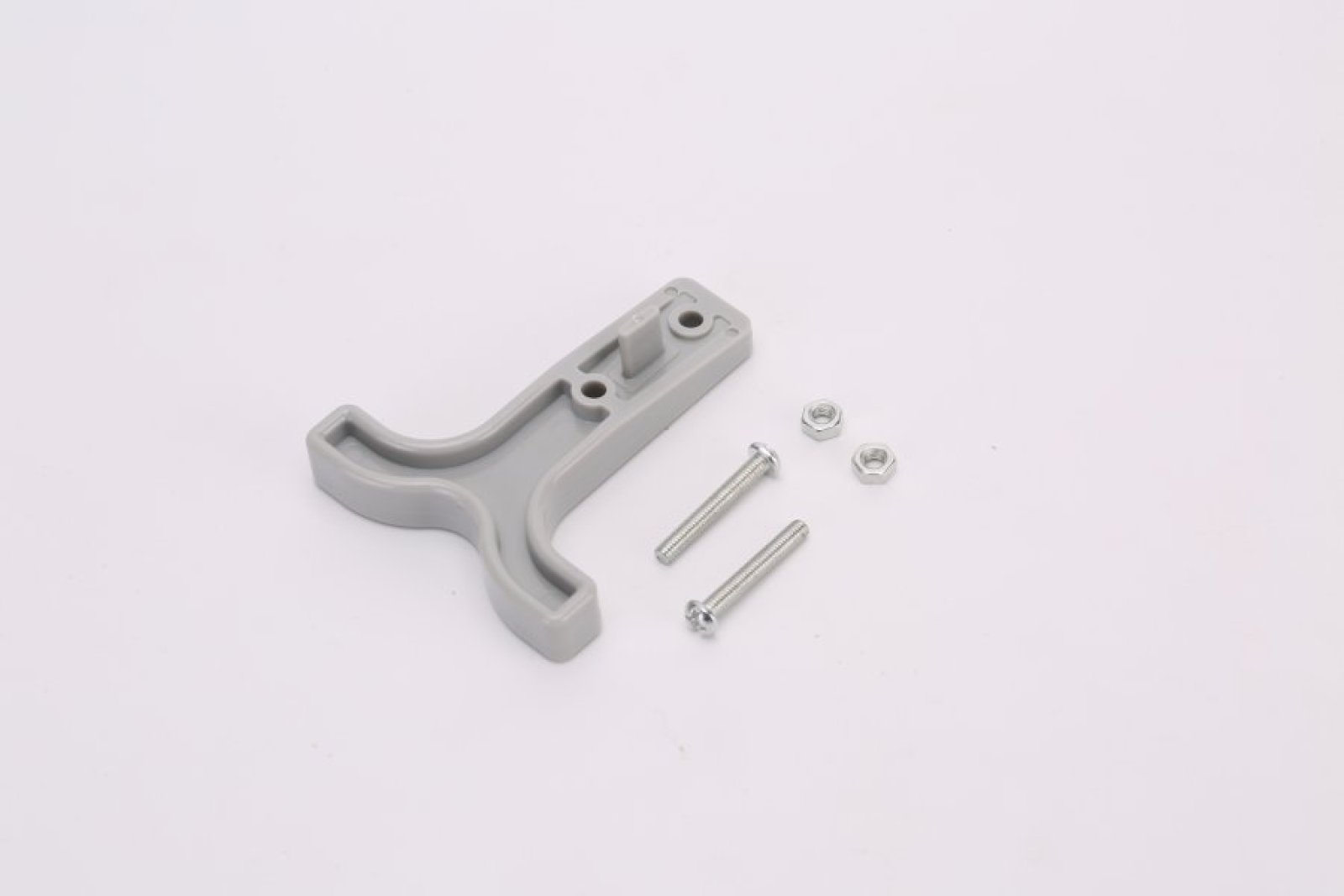

The gender-neutral construction of the SB120 connector allows identical connectors to be connected to each other, simplifying installation and reducing the number of required parts. The handle provides an ergonomic grip, making connecting and disconnecting easier. Additionally, the connectors feature panel-mount grooves, allowing them to be easily attached to panels using mounting clamps.

Safety and reliability

The color-coded and mechanically keyed housings help prevent incorrect connections and increase safety during use. The robust construction and high-quality materials ensure a long lifespan and reliable performance under various conditions.

Summary of benefits

• High current capacity up to 240A.
• Supports various wire sizes for flexible installation.
• Durable polycarbonate housing with color coding for safety.
• Suitable for a wide range of applications, from industrial to automotive.
• Easy installation thanks to gender-neutral design and handle.

With the Anderson SB120 120A grey power connector with handle, you choose a reliable and efficient solution for your power connection needs.
